Limit Switches
Omron

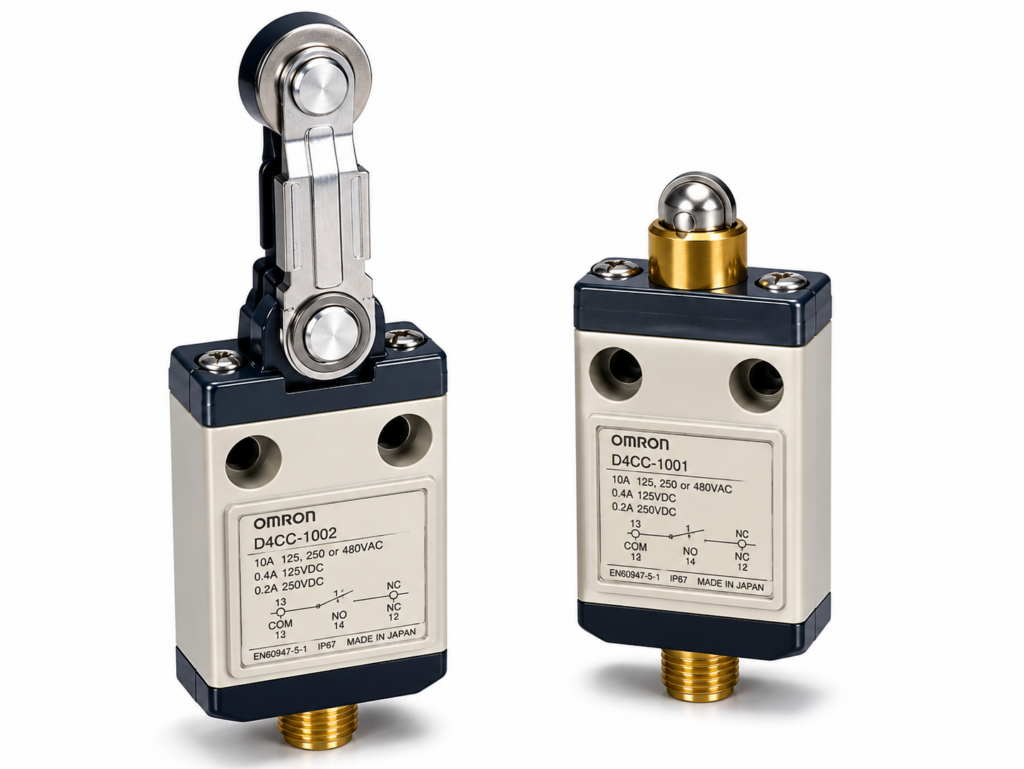

[OMRON] — D4CC Miniature Limit Switch (16mm Thin, Connector, 1A/125VAC/30VDC, w/wo Indicator)
Family ID: OMRON-D4CC
Many Models Including Roller Lever Switches are Only 16-mm Thick with Connector
35 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| D4CC-1001 | D4CC Pin plunger 1A/125VAC Ind:None | OMRON | Type: Miniature Limit Switch | Actuator: Pin plunger | Rating: 1A/125VAC | Width: 16 mm | Connection: M12 connector | Operation Indicator: None | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-2001 | D4CC Pin plunger 1A/125VAC Ind:LED | OMRON | Type: Miniature Limit Switch | Actuator: Pin plunger | Rating: 1A/125VAC | Width: 16 mm | Connection: M12 connector | Operation Indicator: LED | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-3001 | D4CC Pin plunger 1A/30VDC Ind:None | OMRON | Type: Miniature Limit Switch | Actuator: Pin plunger | Rating: 1A/30VDC | Width: 16 mm | Connection: M12 connector | Operation Indicator: None | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-4001 | D4CC Pin plunger 1A/30VDC Ind:LED | OMRON | Type: Miniature Limit Switch | Actuator: Pin plunger | Rating: 1A/30VDC | Width: 16 mm | Connection: M12 connector | Operation Indicator: LED | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-1002 | D4CC Roller plunger 1A/125VAC Ind:None | OMRON | Type: Miniature Limit Switch | Actuator: Roller plunger | Rating: 1A/125VAC | Width: 16 mm | Connection: M12 connector | Operation Indicator: None | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-2002 | D4CC Roller plunger 1A/125VAC Ind:LED | OMRON | Type: Miniature Limit Switch | Actuator: Roller plunger | Rating: 1A/125VAC | Width: 16 mm | Connection: M12 connector | Operation Indicator: LED | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-3002 | D4CC Roller plunger 1A/30VDC Ind:None | OMRON | Type: Miniature Limit Switch | Actuator: Roller plunger | Rating: 1A/30VDC | Width: 16 mm | Connection: M12 connector | Operation Indicator: None | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-4002 | D4CC Roller plunger 1A/30VDC Ind:LED | OMRON | Type: Miniature Limit Switch | Actuator: Roller plunger | Rating: 1A/30VDC | Width: 16 mm | Connection: M12 connector | Operation Indicator: LED | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-1003 | D4CC Crossroller plunger 1A/125VAC Ind:None | OMRON | Type: Miniature Limit Switch | Actuator: Crossroller plunger | Rating: 1A/125VAC | Width: 16 mm | Connection: M12 connector | Operation Indicator: None | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-2003 | D4CC Crossroller plunger 1A/125VAC Ind:LED | OMRON | Type: Miniature Limit Switch | Actuator: Crossroller plunger | Rating: 1A/125VAC | Width: 16 mm | Connection: M12 connector | Operation Indicator: LED | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-3003 | D4CC Crossroller plunger 1A/30VDC Ind:None | OMRON | Type: Miniature Limit Switch | Actuator: Crossroller plunger | Rating: 1A/30VDC | Width: 16 mm | Connection: M12 connector | Operation Indicator: None | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-4003 | D4CC Crossroller plunger 1A/30VDC Ind:LED | OMRON | Type: Miniature Limit Switch | Actuator: Crossroller plunger | Rating: 1A/30VDC | Width: 16 mm | Connection: M12 connector | Operation Indicator: LED | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-1024 | D4CC High-sensitivity roller lever 1A/125VAC Ind:None | OMRON | Type: Miniature Limit Switch | Actuator: High-sensitivity roller lever | Rating: 1A/125VAC | Width: 16 mm | Connection: M12 connector | Operation Indicator: None | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-2024 | D4CC High-sensitivity roller lever 1A/125VAC Ind:LED | OMRON | Type: Miniature Limit Switch | Actuator: High-sensitivity roller lever | Rating: 1A/125VAC | Width: 16 mm | Connection: M12 connector | Operation Indicator: LED | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-3024 | D4CC High-sensitivity roller lever 1A/30VDC Ind:None | OMRON | Type: Miniature Limit Switch | Actuator: High-sensitivity roller lever | Rating: 1A/30VDC | Width: 16 mm | Connection: M12 connector | Operation Indicator: None | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-4024 | D4CC High-sensitivity roller lever 1A/30VDC Ind:LED | OMRON | Type: Miniature Limit Switch | Actuator: High-sensitivity roller lever | Rating: 1A/30VDC | Width: 16 mm | Connection: M12 connector | Operation Indicator: LED | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-1031 | D4CC Sealed pin plunger 1A/125VAC Ind:None | OMRON | Type: Miniature Limit Switch | Actuator: Sealed pin plunger | Rating: 1A/125VAC | Width: 16 mm | Connection: M12 connector | Operation Indicator: None | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-2031 | D4CC Sealed pin plunger 1A/125VAC Ind:LED | OMRON | Type: Miniature Limit Switch | Actuator: Sealed pin plunger | Rating: 1A/125VAC | Width: 16 mm | Connection: M12 connector | Operation Indicator: LED | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-3031 | D4CC Sealed pin plunger 1A/30VDC Ind:None | OMRON | Type: Miniature Limit Switch | Actuator: Sealed pin plunger | Rating: 1A/30VDC | Width: 16 mm | Connection: M12 connector | Operation Indicator: None | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-4031 | D4CC Sealed pin plunger 1A/30VDC Ind:LED | OMRON | Type: Miniature Limit Switch | Actuator: Sealed pin plunger | Rating: 1A/30VDC | Width: 16 mm | Connection: M12 connector | Operation Indicator: LED | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-1032 | D4CC Sealed roller plunger 1A/125VAC Ind:None | OMRON | Type: Miniature Limit Switch | Actuator: Sealed roller plunger | Rating: 1A/125VAC | Width: 16 mm | Connection: M12 connector | Operation Indicator: None | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-2032 | D4CC Sealed roller plunger 1A/125VAC Ind:LED | OMRON | Type: Miniature Limit Switch | Actuator: Sealed roller plunger | Rating: 1A/125VAC | Width: 16 mm | Connection: M12 connector | Operation Indicator: LED | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-3032 | D4CC Sealed roller plunger 1A/30VDC Ind:None | OMRON | Type: Miniature Limit Switch | Actuator: Sealed roller plunger | Rating: 1A/30VDC | Width: 16 mm | Connection: M12 connector | Operation Indicator: None | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-4032 | D4CC Sealed roller plunger 1A/30VDC Ind:LED | OMRON | Type: Miniature Limit Switch | Actuator: Sealed roller plunger | Rating: 1A/30VDC | Width: 16 mm | Connection: M12 connector | Operation Indicator: LED | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-1033 | D4CC Sealed crossroller plunger 1A/125VAC Ind:None | OMRON | Type: Miniature Limit Switch | Actuator: Sealed crossroller plunger | Rating: 1A/125VAC | Width: 16 mm | Connection: M12 connector | Operation Indicator: None | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-3033 | D4CC Sealed crossroller plunger 1A/30VDC Ind:None | OMRON | Type: Miniature Limit Switch | Actuator: Sealed crossroller plunger | Rating: 1A/30VDC | Width: 16 mm | Connection: M12 connector | Operation Indicator: None | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-4033 | D4CC Sealed crossroller plunger 1A/30VDC Ind:LED | OMRON | Type: Miniature Limit Switch | Actuator: Sealed crossroller plunger | Rating: 1A/30VDC | Width: 16 mm | Connection: M12 connector | Operation Indicator: LED | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-1050 | D4CC Plastic rod 1A/125VAC Ind:None | OMRON | Type: Miniature Limit Switch | Actuator: Plastic rod | Rating: 1A/125VAC | Width: 16 mm | Connection: M12 connector | Operation Indicator: None | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-2050 | D4CC Plastic rod 1A/125VAC Ind:LED | OMRON | Type: Miniature Limit Switch | Actuator: Plastic rod | Rating: 1A/125VAC | Width: 16 mm | Connection: M12 connector | Operation Indicator: LED | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-3050 | D4CC Plastic rod 1A/30VDC Ind:None | OMRON | Type: Miniature Limit Switch | Actuator: Plastic rod | Rating: 1A/30VDC | Width: 16 mm | Connection: M12 connector | Operation Indicator: None | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-4050 | D4CC Plastic rod 1A/30VDC Ind:LED | OMRON | Type: Miniature Limit Switch | Actuator: Plastic rod | Rating: 1A/30VDC | Width: 16 mm | Connection: M12 connector | Operation Indicator: LED | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-1060 | D4CC Center roller lever 1A/125VAC Ind:None | OMRON | Type: Miniature Limit Switch | Actuator: Center roller lever | Rating: 1A/125VAC | Width: 16 mm | Connection: M12 connector | Operation Indicator: None | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-2060 | D4CC Center roller lever 1A/125VAC Ind:LED | OMRON | Type: Miniature Limit Switch | Actuator: Center roller lever | Rating: 1A/125VAC | Width: 16 mm | Connection: M12 connector | Operation Indicator: LED | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-3060 | D4CC Center roller lever 1A/30VDC Ind:None | OMRON | Type: Miniature Limit Switch | Actuator: Center roller lever | Rating: 1A/30VDC | Width: 16 mm | Connection: M12 connector | Operation Indicator: None | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series | ||
| D4CC-4060 | D4CC Center roller lever 1A/30VDC Ind:LED | OMRON | Type: Miniature Limit Switch | Actuator: Center roller lever | Rating: 1A/30VDC | Width: 16 mm | Connection: M12 connector | Operation Indicator: LED | Note: M12 connector (XS2F cable sold separately); suffix codes differ from D4C series |
