Proximity
Omron

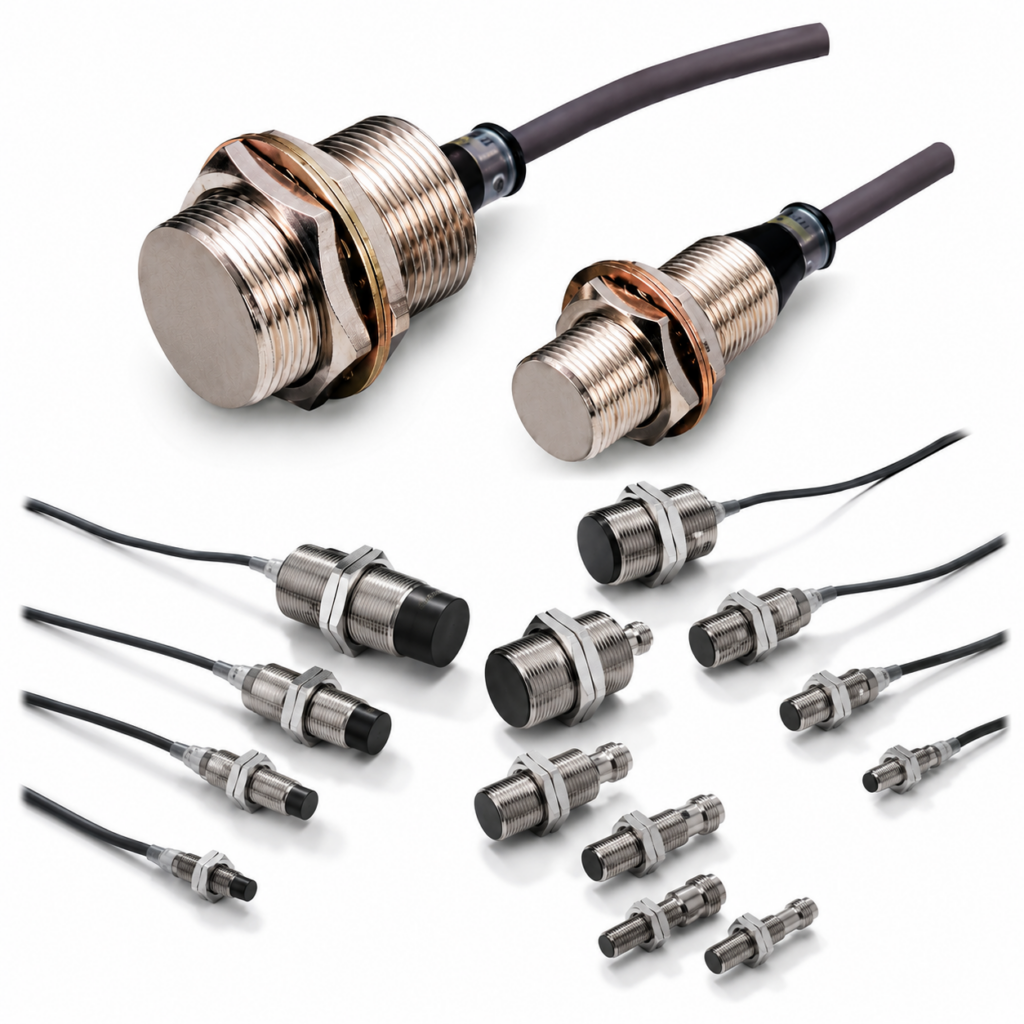

[OMRON] — E2A M18 Cylindrical Proximity Sensor (Shielded 8mm / Unshielded 16mm, Brass, PNP/NPN)
Family ID: OMRON-E2A-M18
OMRON E2A Series M18 cylindrical proximity sensor. Brass body. Shielded 8mm and Unshielded 16mm. Short and Long barrel. PNP and NPN. NO and NC. Pre-wired 2m and M12 connector.
32 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E2A-M18KS08-WP-B1 2M | E2A M18 Shielded 8 mm Brass Short (39mm) PNP NO Pre-wired 2 m | OMRON | Size: M18 | Shield: Shielded | Sensing Distance: 8 mm | Body Material: Brass | Thread/Barrel: Short (39mm) | Connection: Pre-wired 2 m | Output: PNP | Operation Mode: NO | ||
| E2A-M18KS08-WP-B2 2M | E2A M18 Shielded 8 mm Brass Short (39mm) PNP NC Pre-wired 2 m | OMRON | Size: M18 | Shield: Shielded | Sensing Distance: 8 mm | Body Material: Brass | Thread/Barrel: Short (39mm) | Connection: Pre-wired 2 m | Output: PNP | Operation Mode: NC | ||
| E2A-M18KS08-WP-C1 2M | E2A M18 Shielded 8 mm Brass Short (39mm) NPN NO Pre-wired 2 m | OMRON | Size: M18 | Shield: Shielded | Sensing Distance: 8 mm | Body Material: Brass | Thread/Barrel: Short (39mm) | Connection: Pre-wired 2 m | Output: NPN | Operation Mode: NO | ||
| E2A-M18KS08-WP-C2 2M | E2A M18 Shielded 8 mm Brass Short (39mm) NPN NC Pre-wired 2 m | OMRON | Size: M18 | Shield: Shielded | Sensing Distance: 8 mm | Body Material: Brass | Thread/Barrel: Short (39mm) | Connection: Pre-wired 2 m | Output: NPN | Operation Mode: NC | ||
| E2A-M18KS08-M1-B1 | E2A M18 Shielded 8 mm Brass Short (39mm) PNP NO M12 Connector | OMRON | Size: M18 | Shield: Shielded | Sensing Distance: 8 mm | Body Material: Brass | Thread/Barrel: Short (39mm) | Connection: M12 Connector | Output: PNP | Operation Mode: NO | ||
| E2A-M18KS08-M1-B2 | E2A M18 Shielded 8 mm Brass Short (39mm) PNP NC M12 Connector | OMRON | Size: M18 | Shield: Shielded | Sensing Distance: 8 mm | Body Material: Brass | Thread/Barrel: Short (39mm) | Connection: M12 Connector | Output: PNP | Operation Mode: NC | ||
| E2A-M18KS08-M1-C1 | E2A M18 Shielded 8 mm Brass Short (39mm) NPN NO M12 Connector | OMRON | Size: M18 | Shield: Shielded | Sensing Distance: 8 mm | Body Material: Brass | Thread/Barrel: Short (39mm) | Connection: M12 Connector | Output: NPN | Operation Mode: NO | ||
| E2A-M18KS08-M1-C2 | E2A M18 Shielded 8 mm Brass Short (39mm) NPN NC M12 Connector | OMRON | Size: M18 | Shield: Shielded | Sensing Distance: 8 mm | Body Material: Brass | Thread/Barrel: Short (39mm) | Connection: M12 Connector | Output: NPN | Operation Mode: NC | ||
| E2A-M18LS08-WP-B1 2M | E2A M18 Shielded 8 mm Brass Long (61mm) PNP NO Pre-wired 2 m | OMRON | Size: M18 | Shield: Shielded | Sensing Distance: 8 mm | Body Material: Brass | Thread/Barrel: Long (61mm) | Connection: Pre-wired 2 m | Output: PNP | Operation Mode: NO | ||
| E2A-M18LS08-WP-B2 2M | E2A M18 Shielded 8 mm Brass Long (61mm) PNP NC Pre-wired 2 m | OMRON | Size: M18 | Shield: Shielded | Sensing Distance: 8 mm | Body Material: Brass | Thread/Barrel: Long (61mm) | Connection: Pre-wired 2 m | Output: PNP | Operation Mode: NC | ||
| E2A-M18LS08-WP-C1 2M | E2A M18 Shielded 8 mm Brass Long (61mm) NPN NO Pre-wired 2 m | OMRON | Size: M18 | Shield: Shielded | Sensing Distance: 8 mm | Body Material: Brass | Thread/Barrel: Long (61mm) | Connection: Pre-wired 2 m | Output: NPN | Operation Mode: NO | ||
| E2A-M18LS08-WP-C2 2M | E2A M18 Shielded 8 mm Brass Long (61mm) NPN NC Pre-wired 2 m | OMRON | Size: M18 | Shield: Shielded | Sensing Distance: 8 mm | Body Material: Brass | Thread/Barrel: Long (61mm) | Connection: Pre-wired 2 m | Output: NPN | Operation Mode: NC | ||
| E2A-M18LS08-M1-B1 | E2A M18 Shielded 8 mm Brass Long (61mm) PNP NO M12 Connector | OMRON | Size: M18 | Shield: Shielded | Sensing Distance: 8 mm | Body Material: Brass | Thread/Barrel: Long (61mm) | Connection: M12 Connector | Output: PNP | Operation Mode: NO | ||
| E2A-M18LS08-M1-B2 | E2A M18 Shielded 8 mm Brass Long (61mm) PNP NC M12 Connector | OMRON | Size: M18 | Shield: Shielded | Sensing Distance: 8 mm | Body Material: Brass | Thread/Barrel: Long (61mm) | Connection: M12 Connector | Output: PNP | Operation Mode: NC | ||
| E2A-M18LS08-M1-C1 | E2A M18 Shielded 8 mm Brass Long (61mm) NPN NO M12 Connector | OMRON | Size: M18 | Shield: Shielded | Sensing Distance: 8 mm | Body Material: Brass | Thread/Barrel: Long (61mm) | Connection: M12 Connector | Output: NPN | Operation Mode: NO | ||
| E2A-M18LS08-M1-C2 | E2A M18 Shielded 8 mm Brass Long (61mm) NPN NC M12 Connector | OMRON | Size: M18 | Shield: Shielded | Sensing Distance: 8 mm | Body Material: Brass | Thread/Barrel: Long (61mm) | Connection: M12 Connector | Output: NPN | Operation Mode: NC | ||
| E2A-M18KN16-WP-B1 2M | E2A M18 Unshielded 16 mm Brass Short (39mm) PNP NO Pre-wired 2 m | OMRON | Size: M18 | Shield: Unshielded | Sensing Distance: 16 mm | Body Material: Brass | Thread/Barrel: Short (39mm) | Connection: Pre-wired 2 m | Output: PNP | Operation Mode: NO | ||
| E2A-M18KN16-WP-B2 2M | E2A M18 Unshielded 16 mm Brass Short (39mm) PNP NC Pre-wired 2 m | OMRON | Size: M18 | Shield: Unshielded | Sensing Distance: 16 mm | Body Material: Brass | Thread/Barrel: Short (39mm) | Connection: Pre-wired 2 m | Output: PNP | Operation Mode: NC | ||
| E2A-M18KN16-WP-C1 2M | E2A M18 Unshielded 16 mm Brass Short (39mm) NPN NO Pre-wired 2 m | OMRON | Size: M18 | Shield: Unshielded | Sensing Distance: 16 mm | Body Material: Brass | Thread/Barrel: Short (39mm) | Connection: Pre-wired 2 m | Output: NPN | Operation Mode: NO | ||
| E2A-M18KN16-WP-C2 2M | E2A M18 Unshielded 16 mm Brass Short (39mm) NPN NC Pre-wired 2 m | OMRON | Size: M18 | Shield: Unshielded | Sensing Distance: 16 mm | Body Material: Brass | Thread/Barrel: Short (39mm) | Connection: Pre-wired 2 m | Output: NPN | Operation Mode: NC | ||
| E2A-M18KN16-M1-B1 | E2A M18 Unshielded 16 mm Brass Short (39mm) PNP NO M12 Connector | OMRON | Size: M18 | Shield: Unshielded | Sensing Distance: 16 mm | Body Material: Brass | Thread/Barrel: Short (39mm) | Connection: M12 Connector | Output: PNP | Operation Mode: NO | ||
| E2A-M18KN16-M1-B2 | E2A M18 Unshielded 16 mm Brass Short (39mm) PNP NC M12 Connector | OMRON | Size: M18 | Shield: Unshielded | Sensing Distance: 16 mm | Body Material: Brass | Thread/Barrel: Short (39mm) | Connection: M12 Connector | Output: PNP | Operation Mode: NC | ||
| E2A-M18KN16-M1-C1 | E2A M18 Unshielded 16 mm Brass Short (39mm) NPN NO M12 Connector | OMRON | Size: M18 | Shield: Unshielded | Sensing Distance: 16 mm | Body Material: Brass | Thread/Barrel: Short (39mm) | Connection: M12 Connector | Output: NPN | Operation Mode: NO | ||
| E2A-M18KN16-M1-C2 | E2A M18 Unshielded 16 mm Brass Short (39mm) NPN NC M12 Connector | OMRON | Size: M18 | Shield: Unshielded | Sensing Distance: 16 mm | Body Material: Brass | Thread/Barrel: Short (39mm) | Connection: M12 Connector | Output: NPN | Operation Mode: NC | ||
| E2A-M18LN16-WP-B1 2M | E2A M18 Unshielded 16 mm Brass Long (61mm) PNP NO Pre-wired 2 m | OMRON | Size: M18 | Shield: Unshielded | Sensing Distance: 16 mm | Body Material: Brass | Thread/Barrel: Long (61mm) | Connection: Pre-wired 2 m | Output: PNP | Operation Mode: NO | ||
| E2A-M18LN16-WP-B2 2M | E2A M18 Unshielded 16 mm Brass Long (61mm) PNP NC Pre-wired 2 m | OMRON | Size: M18 | Shield: Unshielded | Sensing Distance: 16 mm | Body Material: Brass | Thread/Barrel: Long (61mm) | Connection: Pre-wired 2 m | Output: PNP | Operation Mode: NC | ||
| E2A-M18LN16-WP-C1 2M | E2A M18 Unshielded 16 mm Brass Long (61mm) NPN NO Pre-wired 2 m | OMRON | Size: M18 | Shield: Unshielded | Sensing Distance: 16 mm | Body Material: Brass | Thread/Barrel: Long (61mm) | Connection: Pre-wired 2 m | Output: NPN | Operation Mode: NO | ||
| E2A-M18LN16-WP-C2 2M | E2A M18 Unshielded 16 mm Brass Long (61mm) NPN NC Pre-wired 2 m | OMRON | Size: M18 | Shield: Unshielded | Sensing Distance: 16 mm | Body Material: Brass | Thread/Barrel: Long (61mm) | Connection: Pre-wired 2 m | Output: NPN | Operation Mode: NC | ||
| E2A-M18LN16-M1-B1 | E2A M18 Unshielded 16 mm Brass Long (61mm) PNP NO M12 Connector | OMRON | Size: M18 | Shield: Unshielded | Sensing Distance: 16 mm | Body Material: Brass | Thread/Barrel: Long (61mm) | Connection: M12 Connector | Output: PNP | Operation Mode: NO | ||
| E2A-M18LN16-M1-B2 | E2A M18 Unshielded 16 mm Brass Long (61mm) PNP NC M12 Connector | OMRON | Size: M18 | Shield: Unshielded | Sensing Distance: 16 mm | Body Material: Brass | Thread/Barrel: Long (61mm) | Connection: M12 Connector | Output: PNP | Operation Mode: NC | ||
| E2A-M18LN16-M1-C1 | E2A M18 Unshielded 16 mm Brass Long (61mm) NPN NO M12 Connector | OMRON | Size: M18 | Shield: Unshielded | Sensing Distance: 16 mm | Body Material: Brass | Thread/Barrel: Long (61mm) | Connection: M12 Connector | Output: NPN | Operation Mode: NO | ||
| E2A-M18LN16-M1-C2 | E2A M18 Unshielded 16 mm Brass Long (61mm) NPN NC M12 Connector | OMRON | Size: M18 | Shield: Unshielded | Sensing Distance: 16 mm | Body Material: Brass | Thread/Barrel: Long (61mm) | Connection: M12 Connector | Output: NPN | Operation Mode: NC |
