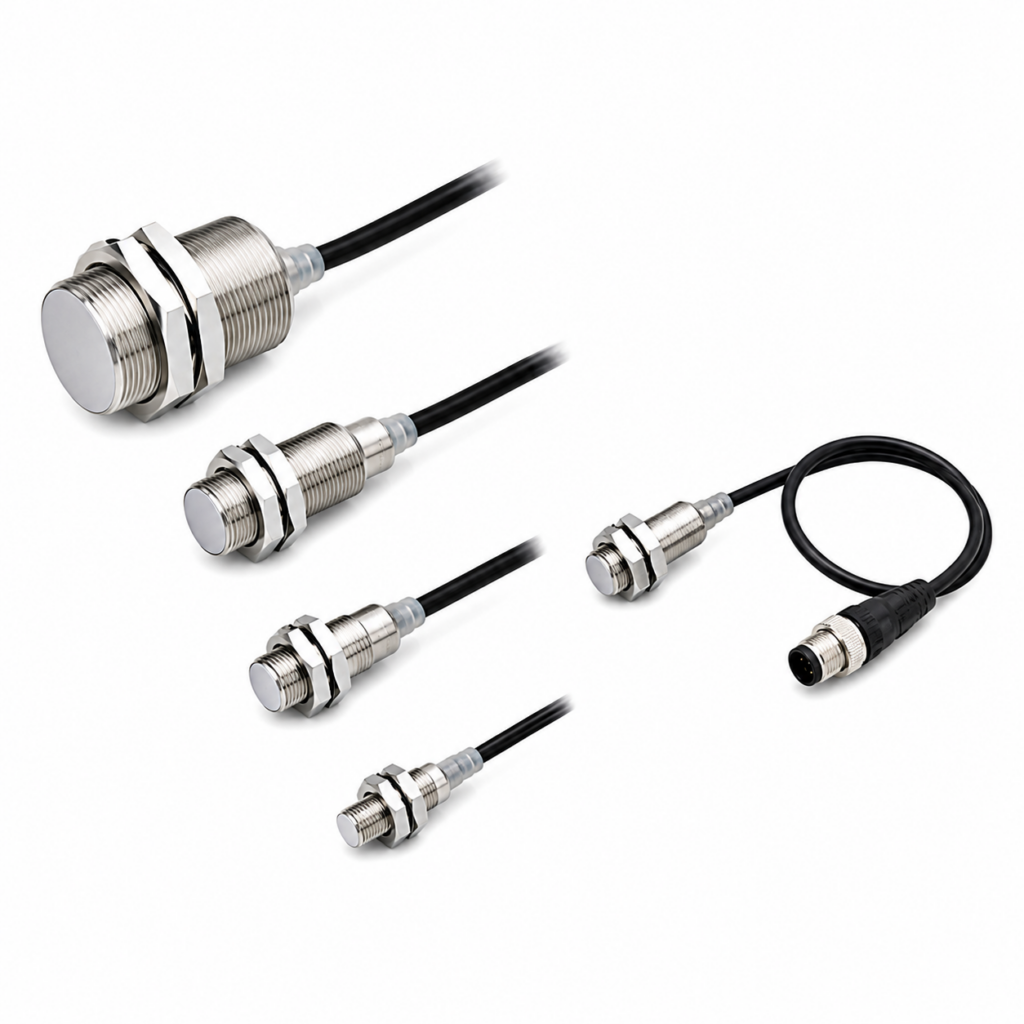

![[OMRON] — E2EQ NEXT Fluororesin Spatter-resistant Proximity Sensor PREMIUM Triple (DC 3-Wire, M8/M12/M18/M30)](https://img.prosourcemro.com/2026/05/001-371-1024x1024.png)
Proximity
Omron
[OMRON] — E2EQ NEXT Fluororesin Spatter-resistant Proximity Sensor PREMIUM Triple (DC 3-Wire, M8/M12/M18/M30)
Family ID: OMRON-E2EQ-3W-T
OMRON E2EQ NEXT Series fluororesin coating spatter-resistant proximity sensor. PREMIUM triple distance. M8 (3mm), M12 (6mm), M18 (12mm), M30 (22mm). PNP/NPN. NO/NO+NC. IO-Link COM2 (PNP only). Pre-wired 2m/5m, Smartclick 0.3m.
42 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E2EQ-X3B1D8 2M | E2EQ M8 3 mm PNP NO 2m | OMRON | Size: M8 | Sensing Distance: 3 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m | ||
| E2EQ-X3B1D8 5M | E2EQ M8 3 mm PNP NO 5m | OMRON | Size: M8 | Sensing Distance: 3 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 5 m | ||
| E2EQ-X3B1D8-M1TJ 0.3M | E2EQ M8 3 mm PNP NO SC 0.3m | OMRON | Size: M8 | Sensing Distance: 3 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m | ||
| E2EQ-X3C18 2M | E2EQ M8 3 mm NPN NO 2m | OMRON | Size: M8 | Sensing Distance: 3 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m | ||
| E2EQ-X3C18 5M | E2EQ M8 3 mm NPN NO 5m | OMRON | Size: M8 | Sensing Distance: 3 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m | ||
| E2EQ-X3C18-M1TJ 0.3M | E2EQ M8 3 mm NPN NO SC 0.3m | OMRON | Size: M8 | Sensing Distance: 3 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m | ||
| E2EQ-X6B1D12 2M | E2EQ M12 6 mm PNP NO 2m | OMRON | Size: M12 | Sensing Distance: 6 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m | ||
| E2EQ-X6B1D12 5M | E2EQ M12 6 mm PNP NO 5m | OMRON | Size: M12 | Sensing Distance: 6 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 5 m | ||
| E2EQ-X6B1D12-M1TJ 0.3M | E2EQ M12 6 mm PNP NO SC 0.3m | OMRON | Size: M12 | Sensing Distance: 6 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m | ||
| E2EQ-X6B3D12 2M | E2EQ M12 6 mm PNP NO+NC 2m | OMRON | Size: M12 | Sensing Distance: 6 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 2 m | ||
| E2EQ-X6B3D12 5M | E2EQ M12 6 mm PNP NO+NC 5m | OMRON | Size: M12 | Sensing Distance: 6 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 5 m | ||
| E2EQ-X6B3D12-M1TJ 0.3M | E2EQ M12 6 mm PNP NO+NC SC 0.3m | OMRON | Size: M12 | Sensing Distance: 6 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m | ||
| E2EQ-X6C112 2M | E2EQ M12 6 mm NPN NO 2m | OMRON | Size: M12 | Sensing Distance: 6 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m | ||
| E2EQ-X6C112 5M | E2EQ M12 6 mm NPN NO 5m | OMRON | Size: M12 | Sensing Distance: 6 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m | ||
| E2EQ-X6C112-M1TJ 0.3M | E2EQ M12 6 mm NPN NO SC 0.3m | OMRON | Size: M12 | Sensing Distance: 6 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m | ||
| E2EQ-X6C312 2M | E2EQ M12 6 mm NPN NO+NC 2m | OMRON | Size: M12 | Sensing Distance: 6 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 2 m | ||
| E2EQ-X6C312 5M | E2EQ M12 6 mm NPN NO+NC 5m | OMRON | Size: M12 | Sensing Distance: 6 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 5 m | ||
| E2EQ-X6C312-M1TJ 0.3M | E2EQ M12 6 mm NPN NO+NC SC 0.3m | OMRON | Size: M12 | Sensing Distance: 6 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m | ||
| E2EQ-X12B1D18 2M | E2EQ M18 12 mm PNP NO 2m | OMRON | Size: M18 | Sensing Distance: 12 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m | ||
| E2EQ-X12B1D18 5M | E2EQ M18 12 mm PNP NO 5m | OMRON | Size: M18 | Sensing Distance: 12 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 5 m | ||
| E2EQ-X12B1D18-M1TJ 0.3M | E2EQ M18 12 mm PNP NO SC 0.3m | OMRON | Size: M18 | Sensing Distance: 12 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m | ||
| E2EQ-X12B3D18 2M | E2EQ M18 12 mm PNP NO+NC 2m | OMRON | Size: M18 | Sensing Distance: 12 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 2 m | ||
| E2EQ-X12B3D18 5M | E2EQ M18 12 mm PNP NO+NC 5m | OMRON | Size: M18 | Sensing Distance: 12 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 5 m | ||
| E2EQ-X12B3D18-M1TJ 0.3M | E2EQ M18 12 mm PNP NO+NC SC 0.3m | OMRON | Size: M18 | Sensing Distance: 12 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m | ||
| E2EQ-X12C118 2M | E2EQ M18 12 mm NPN NO 2m | OMRON | Size: M18 | Sensing Distance: 12 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m | ||
| E2EQ-X12C118 5M | E2EQ M18 12 mm NPN NO 5m | OMRON | Size: M18 | Sensing Distance: 12 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m | ||
| E2EQ-X12C118-M1TJ 0.3M | E2EQ M18 12 mm NPN NO SC 0.3m | OMRON | Size: M18 | Sensing Distance: 12 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m | ||
| E2EQ-X12C318 2M | E2EQ M18 12 mm NPN NO+NC 2m | OMRON | Size: M18 | Sensing Distance: 12 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 2 m | ||
| E2EQ-X12C318 5M | E2EQ M18 12 mm NPN NO+NC 5m | OMRON | Size: M18 | Sensing Distance: 12 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 5 m | ||
| E2EQ-X12C318-M1TJ 0.3M | E2EQ M18 12 mm NPN NO+NC SC 0.3m | OMRON | Size: M18 | Sensing Distance: 12 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m | ||
| E2EQ-X22B1D30 2M | E2EQ M30 22 mm PNP NO 2m | OMRON | Size: M30 | Sensing Distance: 22 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m | ||
| E2EQ-X22B1D30 5M | E2EQ M30 22 mm PNP NO 5m | OMRON | Size: M30 | Sensing Distance: 22 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 5 m | ||
| E2EQ-X22B1D30-M1TJ 0.3M | E2EQ M30 22 mm PNP NO SC 0.3m | OMRON | Size: M30 | Sensing Distance: 22 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m | ||
| E2EQ-X22B3D30 2M | E2EQ M30 22 mm PNP NO+NC 2m | OMRON | Size: M30 | Sensing Distance: 22 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 2 m | ||
| E2EQ-X22B3D30 5M | E2EQ M30 22 mm PNP NO+NC 5m | OMRON | Size: M30 | Sensing Distance: 22 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 5 m | ||
| E2EQ-X22B3D30-M1TJ 0.3M | E2EQ M30 22 mm PNP NO+NC SC 0.3m | OMRON | Size: M30 | Sensing Distance: 22 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m | ||
| E2EQ-X22C130 2M | E2EQ M30 22 mm NPN NO 2m | OMRON | Size: M30 | Sensing Distance: 22 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m | ||
| E2EQ-X22C130 5M | E2EQ M30 22 mm NPN NO 5m | OMRON | Size: M30 | Sensing Distance: 22 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m | ||
| E2EQ-X22C130-M1TJ 0.3M | E2EQ M30 22 mm NPN NO SC 0.3m | OMRON | Size: M30 | Sensing Distance: 22 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m | ||
| E2EQ-X22C330 2M | E2EQ M30 22 mm NPN NO+NC 2m | OMRON | Size: M30 | Sensing Distance: 22 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 2 m | ||
| E2EQ-X22C330 5M | E2EQ M30 22 mm NPN NO+NC 5m | OMRON | Size: M30 | Sensing Distance: 22 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 5 m | ||
| E2EQ-X22C330-M1TJ 0.3M | E2EQ M30 22 mm NPN NO+NC SC 0.3m | OMRON | Size: M30 | Sensing Distance: 22 mm | Shield: Shielded | Grade: PREMIUM Triple Spatter-resistant (3×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m |
