![[OMRON] — E2K-C Long-distance Capacitive Proximity Sensor (Unshielded, Adjustable Sensitivity)](https://prosourcemro.com/wp-content/uploads/2026/05/001-391-1024x1024.png)
Proximity
Omron

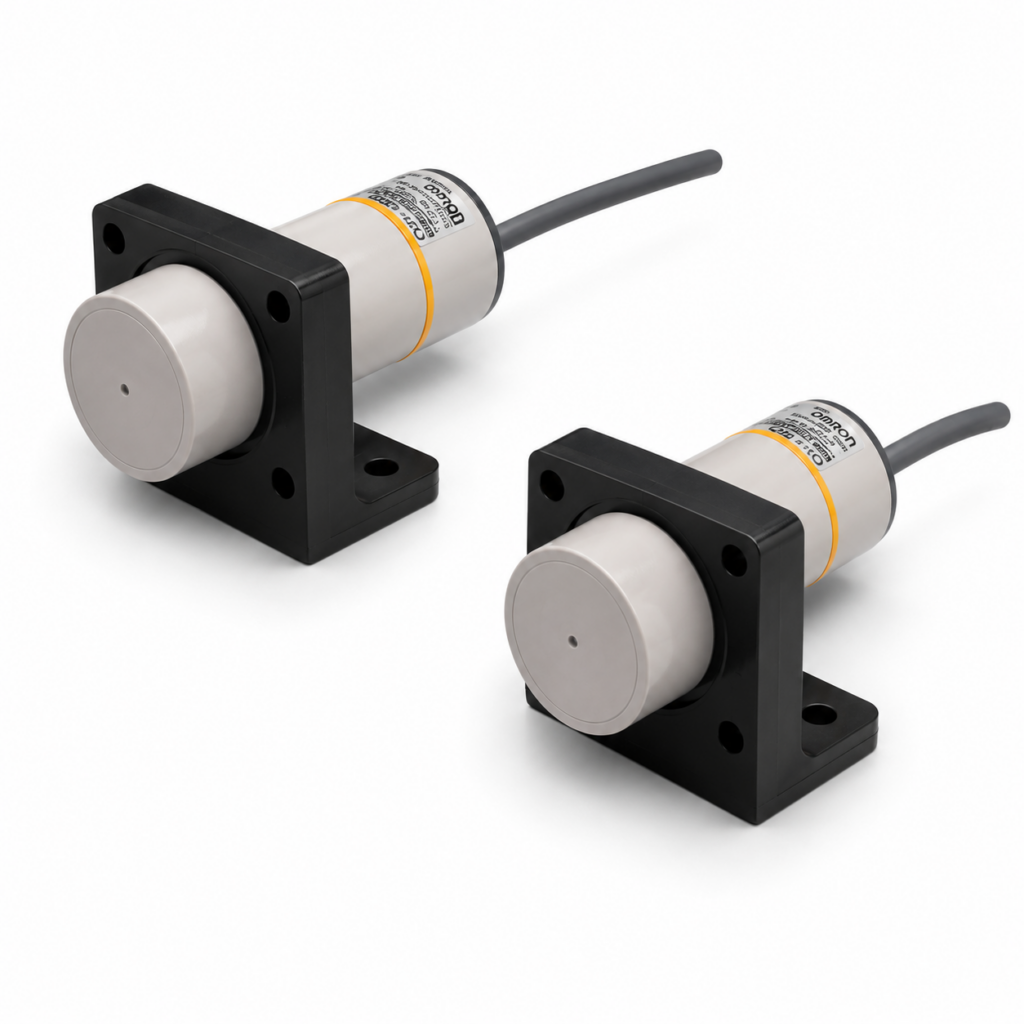

[OMRON] — E2K-C Long-distance Capacitive Proximity Sensor (Unshielded, Adjustable Sensitivity)
Family ID: OMRON-E2KC
OMRON E2K-C Series long-distance capacitive sensor with adjustable sensitivity. Unshielded. Pre-wired 2m. Standard: 25mm adjustable range 3-25mm — DC 3-wire NPN/PNP + AC 2-wire NO/NC. Noise-resistant: 20mm adjustable range 3-20mm — DC 3-wire NPN + AC/DC 2-wire NO/NC. UL model available for AC 2-wire 25mm NO (E2K-C25MY1-US).
10 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E2K-C25ME1 2M | E2K-C Standard 25 mm (3~25 mm) DC 3-wire NPN NO 2m | OMRON | Type: Standard | Sensing Distance: 25 mm (3~25 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: DC 3-wire | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided | ||
| E2K-C25ME2 2M | E2K-C Standard 25 mm (3~25 mm) DC 3-wire NPN NC 2m | OMRON | Type: Standard | Sensing Distance: 25 mm (3~25 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: DC 3-wire | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided | ||
| E2K-C25MF1 2M | E2K-C Standard 25 mm (3~25 mm) DC 3-wire PNP NO 2m | OMRON | Type: Standard | Sensing Distance: 25 mm (3~25 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: DC 3-wire | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided | ||
| E2K-C25MF2 2M | E2K-C Standard 25 mm (3~25 mm) DC 3-wire PNP NC 2m | OMRON | Type: Standard | Sensing Distance: 25 mm (3~25 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: DC 3-wire | Output: PNP | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided | ||
| E2K-C25MY1 2M | E2K-C Standard 25 mm (3~25 mm) AC 2-wire --- NO 2m | OMRON | Type: Standard | Sensing Distance: 25 mm (3~25 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: AC 2-wire | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Note: UL model available for E2K-C25MY1 NO: E2K-C25MY1-US | ||
| E2K-C25MY2 2M | E2K-C Standard 25 mm (3~25 mm) AC 2-wire --- NC 2m | OMRON | Type: Standard | Sensing Distance: 25 mm (3~25 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: AC 2-wire | Output: --- | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided | ||
| E2K-C20MC1 2M | E2K-C Noise-resistant 20 mm (3~20 mm) DC 3-wire NPN NO 2m | OMRON | Type: Noise-resistant | Sensing Distance: 20 mm (3~20 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: DC 3-wire | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided | ||
| E2K-C20MC2 2M | E2K-C Noise-resistant 20 mm (3~20 mm) DC 3-wire NPN NC 2m | OMRON | Type: Noise-resistant | Sensing Distance: 20 mm (3~20 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: DC 3-wire | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided | ||
| E2K-C20MT1 2M | E2K-C Noise-resistant 20 mm (3~20 mm) AC/DC 2-wire --- NO 2m | OMRON | Type: Noise-resistant | Sensing Distance: 20 mm (3~20 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: AC/DC 2-wire | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided | ||
| E2K-C20MT2 2M | E2K-C Noise-resistant 20 mm (3~20 mm) AC/DC 2-wire --- NC 2m | OMRON | Type: Noise-resistant | Sensing Distance: 20 mm (3~20 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: AC/DC 2-wire | Output: --- | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided |
