![[OMRON] — E2EH High-temperature Proximity Sensor for Food & Beverage (M12/M18/M30, DC 2-Wire/3-Wire)](https://prosourcemro.com/wp-content/uploads/2026/05/001-375-1024x1024.png)
Proximity
Omron

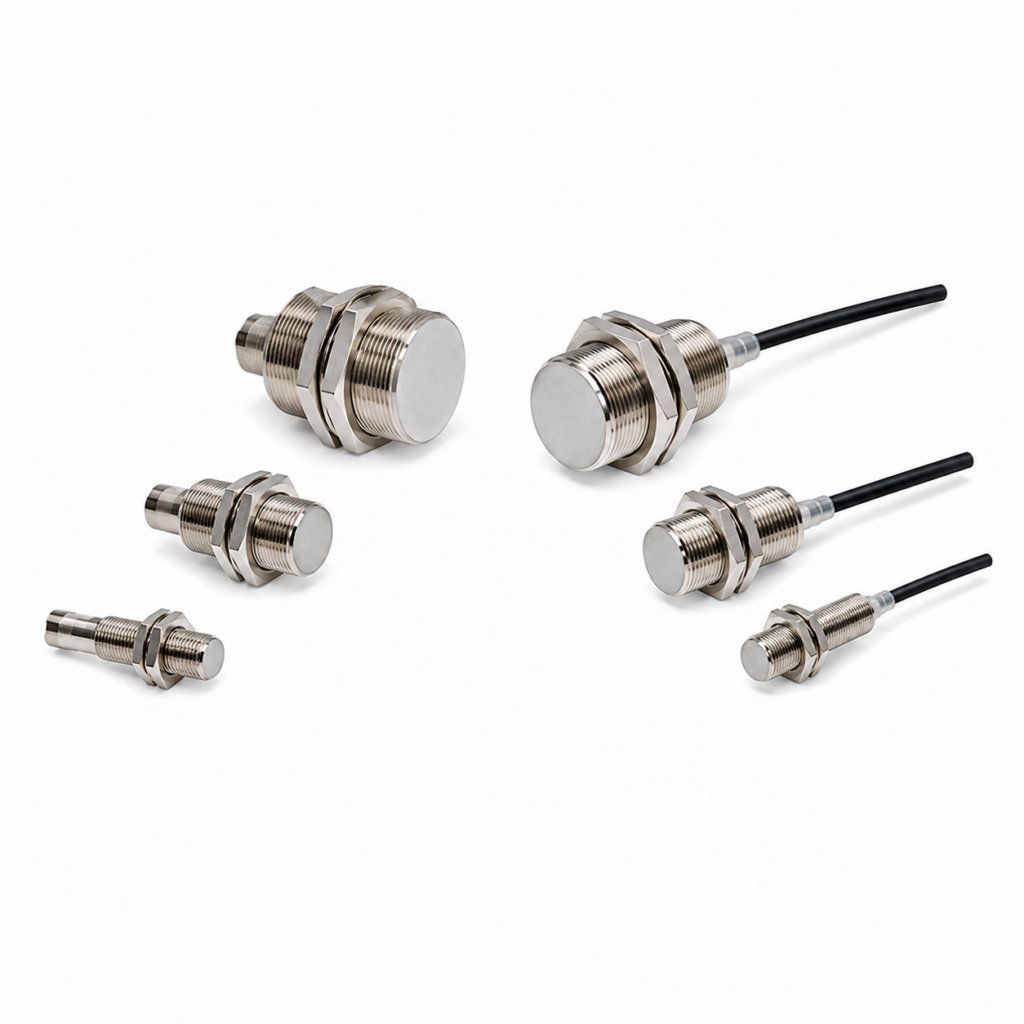

[OMRON] — E2EH High-temperature Proximity Sensor for Food & Beverage (M12/M18/M30, DC 2-Wire/3-Wire)
Family ID: OMRON-E2EH
OMRON E2EH Series proximity sensor for high temperatures and cleaning processes. Ideal for food and beverage industry. M12 (3mm), M18 (7mm), M30 (12mm). DC 2-wire (with/without polarity) and DC 3-wire NPN/PNP. NO and NC. Pre-wired 2m and M12 connector (IP69K, max 105°C, SUS316L stainless steel connector).
39 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E2EH-X3D1 2M | E2EH M12 3 mm DC2W polarity NO 2m | OMRON | Size: M12 | Sensing Distance: 3 mm | Wire: DC 2-wire (polarity) | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X3D2 2M | E2EH M12 3 mm DC2W polarity NC 2m | OMRON | Size: M12 | Sensing Distance: 3 mm | Wire: DC 2-wire (polarity) | Output: --- | Operation Mode: NC | Connection: Pre-wired 2 m | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X3D1-T 2M | E2EH M12 3 mm DC2W no-pol NO 2m | OMRON | Size: M12 | Sensing Distance: 3 mm | Wire: DC 2-wire (no polarity) | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X3B1 2M | E2EH M12 3 mm DC3W PNP NO 2m | OMRON | Size: M12 | Sensing Distance: 3 mm | Wire: DC 3-wire | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X3B2 2M | E2EH M12 3 mm DC3W PNP NC 2m | OMRON | Size: M12 | Sensing Distance: 3 mm | Wire: DC 3-wire | Output: PNP | Operation Mode: NC | Connection: Pre-wired 2 m | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X3C1 2M | E2EH M12 3 mm DC3W NPN NO 2m | OMRON | Size: M12 | Sensing Distance: 3 mm | Wire: DC 3-wire | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X3C2 2M | E2EH M12 3 mm DC3W NPN NC 2m | OMRON | Size: M12 | Sensing Distance: 3 mm | Wire: DC 3-wire | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X3D1-M1G | E2EH M12 3 mm DC2W polarity NO conn | OMRON | Size: M12 | Sensing Distance: 3 mm | Wire: DC 2-wire (polarity) | Output: --- | Operation Mode: NO | Connection: M12 Connector | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X3D2-M1G | E2EH M12 3 mm DC2W polarity NC conn | OMRON | Size: M12 | Sensing Distance: 3 mm | Wire: DC 2-wire (polarity) | Output: --- | Operation Mode: NC | Connection: M12 Connector | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X3B1-M1 | E2EH M12 3 mm DC3W PNP NO conn | OMRON | Size: M12 | Sensing Distance: 3 mm | Wire: DC 3-wire | Output: PNP | Operation Mode: NO | Connection: M12 Connector | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X3B2-M1 | E2EH M12 3 mm DC3W PNP NC conn | OMRON | Size: M12 | Sensing Distance: 3 mm | Wire: DC 3-wire | Output: PNP | Operation Mode: NC | Connection: M12 Connector | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X3C1-M1 | E2EH M12 3 mm DC3W NPN NO conn | OMRON | Size: M12 | Sensing Distance: 3 mm | Wire: DC 3-wire | Output: NPN | Operation Mode: NO | Connection: M12 Connector | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X3C2-M1 | E2EH M12 3 mm DC3W NPN NC conn | OMRON | Size: M12 | Sensing Distance: 3 mm | Wire: DC 3-wire | Output: NPN | Operation Mode: NC | Connection: M12 Connector | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X7D1 2M | E2EH M18 7 mm DC2W polarity NO 2m | OMRON | Size: M18 | Sensing Distance: 7 mm | Wire: DC 2-wire (polarity) | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X7D2 2M | E2EH M18 7 mm DC2W polarity NC 2m | OMRON | Size: M18 | Sensing Distance: 7 mm | Wire: DC 2-wire (polarity) | Output: --- | Operation Mode: NC | Connection: Pre-wired 2 m | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X7D1-T 2M | E2EH M18 7 mm DC2W no-pol NO 2m | OMRON | Size: M18 | Sensing Distance: 7 mm | Wire: DC 2-wire (no polarity) | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X7B1 2M | E2EH M18 7 mm DC3W PNP NO 2m | OMRON | Size: M18 | Sensing Distance: 7 mm | Wire: DC 3-wire | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X7B2 2M | E2EH M18 7 mm DC3W PNP NC 2m | OMRON | Size: M18 | Sensing Distance: 7 mm | Wire: DC 3-wire | Output: PNP | Operation Mode: NC | Connection: Pre-wired 2 m | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X7C1 2M | E2EH M18 7 mm DC3W NPN NO 2m | OMRON | Size: M18 | Sensing Distance: 7 mm | Wire: DC 3-wire | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X7C2 2M | E2EH M18 7 mm DC3W NPN NC 2m | OMRON | Size: M18 | Sensing Distance: 7 mm | Wire: DC 3-wire | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X7D1-M1G | E2EH M18 7 mm DC2W polarity NO conn | OMRON | Size: M18 | Sensing Distance: 7 mm | Wire: DC 2-wire (polarity) | Output: --- | Operation Mode: NO | Connection: M12 Connector | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X7D2-M1G | E2EH M18 7 mm DC2W polarity NC conn | OMRON | Size: M18 | Sensing Distance: 7 mm | Wire: DC 2-wire (polarity) | Output: --- | Operation Mode: NC | Connection: M12 Connector | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X7B1-M1 | E2EH M18 7 mm DC3W PNP NO conn | OMRON | Size: M18 | Sensing Distance: 7 mm | Wire: DC 3-wire | Output: PNP | Operation Mode: NO | Connection: M12 Connector | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X7B2-M1 | E2EH M18 7 mm DC3W PNP NC conn | OMRON | Size: M18 | Sensing Distance: 7 mm | Wire: DC 3-wire | Output: PNP | Operation Mode: NC | Connection: M12 Connector | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X7C1-M1 | E2EH M18 7 mm DC3W NPN NO conn | OMRON | Size: M18 | Sensing Distance: 7 mm | Wire: DC 3-wire | Output: NPN | Operation Mode: NO | Connection: M12 Connector | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X7C2-M1 | E2EH M18 7 mm DC3W NPN NC conn | OMRON | Size: M18 | Sensing Distance: 7 mm | Wire: DC 3-wire | Output: NPN | Operation Mode: NC | Connection: M12 Connector | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X12D1 2M | E2EH M30 12 mm DC2W polarity NO 2m | OMRON | Size: M30 | Sensing Distance: 12 mm | Wire: DC 2-wire (polarity) | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X12D2 2M | E2EH M30 12 mm DC2W polarity NC 2m | OMRON | Size: M30 | Sensing Distance: 12 mm | Wire: DC 2-wire (polarity) | Output: --- | Operation Mode: NC | Connection: Pre-wired 2 m | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X12D1-T 2M | E2EH M30 12 mm DC2W no-pol NO 2m | OMRON | Size: M30 | Sensing Distance: 12 mm | Wire: DC 2-wire (no polarity) | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X12B1 2M | E2EH M30 12 mm DC3W PNP NO 2m | OMRON | Size: M30 | Sensing Distance: 12 mm | Wire: DC 3-wire | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X12B2 2M | E2EH M30 12 mm DC3W PNP NC 2m | OMRON | Size: M30 | Sensing Distance: 12 mm | Wire: DC 3-wire | Output: PNP | Operation Mode: NC | Connection: Pre-wired 2 m | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X12C1 2M | E2EH M30 12 mm DC3W NPN NO 2m | OMRON | Size: M30 | Sensing Distance: 12 mm | Wire: DC 3-wire | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X12C2 2M | E2EH M30 12 mm DC3W NPN NC 2m | OMRON | Size: M30 | Sensing Distance: 12 mm | Wire: DC 3-wire | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X12D1-M1G | E2EH M30 12 mm DC2W polarity NO conn | OMRON | Size: M30 | Sensing Distance: 12 mm | Wire: DC 2-wire (polarity) | Output: --- | Operation Mode: NO | Connection: M12 Connector | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X12D2-M1G | E2EH M30 12 mm DC2W polarity NC conn | OMRON | Size: M30 | Sensing Distance: 12 mm | Wire: DC 2-wire (polarity) | Output: --- | Operation Mode: NC | Connection: M12 Connector | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X12B1-M1 | E2EH M30 12 mm DC3W PNP NO conn | OMRON | Size: M30 | Sensing Distance: 12 mm | Wire: DC 3-wire | Output: PNP | Operation Mode: NO | Connection: M12 Connector | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X12B2-M1 | E2EH M30 12 mm DC3W PNP NC conn | OMRON | Size: M30 | Sensing Distance: 12 mm | Wire: DC 3-wire | Output: PNP | Operation Mode: NC | Connection: M12 Connector | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X12C1-M1 | E2EH M30 12 mm DC3W NPN NO conn | OMRON | Size: M30 | Sensing Distance: 12 mm | Wire: DC 3-wire | Output: NPN | Operation Mode: NO | Connection: M12 Connector | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel | ||
| E2EH-X12C2-M1 | E2EH M30 12 mm DC3W NPN NC conn | OMRON | Size: M30 | Sensing Distance: 12 mm | Wire: DC 3-wire | Output: NPN | Operation Mode: NC | Connection: M12 Connector | Application: High temperature / food & beverage / cleaning processes | Connector Note: M12 connector: IP69K, max 105°C, SUS316L stainless steel |
