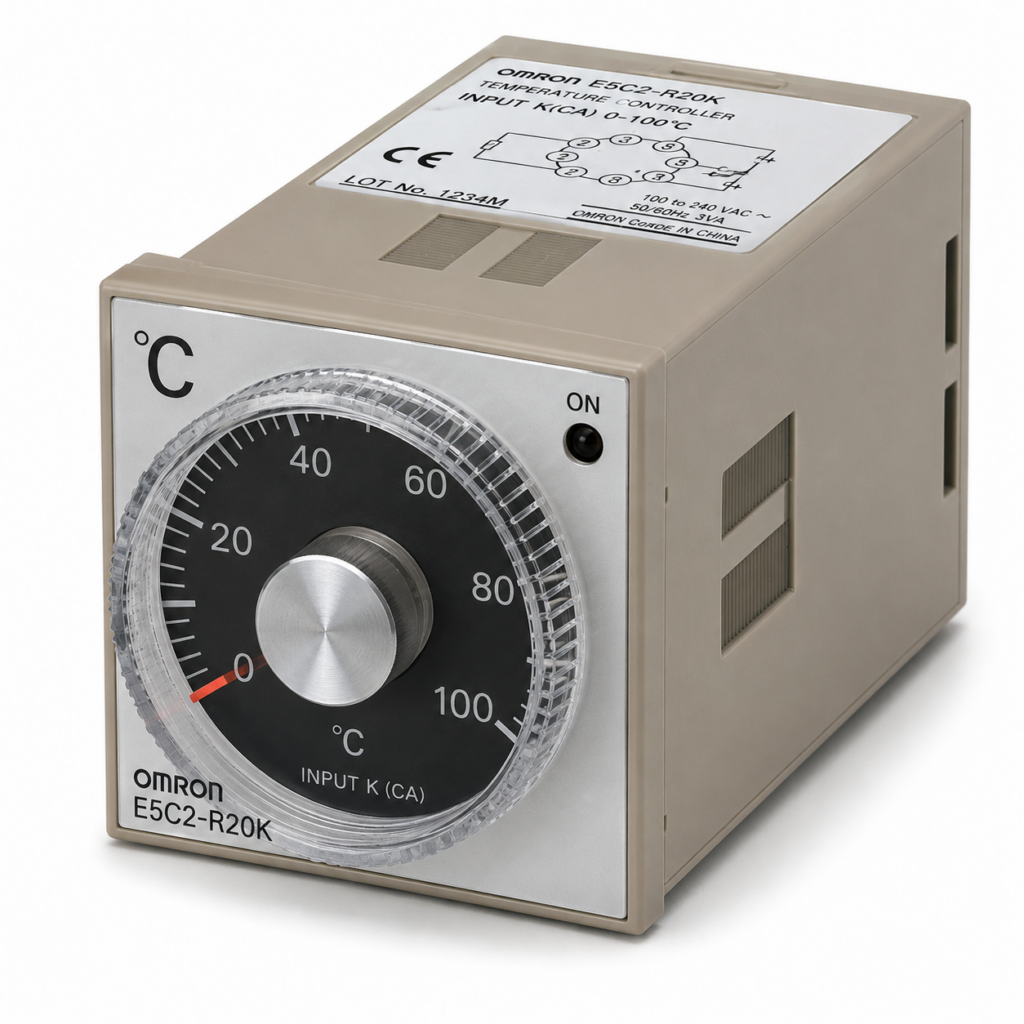

![[OMRON] — E5C2 Temperature Controller (48x48mm, Analog Setting, ON/OFF or Proportional, Relay Output)](https://img.prosourcemro.com/2026/05/001-608-1024x1024.png)
Temperature Controller
Omron
[OMRON] — E5C2 Temperature Controller (48x48mm, Analog Setting, ON/OFF or Proportional, Relay Output)
Family ID: OMRON-E5C2
DIN-sized (48x48mm) Temperature Controller with Analog Setting. No indication type. ON/OFF or Proportional (P) control modes. Thermocouple (K/J), Platinum resistance thermometer (Pt100), and Thermistor input types. Specify temperature range when ordering.
5 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E5C2-R20K | ON/OFF, Relay, Thermocouple K (CA), 0~200 to 0~1200°C range (specify at order) | OMRON | Input: Thermocouple K (CA) Chromel vs. Alumel | Control Mode: ON/OFF | Output: Relay | Available Ranges: 0~200 / 0~300 / 0~400 / 0~600 / 0~800 / 0~1000 / 0~1200 degC | Setting: Analog | Indication: None | Note: Specify temperature range when ordering | ||
| E5C2-R40K | Proportional (P), Relay, Thermocouple K (CA), 0~200 to 0~800°C range (specify at order) | OMRON | Input: Thermocouple K (CA) Chromel vs. Alumel | Control Mode: Proportional (P) | Output: Relay | Available Ranges: 0~200 / 0~300 / 0~400 / 0~600 / 0~800 degC | Setting: Analog | Indication: None | Note: Specify temperature range when ordering | ||
| E5C2-R20J | ON/OFF, Relay, Thermocouple J (IC), 0~200 to 0~400°C range (specify at order) | OMRON | Input: Thermocouple J (IC) Iron vs. Constantan | Control Mode: ON/OFF | Output: Relay | Available Ranges: 0~200 / 0~300 / 0~400 degC | Setting: Analog | Indication: None | Note: Specify temperature range when ordering | ||
| E5C2-R20P-D | ON/OFF, Relay, Platinum RTD Pt100, -50~50 to 0~400°C range (specify at order) | OMRON | Input: Platinum Resistance Thermometer Pt100 | Control Mode: ON/OFF | Output: Relay | Available Ranges: -50~50 / -20~80 / 0~50 / 0~100 / 0~200 / 0~300 / 0~400 degC | Setting: Analog | Indication: None | Note: Specify temperature range when ordering | ||
| E5C2-R20G | ON/OFF, Relay, Thermistor (replaceable element), -50~50 to 150~300°C range (specify at order) | OMRON | Input: Thermistor (replaceable element) | Control Mode: ON/OFF | Output: Relay | Available Ranges: -50~50 / 0~100 / 50~150 / 100~200 / 150~300 degC | Setting: Analog | Indication: None | Note: Specify temperature range when ordering |
