Temperature Controller
Omron

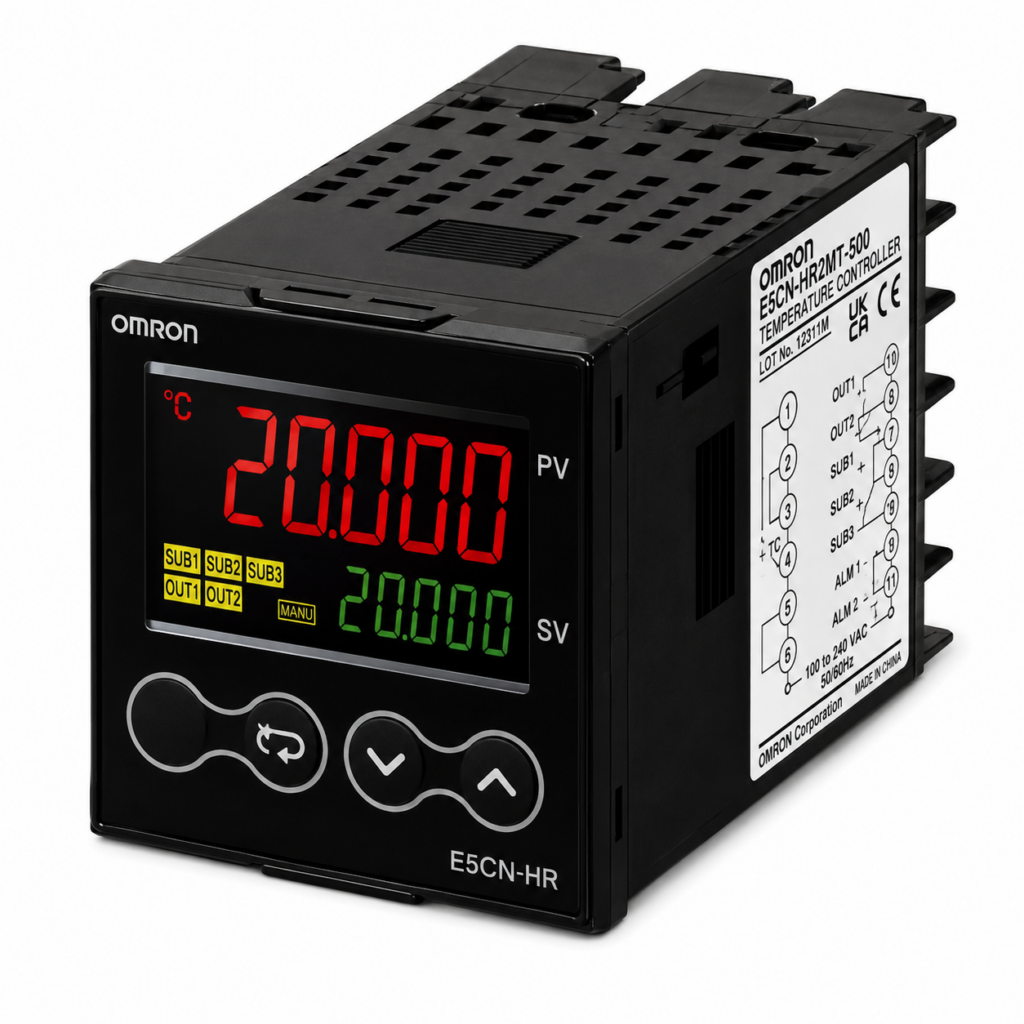

[OMRON] — E5CN-H Advanced Digital Temperature Controller (48x48mm, Relay/Voltage/Current/Linear Voltage Output, Black/Silver)
Family ID: OMRON-E5CN-H
A New High-performance Controller: High Resolution, High Speed, and High Input Accuracy. Logic Operations and Preventive Maintenance Function. 1/16 DIN 48x48x78mm. 2 auxiliary outputs. Optional units available for RS-485/RS-232C, heater burnout detection, event inputs, and control output 2.
28 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E5CN-HR2M-500 | Relay output, Black, 100~240VAC, 2 aux outputs | OMRON | Type: Main Unit | Size: 48x48x78mm | Control Output 1: Relay | Case Color: Black | Aux Outputs: 2 | Power Supply: 100~240VAC | ||
| E5CN-HQ2M-500 | Voltage output (SSR), Black, 100~240VAC, 2 aux outputs | OMRON | Type: Main Unit | Size: 48x48x78mm | Control Output 1: Voltage (for driving SSR) | Case Color: Black | Aux Outputs: 2 | Power Supply: 100~240VAC | ||
| E5CN-HC2M-500 | Current output, Black, 100~240VAC, 2 aux outputs | OMRON | Type: Main Unit | Size: 48x48x78mm | Control Output 1: Current | Case Color: Black | Aux Outputs: 2 | Power Supply: 100~240VAC | ||
| E5CN-HV2M-500 | Linear voltage output, Black, 100~240VAC, 2 aux outputs | OMRON | Type: Main Unit | Size: 48x48x78mm | Control Output 1: Linear Voltage | Case Color: Black | Aux Outputs: 2 | Power Supply: 100~240VAC | ||
| E5CN-HR2MD-500 | Relay output, Black, 24VAC/VDC, 2 aux outputs | OMRON | Type: Main Unit | Size: 48x48x78mm | Control Output 1: Relay | Case Color: Black | Aux Outputs: 2 | Power Supply: 24VAC/VDC | ||
| E5CN-HQ2MD-500 | Voltage output (SSR), Black, 24VAC/VDC, 2 aux outputs | OMRON | Type: Main Unit | Size: 48x48x78mm | Control Output 1: Voltage (for driving SSR) | Case Color: Black | Aux Outputs: 2 | Power Supply: 24VAC/VDC | ||
| E5CN-HC2MD-500 | Current output, Black, 24VAC/VDC, 2 aux outputs | OMRON | Type: Main Unit | Size: 48x48x78mm | Control Output 1: Current | Case Color: Black | Aux Outputs: 2 | Power Supply: 24VAC/VDC | ||
| E5CN-HV2MD-500 | Linear voltage output, Black, 24VAC/VDC, 2 aux outputs | OMRON | Type: Main Unit | Size: 48x48x78mm | Control Output 1: Linear Voltage | Case Color: Black | Aux Outputs: 2 | Power Supply: 24VAC/VDC | ||
| E5CN-HR2M-W-500 | Relay output, Silver, 100~240VAC, 2 aux outputs | OMRON | Type: Main Unit | Size: 48x48x78mm | Control Output 1: Relay | Case Color: Silver | Aux Outputs: 2 | Power Supply: 100~240VAC | ||
| E5CN-HQ2M-W-500 | Voltage output (SSR), Silver, 100~240VAC, 2 aux outputs | OMRON | Type: Main Unit | Size: 48x48x78mm | Control Output 1: Voltage (for driving SSR) | Case Color: Silver | Aux Outputs: 2 | Power Supply: 100~240VAC | ||
| E5CN-HC2M-W-500 | Current output, Silver, 100~240VAC, 2 aux outputs | OMRON | Type: Main Unit | Size: 48x48x78mm | Control Output 1: Current | Case Color: Silver | Aux Outputs: 2 | Power Supply: 100~240VAC | ||
| E5CN-HR2MD-W-500 | Relay output, Silver, 24VAC/VDC, 2 aux outputs | OMRON | Type: Main Unit | Size: 48x48x78mm | Control Output 1: Relay | Case Color: Silver | Aux Outputs: 2 | Power Supply: 24VAC/VDC | ||
| E5CN-HQ2MD-W-500 | Voltage output (SSR), Silver, 24VAC/VDC, 2 aux outputs | OMRON | Type: Main Unit | Size: 48x48x78mm | Control Output 1: Voltage (for driving SSR) | Case Color: Silver | Aux Outputs: 2 | Power Supply: 24VAC/VDC | ||
| E5CN-HC2MD-W-500 | Current output, Silver, 24VAC/VDC, 2 aux outputs | OMRON | Type: Main Unit | Size: 48x48x78mm | Control Output 1: Current | Case Color: Silver | Aux Outputs: 2 | Power Supply: 24VAC/VDC | ||
| E53-CNHH03N2 | Option Unit: RS-485 + 3-phase HB/SSR/Overcurrent detection | OMRON | Type: Option Unit | Functions: RS-485 communications / 3-phase heater burnout / SSR failure / Heater overcurrent detection | ||
| E53-CNHBN2 | Option Unit: HB/SSR/Overcurrent detection + Event inputs | OMRON | Type: Option Unit | Functions: Heater burnout / SSR failure / Heater overcurrent detection / Event inputs | ||
| E53-CNQ03N2 | Option Unit: RS-485 + Control output 2 (Voltage SSR) | OMRON | Type: Option Unit | Functions: RS-485 communications / Control output 2 (Voltage for driving SSR) | ||
| E53-CNH03N2 | Option Unit: RS-485 + HB/SSR/Overcurrent detection | OMRON | Type: Option Unit | Functions: RS-485 communications / Heater burnout / SSR failure / Heater overcurrent detection | ||
| E53-CN03N2 | Option Unit: RS-485 communications | OMRON | Type: Option Unit | Functions: RS-485 communications | ||
| E53-CNBN2 | Option Unit: Event inputs | OMRON | Type: Option Unit | Functions: Event inputs | ||
| E53-CNQHN2 | Option Unit: HB/SSR/Overcurrent detection + Control output 2 (Voltage SSR) | OMRON | Type: Option Unit | Functions: Heater burnout / SSR failure / Heater overcurrent detection / Control output 2 (Voltage for driving SSR) | ||
| E53-CNQHHN2 | Option Unit: 3-phase HB/SSR/Overcurrent detection + Control output 2 (Voltage SSR) | OMRON | Type: Option Unit | Functions: 3-phase heater burnout / SSR failure / Heater overcurrent detection / Control output 2 (Voltage for driving SSR) | ||
| E53-CNQBN2 | Option Unit: Event inputs + Control output 2 (Voltage SSR) | OMRON | Type: Option Unit | Functions: Event inputs / Control output 2 (Voltage for driving SSR) | ||
| E53-CNQFN2 | Option Unit: Control output 2 (Voltage SSR) + Transfer output | OMRON | Type: Option Unit | Functions: Control output 2 (Voltage for driving SSR) / Transfer output | ||
| E53-CNBFN2 | Option Unit: Event inputs + Transfer output | OMRON | Type: Option Unit | Functions: Event inputs / Transfer output | ||
| E53-CNQ01N2 | Option Unit: RS-232C + Control output 2 (Voltage SSR) | OMRON | Type: Option Unit | Functions: RS-232C communications / Control output 2 (Voltage for driving SSR) | ||
| E53-CN01N2 | Option Unit: RS-232C communications | OMRON | Type: Option Unit | Functions: RS-232C communications | ||
| E53-CNH01N2 | Option Unit: RS-232C + HB/SSR/Overcurrent detection | OMRON | Type: Option Unit | Functions: RS-232C communications / Heater burnout / SSR failure / Heater overcurrent detection |
