Temperature Controller
Omron

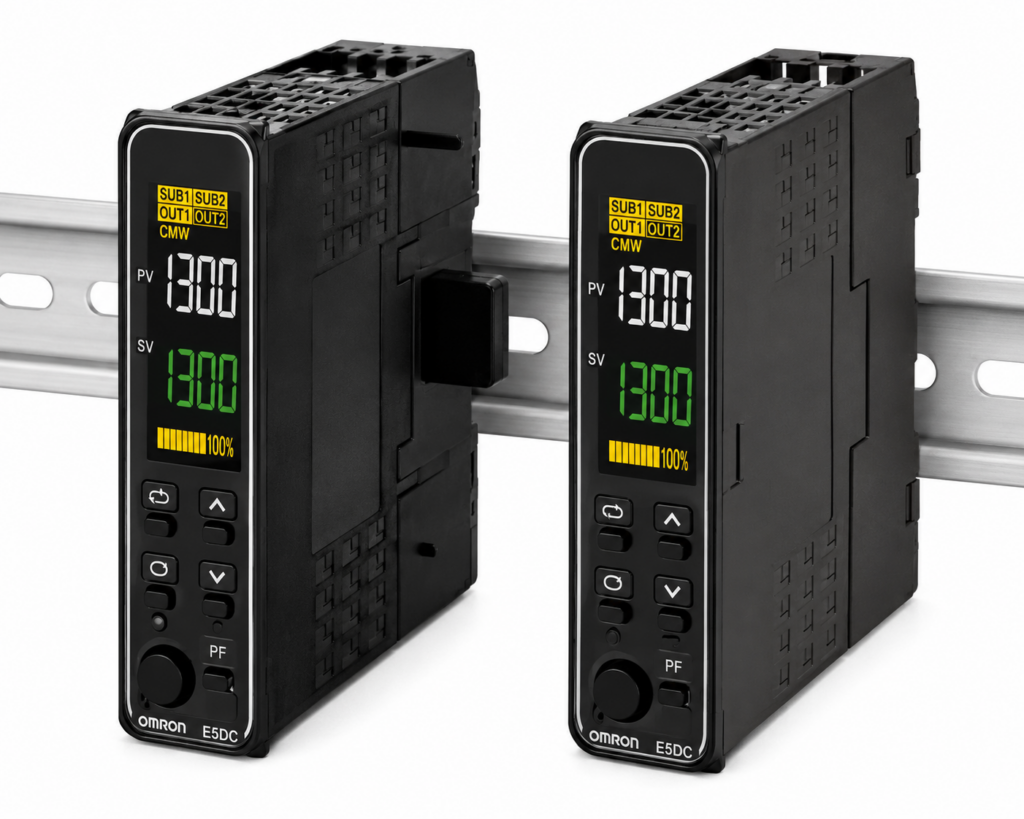

[OMRON] — E5DC-QX[]AUM Digital Temperature Controller (22.5mm DIN, Voltage Pulse Output, 100~240VAC, Screw Terminal (Unit Mount))
Family ID: OMRON-E5DC-QX-A-UM
The E5DC Mounts to DIN Track and Is Ideal for Connections to HMIs and PLCs. It provides the Same Easy Operation and Advanced Performance as the Rest of the E5[]C Series. Control output: Voltage Pulse. Auxiliary output: Relay+SSR. Power supply: 100~240VAC. Terminal: Screw Terminal (Unit Mount).
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E5DC-QX2AUM-000 | E5DC, Voltage Pulse, 100~240VAC, Screw Terminal (Unit Mount), No options | OMRON | Size: 22.5mm DIN | Control Output: Voltage Pulse | Auxiliary Outputs: 2 | Power Supply: 100~240VAC | Terminal: Screw Terminal (Unit Mount) | Option: No options | ||
| E5DC-QX2AUM-002 | E5DC, Voltage Pulse, 100~240VAC, Screw Terminal (Unit Mount), Heater burnout / SSR failure detection (HB/HS), RS-485 | OMRON | Size: 22.5mm DIN | Control Output: Voltage Pulse | Auxiliary Outputs: 2 | Power Supply: 100~240VAC | Terminal: Screw Terminal (Unit Mount) | Option: Heater burnout / SSR failure detection (HB/HS), RS-485 | ||
| E5DC-QX0AUM-015 | E5DC, Voltage Pulse, 100~240VAC, Screw Terminal (Unit Mount), RS-485 communications | OMRON | Size: 22.5mm DIN | Control Output: Voltage Pulse | Auxiliary Outputs: 0 | Power Supply: 100~240VAC | Terminal: Screw Terminal (Unit Mount) | Option: RS-485 communications | ||
| E5DC-QX2AUM-017 | E5DC, Voltage Pulse, 100~240VAC, Screw Terminal (Unit Mount), 1 event input (no comms) | OMRON | Size: 22.5mm DIN | Control Output: Voltage Pulse | Auxiliary Outputs: 2 | Power Supply: 100~240VAC | Terminal: Screw Terminal (Unit Mount) | Option: 1 event input (no comms) |
