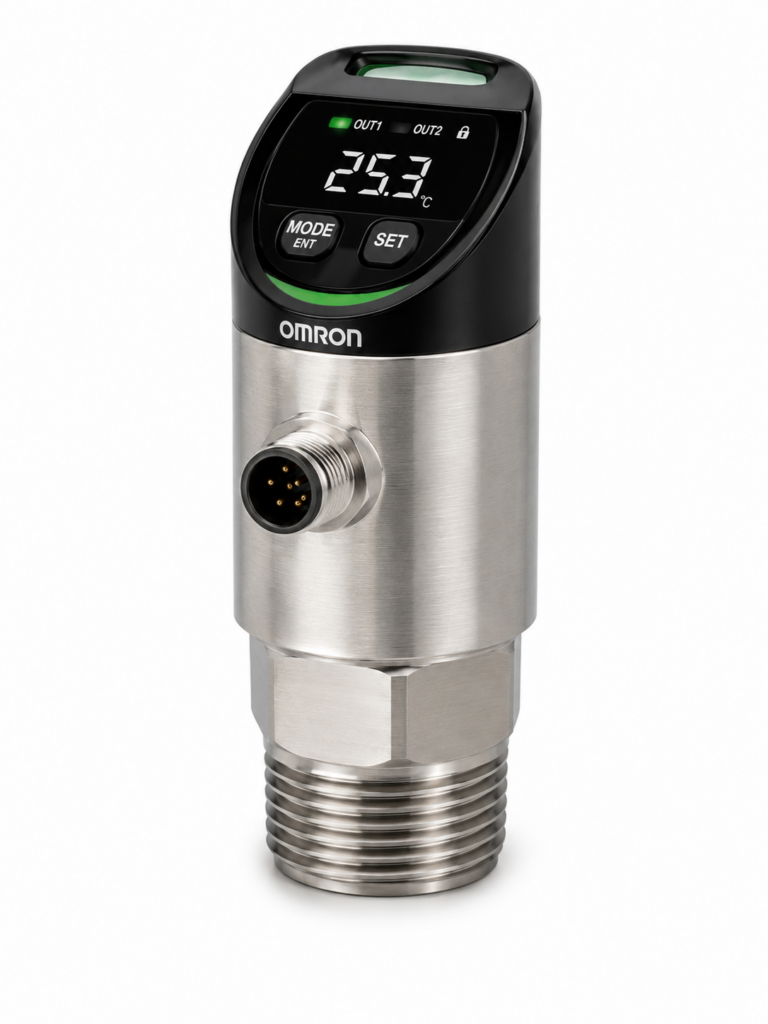

[OMRON] — E8PC IoT Pressure Sensor (Pressure + Temperature, IO-Link, -0.1~+40MPa)
Family ID: OMRON-E8PC
OMRON E8PC Series IoT pressure sensor for simultaneous measurement of pressure and temperature. Detects abnormalities in hydraulic oil and sealant. IO-Link Analog. PNP/NPN selectable. -0.1~+1 MPa (liquid/gas): E8PC-010SD/ST. 0~+10 MPa (liquid): E8PC-100SD/ST. 0~+40 MPa (liquid): E8PC-400SD/ST. SD=COM2, ST=COM3. Requires adapter (E8PC-YA series, sold separately).
12 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E8PC-010SD-E | E8PC Pressure+Temp -0.1~+1 MPa Liquid and gas IO-Link COM2 (38.4 kbps) | OMRON | Type: IoT Pressure Sensor | Measurement: Pressure + Temperature simultaneous | Rated Pressure Range: -0.1~+1 MPa | Applicable Medium: Liquid and gas | Output: PNP/NPN selectable | Communication: IO-Link Analog | IO-Link Baud Rate: COM2 (38.4 kbps) | Connection: M12 connector (cable sold separately) | Required Adapter: E8PC-YA series (sold separately) | Note: IO-Link IODD file required; contact OMRON representative | ||
| E8PC-010ST-E | E8PC Pressure+Temp -0.1~+1 MPa Liquid and gas IO-Link COM3 (230.4 kbps) | OMRON | Type: IoT Pressure Sensor | Measurement: Pressure + Temperature simultaneous | Rated Pressure Range: -0.1~+1 MPa | Applicable Medium: Liquid and gas | Output: PNP/NPN selectable | Communication: IO-Link Analog | IO-Link Baud Rate: COM3 (230.4 kbps) | Connection: M12 connector (cable sold separately) | Required Adapter: E8PC-YA series (sold separately) | Note: IO-Link IODD file required; contact OMRON representative | ||
| E8PC-100SD-E | E8PC Pressure+Temp 0~+10 MPa Liquid IO-Link COM2 (38.4 kbps) | OMRON | Type: IoT Pressure Sensor | Measurement: Pressure + Temperature simultaneous | Rated Pressure Range: 0~+10 MPa | Applicable Medium: Liquid | Output: PNP/NPN selectable | Communication: IO-Link Analog | IO-Link Baud Rate: COM2 (38.4 kbps) | Connection: M12 connector (cable sold separately) | Required Adapter: E8PC-YA series (sold separately) | Note: IO-Link IODD file required; contact OMRON representative | ||
| E8PC-100ST-E | E8PC Pressure+Temp 0~+10 MPa Liquid IO-Link COM3 (230.4 kbps) | OMRON | Type: IoT Pressure Sensor | Measurement: Pressure + Temperature simultaneous | Rated Pressure Range: 0~+10 MPa | Applicable Medium: Liquid | Output: PNP/NPN selectable | Communication: IO-Link Analog | IO-Link Baud Rate: COM3 (230.4 kbps) | Connection: M12 connector (cable sold separately) | Required Adapter: E8PC-YA series (sold separately) | Note: IO-Link IODD file required; contact OMRON representative | ||
| E8PC-400SD-E | E8PC Pressure+Temp 0~+40 MPa Liquid IO-Link COM2 (38.4 kbps) | OMRON | Type: IoT Pressure Sensor | Measurement: Pressure + Temperature simultaneous | Rated Pressure Range: 0~+40 MPa | Applicable Medium: Liquid | Output: PNP/NPN selectable | Communication: IO-Link Analog | IO-Link Baud Rate: COM2 (38.4 kbps) | Connection: M12 connector (cable sold separately) | Required Adapter: E8PC-YA series (sold separately) | Note: IO-Link IODD file required; contact OMRON representative | ||
| E8PC-400ST-E | E8PC Pressure+Temp 0~+40 MPa Liquid IO-Link COM3 (230.4 kbps) | OMRON | Type: IoT Pressure Sensor | Measurement: Pressure + Temperature simultaneous | Rated Pressure Range: 0~+40 MPa | Applicable Medium: Liquid | Output: PNP/NPN selectable | Communication: IO-Link Analog | IO-Link Baud Rate: COM3 (230.4 kbps) | Connection: M12 connector (cable sold separately) | Required Adapter: E8PC-YA series (sold separately) | Note: IO-Link IODD file required; contact OMRON representative | ||
| E8PC-YA-A18 | E8PC Adapter R1/8 male 1/8" R (taper thread) | OMRON | Type: Adapter for E8PC — R1/8 male | Nominal Diameter A: 6 A | Nominal Diameter B: 1/8" | Thread Type: R (taper thread) | Material: SUS304 | Compatible Sensor: E8PC-010/100/400 series | Note: Required for sensor installation; throttle E8PC-YS optional for surge protection | ||
| E8PC-YA-A14 | E8PC Adapter R1/4 male 1/4" R (taper thread) | OMRON | Type: Adapter for E8PC — R1/4 male | Nominal Diameter A: 8 A | Nominal Diameter B: 1/4" | Thread Type: R (taper thread) | Material: SUS304 | Compatible Sensor: E8PC-010/100/400 series | Note: Required for sensor installation; throttle E8PC-YS optional for surge protection | ||
| E8PC-YA-A38 | E8PC Adapter R3/8 male 3/8" R (taper thread) | OMRON | Type: Adapter for E8PC — R3/8 male | Nominal Diameter A: 10 A | Nominal Diameter B: 3/8" | Thread Type: R (taper thread) | Material: SUS304 | Compatible Sensor: E8PC-010/100/400 series | Note: Required for sensor installation; throttle E8PC-YS optional for surge protection | ||
| E8PC-YA-B14N | E8PC Adapter G1/4 female 1/4" G (parallel thread) | OMRON | Type: Adapter for E8PC — G1/4 female | Nominal Diameter A: 8 A | Nominal Diameter B: 1/4" | Thread Type: G (parallel thread) | Material: SUS304 | Compatible Sensor: E8PC-010/100/400 series | Note: Required for sensor installation; throttle E8PC-YS optional for surge protection | ||
| E8PC-YA-C18 | E8PC Adapter NPT1/8 male 1/8" NPT (taper thread) | OMRON | Type: Adapter for E8PC — NPT1/8 male | Nominal Diameter A: 6 A | Nominal Diameter B: 1/8" | Thread Type: NPT (taper thread) | Material: SUS304 | Compatible Sensor: E8PC-010/100/400 series | Note: Required for sensor installation; throttle E8PC-YS optional for surge protection | ||
| E8PC-YA-C14 | E8PC Adapter NPT1/4 male 1/4" NPT (taper thread) | OMRON | Type: Adapter for E8PC — NPT1/4 male | Nominal Diameter A: 8 A | Nominal Diameter B: 1/4" | Thread Type: NPT (taper thread) | Material: SUS304 | Compatible Sensor: E8PC-010/100/400 series | Note: Required for sensor installation; throttle E8PC-YS optional for surge protection |
