Relays
Omron

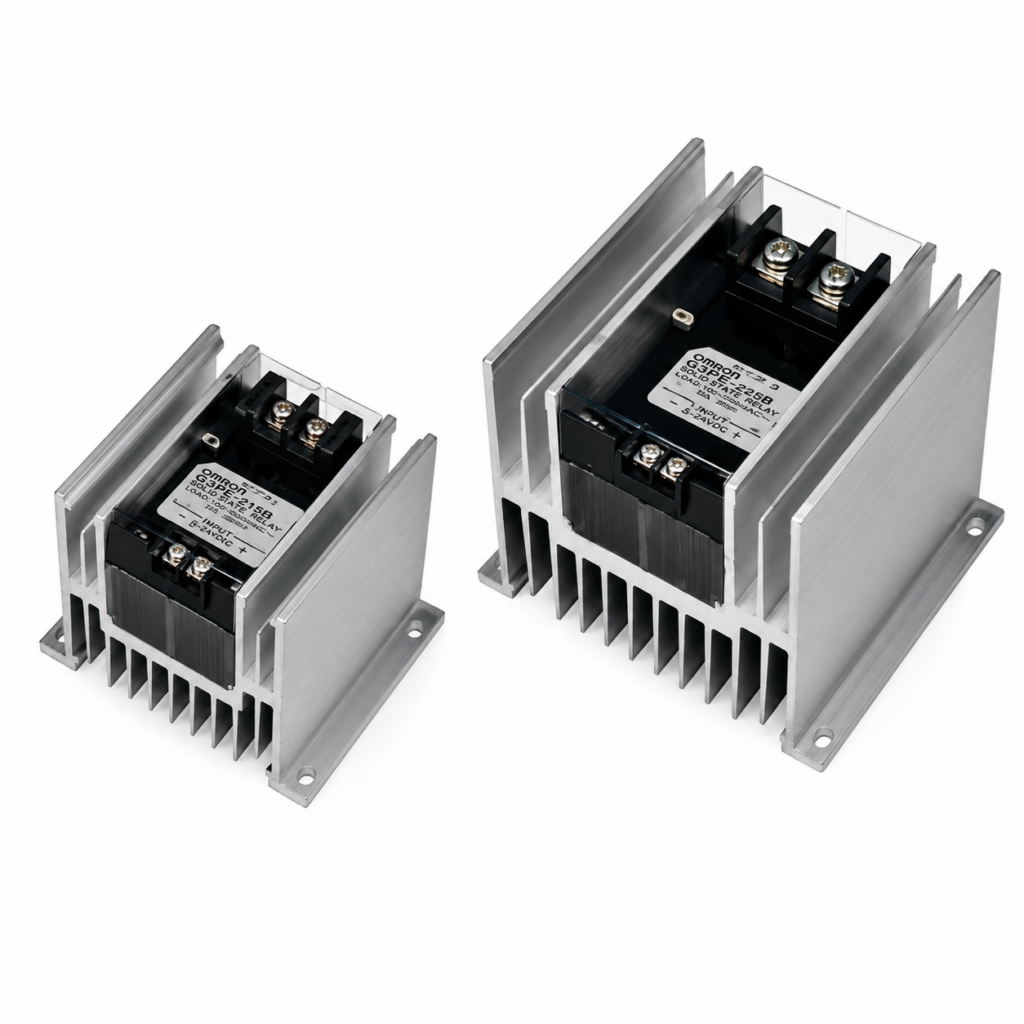

[OMRON] — G3PH High-power SSR (75/150A, 240/480VAC, Photocoupler, Built-in Thyristor Module)
Family ID: OMRON-G3PH
High-power, Load-control SSRs with High Current of 75 or 150 A and High Voltage of 240 or 480 VAC
16 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| G3PH-2075B DC5-24 | G3PH 75A 100-240 VAC 5-24 VDC | OMRON | Type: G3PH High-power SSR | Load Current: 75A | Load Voltage: 100-240 VAC | Input Voltage: 5-24 VDC | Zero Cross: Yes | Insulation: Photocoupler | Indicator: Yes (yellow) | Note: Load current depends on ambient temperature. Built-in Thyristor Module. | ||
| G3PH-2075B AC100-240 | G3PH 75A 100-240 VAC 100-240 VAC | OMRON | Type: G3PH High-power SSR | Load Current: 75A | Load Voltage: 100-240 VAC | Input Voltage: 100-240 VAC | Zero Cross: Yes | Insulation: Photocoupler | Indicator: Yes (yellow) | Note: Load current depends on ambient temperature. Built-in Thyristor Module. | ||
| G3PH-2150B DC5-24 | G3PH 150A 100-240 VAC 5-24 VDC | OMRON | Type: G3PH High-power SSR | Load Current: 150A | Load Voltage: 100-240 VAC | Input Voltage: 5-24 VDC | Zero Cross: Yes | Insulation: Photocoupler | Indicator: Yes (yellow) | Note: Load current depends on ambient temperature. Built-in Thyristor Module. | ||
| G3PH-2150B AC100-240 | G3PH 150A 100-240 VAC 100-240 VAC | OMRON | Type: G3PH High-power SSR | Load Current: 150A | Load Voltage: 100-240 VAC | Input Voltage: 100-240 VAC | Zero Cross: Yes | Insulation: Photocoupler | Indicator: Yes (yellow) | Note: Load current depends on ambient temperature. Built-in Thyristor Module. | ||
| G3PH-2075BL DC5-24 | G3PH 75A 100-240 VAC 5-24 VDC | OMRON | Type: G3PH High-power SSR | Load Current: 75A | Load Voltage: 100-240 VAC | Input Voltage: 5-24 VDC | Zero Cross: No | Insulation: Photocoupler | Indicator: Yes (yellow) | Note: Load current depends on ambient temperature. Built-in Thyristor Module. | ||
| G3PH-2150BL DC5-24 | G3PH 150A 100-240 VAC 5-24 VDC | OMRON | Type: G3PH High-power SSR | Load Current: 150A | Load Voltage: 100-240 VAC | Input Voltage: 5-24 VDC | Zero Cross: No | Insulation: Photocoupler | Indicator: Yes (yellow) | Note: Load current depends on ambient temperature. Built-in Thyristor Module. | ||
| G3PH-5075B DC5-24 | G3PH 75A 180-480 VAC 5-24 VDC | OMRON | Type: G3PH High-power SSR | Load Current: 75A | Load Voltage: 180-480 VAC | Input Voltage: 5-24 VDC | Zero Cross: Yes | Insulation: Photocoupler | Indicator: Yes (yellow) | Note: Load current depends on ambient temperature. Built-in Thyristor Module. | ||
| G3PH-5075B AC100-240 | G3PH 75A 180-480 VAC 100-240 VAC | OMRON | Type: G3PH High-power SSR | Load Current: 75A | Load Voltage: 180-480 VAC | Input Voltage: 100-240 VAC | Zero Cross: Yes | Insulation: Photocoupler | Indicator: Yes (yellow) | Note: Load current depends on ambient temperature. Built-in Thyristor Module. | ||
| G3PH-5150B DC5-24 | G3PH 150A 180-480 VAC 5-24 VDC | OMRON | Type: G3PH High-power SSR | Load Current: 150A | Load Voltage: 180-480 VAC | Input Voltage: 5-24 VDC | Zero Cross: Yes | Insulation: Photocoupler | Indicator: Yes (yellow) | Note: Load current depends on ambient temperature. Built-in Thyristor Module. | ||
| G3PH-5150B AC100-240 | G3PH 150A 180-480 VAC 100-240 VAC | OMRON | Type: G3PH High-power SSR | Load Current: 150A | Load Voltage: 180-480 VAC | Input Voltage: 100-240 VAC | Zero Cross: Yes | Insulation: Photocoupler | Indicator: Yes (yellow) | Note: Load current depends on ambient temperature. Built-in Thyristor Module. | ||
| G3PH-5075BL DC5-24 | G3PH 75A 180-480 VAC 5-24 VDC | OMRON | Type: G3PH High-power SSR | Load Current: 75A | Load Voltage: 180-480 VAC | Input Voltage: 5-24 VDC | Zero Cross: No | Insulation: Photocoupler | Indicator: Yes (yellow) | Note: Load current depends on ambient temperature. Built-in Thyristor Module. | ||
| G3PH-5150BL DC5-24 | G3PH 150A 180-480 VAC 5-24 VDC | OMRON | Type: G3PH High-power SSR | Load Current: 150A | Load Voltage: 180-480 VAC | Input Voltage: 5-24 VDC | Zero Cross: No | Insulation: Photocoupler | Indicator: Yes (yellow) | Note: Load current depends on ambient temperature. Built-in Thyristor Module. | ||
| G32A-P2075 | G3PH Thyristor Module 75A / 100-240VAC | OMRON | Type: G3PH Replacement Thyristor Module | Load: 75A / 100-240VAC | Applicable: G3PH-2075B(L) | ||
| G32A-P2150 | G3PH Thyristor Module 150A / 100-240VAC | OMRON | Type: G3PH Replacement Thyristor Module | Load: 150A / 100-240VAC | Applicable: G3PH-2150B(L) | ||
| G32A-P5075 | G3PH Thyristor Module 75A / 180-480VAC | OMRON | Type: G3PH Replacement Thyristor Module | Load: 75A / 180-480VAC | Applicable: G3PH-5075B(L) | ||
| G32A-P5150 | G3PH Thyristor Module 150A / 180-480VAC | OMRON | Type: G3PH Replacement Thyristor Module | Load: 150A / 180-480VAC | Applicable: G3PH-5150B(L) |
