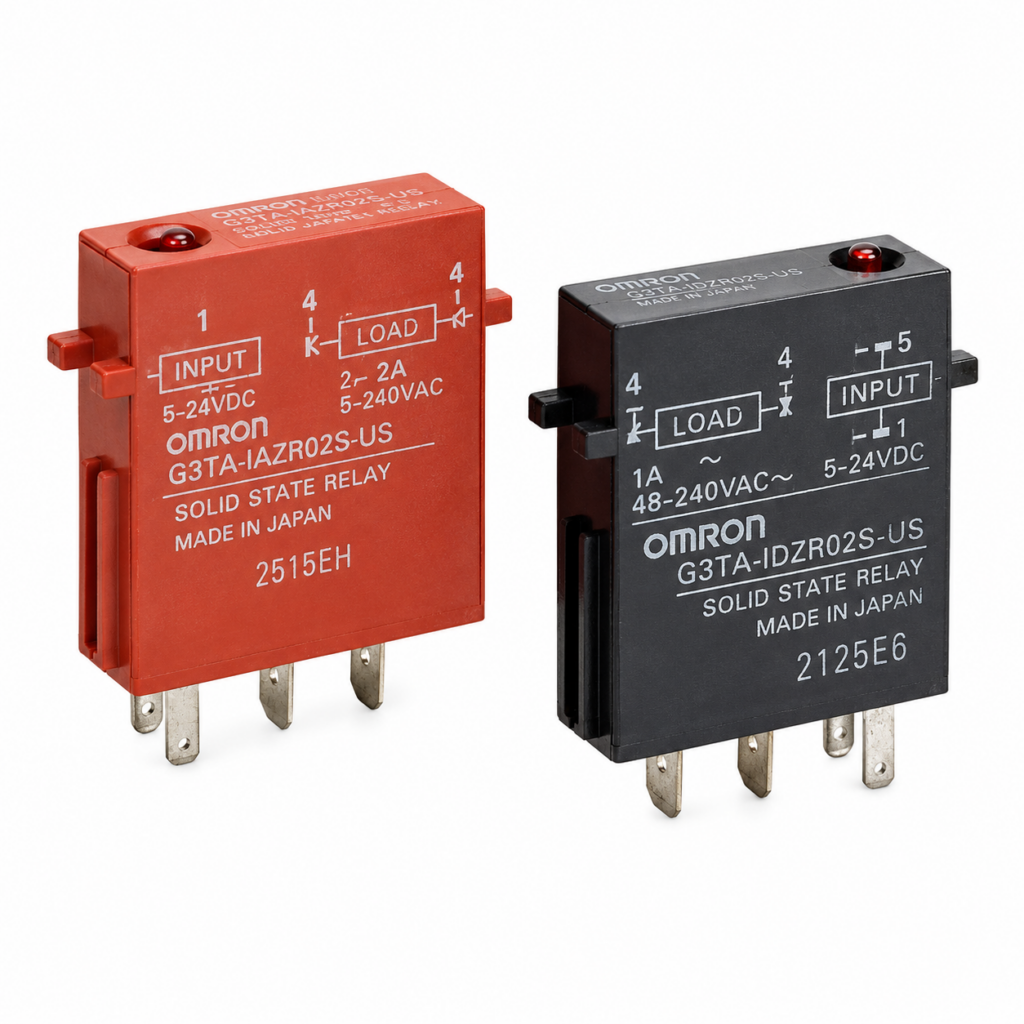

[OMRON] — G3TA I/O SSR (for G7TC Block, Input+Output, AC+DC, 12/24VDC, UL/CSA)
Family ID: OMRON-G3TA
I/O SSRs That Mount to OMRON's G7TC I/O Block
16 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| G3TA-IAZR02S-US | G3TA Input 100-240 VAC | OMRON | Type: G3TA Input Module SSR | Indicator: Yes | Logic Level: 4-32 VDC / 25mA | Input Voltage: 100-240 VAC | Note: Specify rated voltage when ordering. UL/CSA certified models have -US suffix. | ||
| G3TA-IDZR02S-US | G3TA Input 5-24 VDC | OMRON | Type: G3TA Input Module SSR | Indicator: Yes | Logic Level: 4-32 VDC / 25mA | Input Voltage: 5-24 VDC | Note: Specify rated voltage when ordering. UL/CSA certified models have -US suffix. | ||
| G3TA-IDZR02SM-US | G3TA Input 5-24 VDC | OMRON | Type: G3TA Input Module SSR | Indicator: No | Logic Level: 4-24 VDC | Input Voltage: 5-24 VDC | Note: Specify rated voltage when ordering. UL/CSA certified models have -US suffix. | ||
| G3TA-OA202SZ-US DC12 | G3TA Output 2A/100-240VAC at 60°C 12 VDC | OMRON | Type: G3TA Output Module SSR | Isolation: Phototriac | Zero Cross: Yes | Indicator: Yes | Load: 2A/100-240VAC at 60°C | Input Voltage: 12 VDC | Note: Specify rated voltage when ordering. UL/CSA certified models have -US suffix. | ||
| G3TA-OA202SZ-US DC24 | G3TA Output 2A/100-240VAC at 60°C 24 VDC | OMRON | Type: G3TA Output Module SSR | Isolation: Phototriac | Zero Cross: Yes | Indicator: Yes | Load: 2A/100-240VAC at 60°C | Input Voltage: 24 VDC | Note: Specify rated voltage when ordering. UL/CSA certified models have -US suffix. | ||
| G3TA-OA202SL-US DC12 | G3TA Output 2A/100-240VAC at 60°C 12 VDC | OMRON | Type: G3TA Output Module SSR | Isolation: Phototriac | Zero Cross: No | Indicator: Yes | Load: 2A/100-240VAC at 60°C | Input Voltage: 12 VDC | Note: Specify rated voltage when ordering. UL/CSA certified models have -US suffix. | ||
| G3TA-OA202SL-US DC24 | G3TA Output 2A/100-240VAC at 60°C 24 VDC | OMRON | Type: G3TA Output Module SSR | Isolation: Phototriac | Zero Cross: No | Indicator: Yes | Load: 2A/100-240VAC at 60°C | Input Voltage: 24 VDC | Note: Specify rated voltage when ordering. UL/CSA certified models have -US suffix. | ||
| G3TA-ODX02S-US DC12 | G3TA Output 2A/5-48VDC at 60°C 12 VDC | OMRON | Type: G3TA Output Module SSR | Isolation: Photocoupler | Zero Cross: --- | Indicator: --- | Load: 2A/5-48VDC at 60°C | Input Voltage: 12 VDC | Note: Specify rated voltage when ordering. UL/CSA certified models have -US suffix. | ||
| G3TA-ODX02S-US DC24 | G3TA Output 2A/5-48VDC at 60°C 24 VDC | OMRON | Type: G3TA Output Module SSR | Isolation: Photocoupler | Zero Cross: --- | Indicator: --- | Load: 2A/5-48VDC at 60°C | Input Voltage: 24 VDC | Note: Specify rated voltage when ordering. UL/CSA certified models have -US suffix. | ||
| G3TA-OD201S-US DC12 | G3TA Output 1A/48-200VDC at 40°C 12 VDC | OMRON | Type: G3TA Output Module SSR | Isolation: Photocoupler | Zero Cross: --- | Indicator: --- | Load: 1A/48-200VDC at 40°C | Input Voltage: 12 VDC | Note: Specify rated voltage when ordering. UL/CSA certified models have -US suffix. | ||
| G3TA-OD201S-US DC24 | G3TA Output 1A/48-200VDC at 40°C 24 VDC | OMRON | Type: G3TA Output Module SSR | Isolation: Photocoupler | Zero Cross: --- | Indicator: --- | Load: 1A/48-200VDC at 40°C | Input Voltage: 24 VDC | Note: Specify rated voltage when ordering. UL/CSA certified models have -US suffix. | ||
| P7TF-IS16 | G3TA Socket Input NPN (- common) | OMRON | Type: G3TA Connecting Socket (P7TF) | I/O: Input | Common: NPN (- common) | Voltage: 12/24/100-110VDC / 100-110/200-220VAC | ||
| P7TF-OS16 | G3TA Socket Output NPN (+ common) | OMRON | Type: G3TA Connecting Socket (P7TF) | I/O: Output | Common: NPN (+ common) | Voltage: 12/24 VDC | ||
| P7TF-OS16-1 | G3TA Socket Output PNP (- common) | OMRON | Type: G3TA Connecting Socket (P7TF) | I/O: Output | Common: PNP (- common) | Voltage: 12/24 VDC | ||
| P7TF-OS08 | G3TA Socket Output 8-pt NPN (+ common) | OMRON | Type: G3TA Connecting Socket (P7TF) | I/O: Output 8-pt | Common: NPN (+ common) | Voltage: 12/24 VDC | ||
| P7TF-05 | G3TA Socket Universal --- | OMRON | Type: G3TA Connecting Socket (P7TF) | I/O: Universal | Common: --- | Voltage: --- |
