![[OMRON] — J7TC Thermal Overload Relay (for J7KC, 0.1-13A, Overload+Phase-loss Protection)](https://img.prosourcemro.com/2026/05/001-559-1024x1024.png)
Overload Relays
Omron

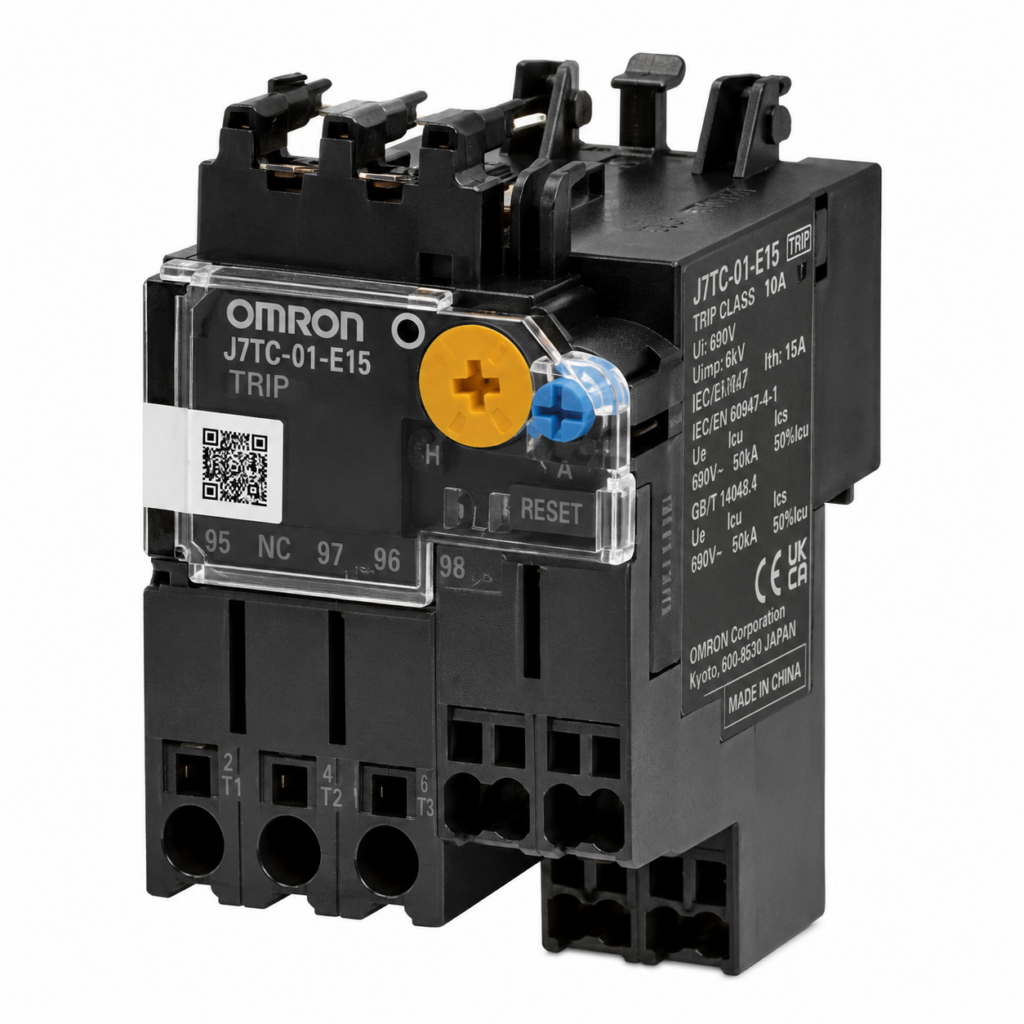

[OMRON] — J7TC Thermal Overload Relay (for J7KC, 0.1-13A, Overload+Phase-loss Protection)
Family ID: OMRON-J7TC
Motor Protection from Overload and Phase-loss by Combination with J7KC for up to 2.2 kW (240 VAC) / 5.5 kW (440 VAC)
26 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| J7TC-01-E15 | J7TC TOR 0.1-0.15A | OMRON | Type: J7TC Thermal Overload Relay | Setting Range: 0.1-0.15 A | Protection: Overload + Phase-loss | Compatible Contactor: J7KC-12 | Poles: 3-pole | ||
| J7TC-01-E20 | J7TC TOR 0.13-0.2A | OMRON | Type: J7TC Thermal Overload Relay | Setting Range: 0.13-0.2 A | Protection: Overload + Phase-loss | Compatible Contactor: J7KC-12 | Poles: 3-pole | ||
| J7TC-01-E27 | J7TC TOR 0.18-0.27A | OMRON | Type: J7TC Thermal Overload Relay | Setting Range: 0.18-0.27 A | Protection: Overload + Phase-loss | Compatible Contactor: J7KC-12 | Poles: 3-pole | ||
| J7TC-01-E36 | J7TC TOR 0.24-0.36A | OMRON | Type: J7TC Thermal Overload Relay | Setting Range: 0.24-0.36 A | Protection: Overload + Phase-loss | Compatible Contactor: J7KC-12 | Poles: 3-pole | ||
| J7TC-01-E52 | J7TC TOR 0.34-0.52A | OMRON | Type: J7TC Thermal Overload Relay | Setting Range: 0.34-0.52 A | Protection: Overload + Phase-loss | Compatible Contactor: J7KC-12 | Poles: 3-pole | ||
| J7TC-01-E72 | J7TC TOR 0.48-0.72A | OMRON | Type: J7TC Thermal Overload Relay | Setting Range: 0.48-0.72 A | Protection: Overload + Phase-loss | Compatible Contactor: J7KC-12 | Poles: 3-pole | ||
| J7TC-01-E96 | J7TC TOR 0.64-0.96A | OMRON | Type: J7TC Thermal Overload Relay | Setting Range: 0.64-0.96 A | Protection: Overload + Phase-loss | Compatible Contactor: J7KC-12 | Poles: 3-pole | ||
| J7TC-01-1E2 | J7TC TOR 0.8-1.2A | OMRON | Type: J7TC Thermal Overload Relay | Setting Range: 0.8-1.2 A | Protection: Overload + Phase-loss | Compatible Contactor: J7KC-12 | Poles: 3-pole | ||
| J7TC-01-1E4 | J7TC TOR 0.95-1.45A | OMRON | Type: J7TC Thermal Overload Relay | Setting Range: 0.95-1.45 A | Protection: Overload + Phase-loss | Compatible Contactor: J7KC-12 | Poles: 3-pole | ||
| J7TC-01-1E6 | J7TC TOR 1.1-1.65A | OMRON | Type: J7TC Thermal Overload Relay | Setting Range: 1.1-1.65 A | Protection: Overload + Phase-loss | Compatible Contactor: J7KC-12 | Poles: 3-pole | ||
| J7TC-01-2E1 | J7TC TOR 1.4-2.1A | OMRON | Type: J7TC Thermal Overload Relay | Setting Range: 1.4-2.1 A | Protection: Overload + Phase-loss | Compatible Contactor: J7KC-12 | Poles: 3-pole | ||
| J7TC-01-2E6 | J7TC TOR 1.7-2.6A | OMRON | Type: J7TC Thermal Overload Relay | Setting Range: 1.7-2.6 A | Protection: Overload + Phase-loss | Compatible Contactor: J7KC-12 | Poles: 3-pole | ||
| J7TC-01-3E4 | J7TC TOR 2.2-3.4A | OMRON | Type: J7TC Thermal Overload Relay | Setting Range: 2.2-3.4 A | Protection: Overload + Phase-loss | Compatible Contactor: J7KC-12 | Poles: 3-pole | ||
| J7TC-01-4E2 | J7TC TOR 2.8-4.2A | OMRON | Type: J7TC Thermal Overload Relay | Setting Range: 2.8-4.2 A | Protection: Overload + Phase-loss | Compatible Contactor: J7KC-12 | Poles: 3-pole | ||
| J7TC-01-6 | J7TC TOR 4-6A | OMRON | Type: J7TC Thermal Overload Relay | Setting Range: 4-6 A | Protection: Overload + Phase-loss | Compatible Contactor: J7KC-12 | Poles: 3-pole | ||
| J7TC-01-7E5 | J7TC TOR 5-7.5A | OMRON | Type: J7TC Thermal Overload Relay | Setting Range: 5-7.5 A | Protection: Overload + Phase-loss | Compatible Contactor: J7KC-12 | Poles: 3-pole | ||
| J7TC-01-9 | J7TC TOR 6-9A | OMRON | Type: J7TC Thermal Overload Relay | Setting Range: 6-9 A | Protection: Overload + Phase-loss | Compatible Contactor: J7KC-12 | Poles: 3-pole | ||
| J7TC-01-10 | J7TC TOR 7-10.5A | OMRON | Type: J7TC Thermal Overload Relay | Setting Range: 7-10.5 A | Protection: Overload + Phase-loss | Compatible Contactor: J7KC-12 | Poles: 3-pole | ||
| J7TC-01-13 | J7TC TOR 9-13A | OMRON | Type: J7TC Thermal Overload Relay | Setting Range: 9-13 A | Protection: Overload + Phase-loss | Compatible Contactor: J7KC-12 | Poles: 3-pole | ||
| J77KC-T | J7TC Insulation Stop main circuit (30 pcs/bag) | OMRON | Type: J7TC Accessory | Description: Insulation Stop main circuit (30 pcs/bag) | ||
| J77KC-K | J7TC Insulation Stop auxiliary circuit (30 pcs/bag) | OMRON | Type: J7TC Accessory | Description: Insulation Stop auxiliary circuit (30 pcs/bag) | ||
| J78KC | J7TC Removal Tool | OMRON | Type: J7TC Accessory | Description: Removal Tool | ||
| PFP-100N | J7TC DIN Rail 1m | OMRON | Type: J7TC Accessory | Description: DIN Rail 1m | ||
| PFP-50N | J7TC DIN Rail 0.5m | OMRON | Type: J7TC Accessory | Description: DIN Rail 0.5m | ||
| PFP-100N2 | J7TC DIN Rail Deep 1m | OMRON | Type: J7TC Accessory | Description: DIN Rail Deep 1m | ||
| PFP-M | J7TC End Plate | OMRON | Type: J7TC Accessory | Description: End Plate |
