Connectivity
Omron

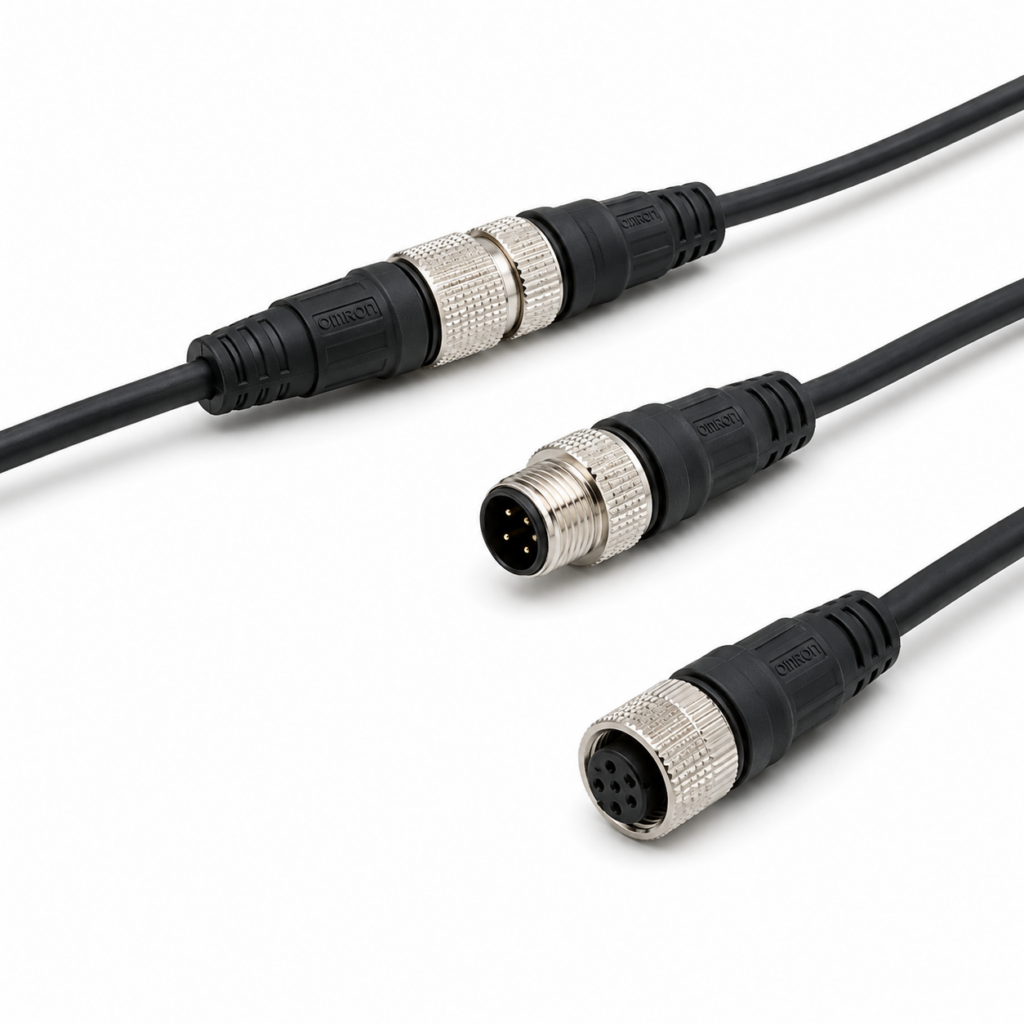

[OMRON] — XS5WR Smartclick Oil-resistant Connector, Socket+Plug Both Ends, Fluororesin Cable (4-Pole)
Family ID: OMRON-XS5WR
Smartclick Oil-resistant Connectors with Improved Oil Resistance. Cable with fluororesin sheath. 4-pole, M12.
9 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| XS5WR-D425-D81-RB1 | XS5WR double-ended M12 4-pin Smartclick cable, 2 m | OMRON | Type: Connectors connected to cable, socket and plug on cable ends | Connector Form: M12 4-pin A-coding (for DC sensor) | Cable Outer Diameter: 4 mm | Number of Conductors: 4 | Cable Length: 2 m | Wire Colors: Pin 1 Brown / Pin 2 White / Pin 3 Blue / Pin 4 Black | Cable Connection Direction: Straight (Socket) / Straight (Plug) | Rated Current: 1 A | Rated Voltage: 30 VDC | Contact Resistance: 40 mΩ max (20 mV max, 100 mA max) | Insulation Resistance: 1,000 MΩ min at 500 VDC | Dielectric Strength: 1,500 VAC 1 min (leakage 1 mA max) | Insertion Tolerance: 50 times min | Lock Strength: Tensile 100 N/15 s / Torsion 1 N·m/15 s | Cable Holding Strength: Tensile 100 N/15 s | Contact Material: Phosphor bronze with gold plating | Fixtures Material: Zinc alloy with nickel plating (lock: stainless steel) | Pin Block Material: PA resin (UL 94 HB) | O-ring Material: New rubber material combining HNBR and fluororubber | Cover Material: PA resin (UL 94 HB) | Cable Material: Fluororesin sheath, 0.2 mm² core wire | Ambient Temperature: −25 to +70 °C operating and storage | Ambient Humidity: 20-85% | Degree of Protection: IP67 + IP67G | Sealing Method: Forming/Sealing + Surface Bonding (cable joint) / Smartclick + O-ring (mating) | Compatible OMRON Devices: E2ER-X@D@-M1TGJ / E2ERZ-X@D@-M1TGJ / D4ER-@@@N-DTK1EJ / E3ZR-C@@1@-M1TJ / XS5FR / other M12 Smartclick devices | Application: Extension cable / interconnection between two oil-resistant Smartclick devices | Oil Resistance: 4 years (verified by OMRON's accelerated evaluation tests) | Cable Sheath: Fluororesin (patent pending) — resists both water-soluble and water-insoluble cutting oils | Evaluation Standard: Passed IP67G (JIS C 0920 Annex 1) and OMRON's Oil-resistant Component Evaluation Standards | Applicable Oil Types: JIS K 2241:2000 specified cutting oils | Evaluation Temperature: 35 °C max | ||
| XS5WR-D425-G81-RB1 | XS5WR double-ended M12 4-pin Smartclick cable, 5 m | OMRON | Type: Connectors connected to cable, socket and plug on cable ends | Connector Form: M12 4-pin A-coding (for DC sensor) | Cable Outer Diameter: 4 mm | Number of Conductors: 4 | Cable Length: 5 m | Wire Colors: Pin 1 Brown / Pin 2 White / Pin 3 Blue / Pin 4 Black | Cable Connection Direction: Straight (Socket) / Straight (Plug) | Rated Current: 1 A | Rated Voltage: 30 VDC | Contact Resistance: 40 mΩ max (20 mV max, 100 mA max) | Insulation Resistance: 1,000 MΩ min at 500 VDC | Dielectric Strength: 1,500 VAC 1 min (leakage 1 mA max) | Insertion Tolerance: 50 times min | Lock Strength: Tensile 100 N/15 s / Torsion 1 N·m/15 s | Cable Holding Strength: Tensile 100 N/15 s | Contact Material: Phosphor bronze with gold plating | Fixtures Material: Zinc alloy with nickel plating (lock: stainless steel) | Pin Block Material: PA resin (UL 94 HB) | O-ring Material: New rubber material combining HNBR and fluororubber | Cover Material: PA resin (UL 94 HB) | Cable Material: Fluororesin sheath, 0.2 mm² core wire | Ambient Temperature: −25 to +70 °C operating and storage | Ambient Humidity: 20-85% | Degree of Protection: IP67 + IP67G | Sealing Method: Forming/Sealing + Surface Bonding (cable joint) / Smartclick + O-ring (mating) | Compatible OMRON Devices: E2ER-X@D@-M1TGJ / E2ERZ-X@D@-M1TGJ / D4ER-@@@N-DTK1EJ / E3ZR-C@@1@-M1TJ / XS5FR / other M12 Smartclick devices | Application: Extension cable / interconnection between two oil-resistant Smartclick devices | Oil Resistance: 4 years (verified by OMRON's accelerated evaluation tests) | Cable Sheath: Fluororesin (patent pending) — resists both water-soluble and water-insoluble cutting oils | Evaluation Standard: Passed IP67G (JIS C 0920 Annex 1) and OMRON's Oil-resistant Component Evaluation Standards | Applicable Oil Types: JIS K 2241:2000 specified cutting oils | Evaluation Temperature: 35 °C max | ||
| XS5WR-D425-J81-RB1 | XS5WR double-ended M12 4-pin Smartclick cable, 10 m | OMRON | Type: Connectors connected to cable, socket and plug on cable ends | Connector Form: M12 4-pin A-coding (for DC sensor) | Cable Outer Diameter: 4 mm | Number of Conductors: 4 | Cable Length: 10 m | Wire Colors: Pin 1 Brown / Pin 2 White / Pin 3 Blue / Pin 4 Black | Cable Connection Direction: Straight (Socket) / Straight (Plug) | Rated Current: 1 A | Rated Voltage: 30 VDC | Contact Resistance: 40 mΩ max (20 mV max, 100 mA max) | Insulation Resistance: 1,000 MΩ min at 500 VDC | Dielectric Strength: 1,500 VAC 1 min (leakage 1 mA max) | Insertion Tolerance: 50 times min | Lock Strength: Tensile 100 N/15 s / Torsion 1 N·m/15 s | Cable Holding Strength: Tensile 100 N/15 s | Contact Material: Phosphor bronze with gold plating | Fixtures Material: Zinc alloy with nickel plating (lock: stainless steel) | Pin Block Material: PA resin (UL 94 HB) | O-ring Material: New rubber material combining HNBR and fluororubber | Cover Material: PA resin (UL 94 HB) | Cable Material: Fluororesin sheath, 0.2 mm² core wire | Ambient Temperature: −25 to +70 °C operating and storage | Ambient Humidity: 20-85% | Degree of Protection: IP67 + IP67G | Sealing Method: Forming/Sealing + Surface Bonding (cable joint) / Smartclick + O-ring (mating) | Compatible OMRON Devices: E2ER-X@D@-M1TGJ / E2ERZ-X@D@-M1TGJ / D4ER-@@@N-DTK1EJ / E3ZR-C@@1@-M1TJ / XS5FR / other M12 Smartclick devices | Application: Extension cable / interconnection between two oil-resistant Smartclick devices | Oil Resistance: 4 years (verified by OMRON's accelerated evaluation tests) | Cable Sheath: Fluororesin (patent pending) — resists both water-soluble and water-insoluble cutting oils | Evaluation Standard: Passed IP67G (JIS C 0920 Annex 1) and OMRON's Oil-resistant Component Evaluation Standards | Applicable Oil Types: JIS K 2241:2000 specified cutting oils | Evaluation Temperature: 35 °C max | ||
| XS5WR-D425-D81-RB1 | Socket and Plug on both cable ends, fluororesin, 2 m | OMRON | Type: Socket and Plug on both cable ends | Poles: 4 | Cable Outer Diameter: 4 mm | Conductors: 4 | Cable: Fluororesin sheath | Cable Length: 2 m | Oil Resistance: Improved (fluororesin sheath) | ||
| XS5WR-D425-G81-RB1 | Socket and Plug on both cable ends, fluororesin, 5 m | OMRON | Type: Socket and Plug on both cable ends | Poles: 4 | Cable Outer Diameter: 4 mm | Conductors: 4 | Cable: Fluororesin sheath | Cable Length: 5 m | Oil Resistance: Improved (fluororesin sheath) | ||
| XS5WR-D425-J81-RB1 | Socket and Plug on both cable ends, fluororesin, 10 m | OMRON | Type: Socket and Plug on both cable ends | Poles: 4 | Cable Outer Diameter: 4 mm | Conductors: 4 | Cable: Fluororesin sheath | Cable Length: 10 m | Oil Resistance: Improved (fluororesin sheath) | ||
| XS5WR-D425-D81-RB1 | OMRON-XS5WR-OIL Socket and Plug on both cable ends, fluororesin, 2 m | OMRON | Type: Socket and Plug on both cable ends | Poles: 4 | Cable Outer Diameter: 4 mm | Conductors: 4 | Cable: Fluororesin sheath | Cable Length: 2 m | Oil Resistance: Improved (fluororesin sheath) | ||
| XS5WR-D425-G81-RB1 | OMRON-XS5WR-OIL Socket and Plug on both cable ends, fluororesin, 5 m | OMRON | Type: Socket and Plug on both cable ends | Poles: 4 | Cable Outer Diameter: 4 mm | Conductors: 4 | Cable: Fluororesin sheath | Cable Length: 5 m | Oil Resistance: Improved (fluororesin sheath) | ||
| XS5WR-D425-J81-RB1 | OMRON-XS5WR-OIL Socket and Plug on both cable ends, fluororesin, 10 m | OMRON | Type: Socket and Plug on both cable ends | Poles: 4 | Cable Outer Diameter: 4 mm | Conductors: 4 | Cable: Fluororesin sheath | Cable Length: 10 m | Oil Resistance: Improved (fluororesin sheath) |
