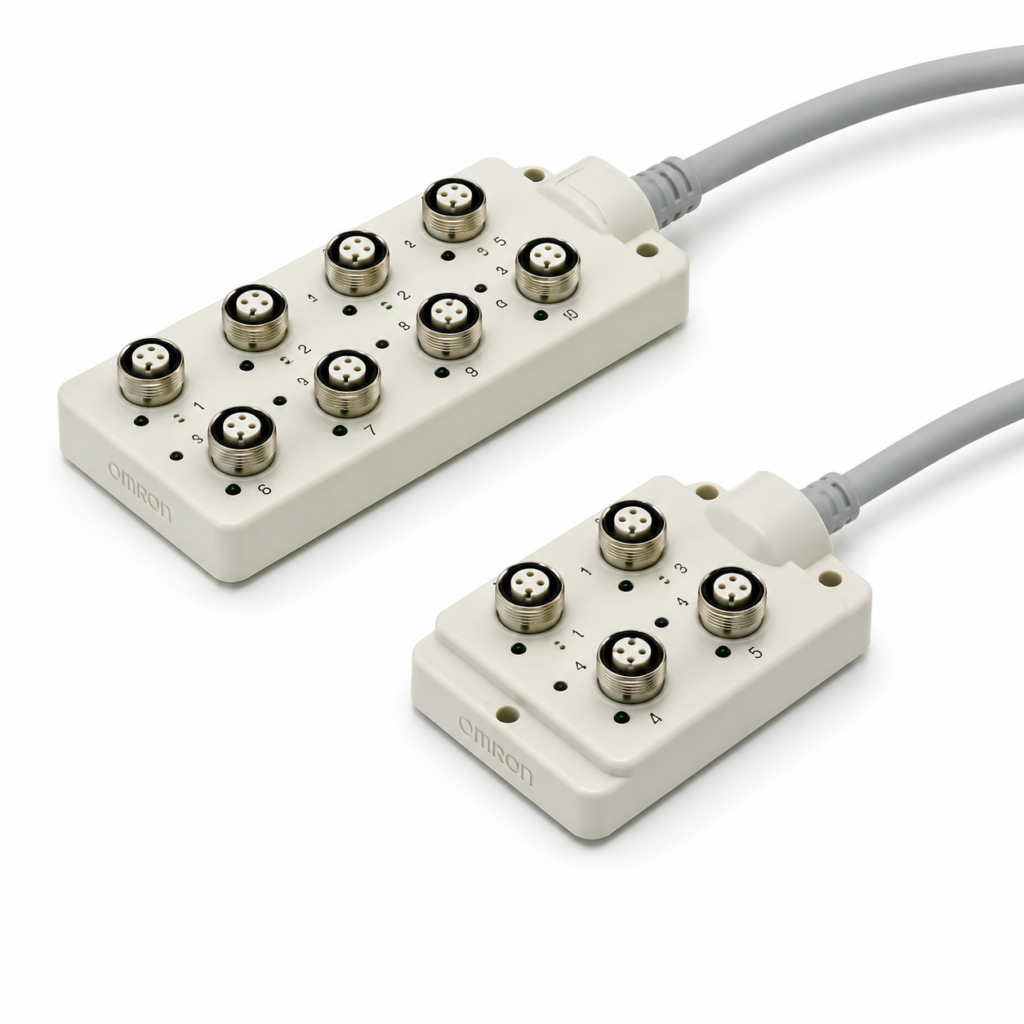

[OMRON] — XW3D Connector Terminal Box (M12, 5-pole, PNP/NPN/2-wire DC)
Family ID: OMRON-XW3D
Connector Terminal Boxes. Simple Wiring of Sensors, Limit Switches and Actuators.
15 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| XW3D-P453-G11 | XW3D PNP 3-wire DC, 4-port, 1 I/O/port, 5 m | OMRON | Connector Poles: 5 | Cable: Standard PVC | Circuit: PNP | Sensor Type: 3-wire DC | Connection Ports: 4 | I/O per Port: 1 | Cable Length: 5 m | ||
| XW3D-P453-H11 | XW3D PNP 3-wire DC, 4-port, 1 I/O/port, 7 m | OMRON | Connector Poles: 5 | Cable: Standard PVC | Circuit: PNP | Sensor Type: 3-wire DC | Connection Ports: 4 | I/O per Port: 1 | Cable Length: 7 m | ||
| XW3D-P453-J11 | XW3D PNP 3-wire DC, 4-port, 1 I/O/port, 10 m | OMRON | Connector Poles: 5 | Cable: Standard PVC | Circuit: PNP | Sensor Type: 3-wire DC | Connection Ports: 4 | I/O per Port: 1 | Cable Length: 10 m | ||
| XW3D-P853-G11 | XW3D PNP 3-wire DC, 8-port, 1 I/O/port, 5 m | OMRON | Connector Poles: 5 | Cable: Standard PVC | Circuit: PNP | Sensor Type: 3-wire DC | Connection Ports: 8 | I/O per Port: 1 | Cable Length: 5 m | ||
| XW3D-P853-H11 | XW3D PNP 3-wire DC, 8-port, 1 I/O/port, 7 m | OMRON | Connector Poles: 5 | Cable: Standard PVC | Circuit: PNP | Sensor Type: 3-wire DC | Connection Ports: 8 | I/O per Port: 1 | Cable Length: 7 m | ||
| XW3D-P853-J11 | XW3D PNP 3-wire DC, 8-port, 1 I/O/port, 10 m | OMRON | Connector Poles: 5 | Cable: Standard PVC | Circuit: PNP | Sensor Type: 3-wire DC | Connection Ports: 8 | I/O per Port: 1 | Cable Length: 10 m | ||
| XW3D-P853-K11 | XW3D PNP 3-wire DC, 8-port, 1 I/O/port, 15 m | OMRON | Connector Poles: 5 | Cable: Standard PVC | Circuit: PNP | Sensor Type: 3-wire DC | Connection Ports: 8 | I/O per Port: 1 | Cable Length: 15 m | ||
| XW3D-P457-G11 | XW3D PNP 3-wire DC, 4-port, 2 I/O/port, 5 m | OMRON | Connector Poles: 5 | Cable: Standard PVC | Circuit: PNP | Sensor Type: 3-wire DC | Connection Ports: 4 | I/O per Port: 2 | Cable Length: 5 m | ||
| XW3D-P457-H11 | XW3D PNP 3-wire DC, 4-port, 2 I/O/port, 7 m | OMRON | Connector Poles: 5 | Cable: Standard PVC | Circuit: PNP | Sensor Type: 3-wire DC | Connection Ports: 4 | I/O per Port: 2 | Cable Length: 7 m | ||
| XW3D-P457-J11 | XW3D PNP 3-wire DC, 4-port, 2 I/O/port, 10 m | OMRON | Connector Poles: 5 | Cable: Standard PVC | Circuit: PNP | Sensor Type: 3-wire DC | Connection Ports: 4 | I/O per Port: 2 | Cable Length: 10 m | ||
| XW3D-P455-G11 | XW3D NPN 3-wire DC, 4-port, 1 I/O/port, 5 m | OMRON | Connector Poles: 5 | Cable: Standard PVC | Circuit: NPN | Sensor Type: 3-wire DC | Connection Ports: 4 | I/O per Port: 1 | Cable Length: 5 m | ||
| XW3D-P855-G11 | XW3D NPN 3-wire DC, 8-port, 1 I/O/port, 5 m | OMRON | Connector Poles: 5 | Cable: Standard PVC | Circuit: NPN | Sensor Type: 3-wire DC | Connection Ports: 8 | I/O per Port: 1 | Cable Length: 5 m | ||
| XW3D-P458-G11 | XW3D NPN 3-wire DC, 4-port, 2 I/O/port, 5 m | OMRON | Connector Poles: 5 | Cable: Standard PVC | Circuit: NPN | Sensor Type: 3-wire DC | Connection Ports: 4 | I/O per Port: 2 | Cable Length: 5 m | ||
| XW3D-P452-G11 | XW3D PNP/NPN 2-wire DC, 4-port, 1 I/O/port, 5 m | OMRON | Connector Poles: 5 | Cable: Standard PVC | Circuit: PNP/NPN | Sensor Type: 2-wire DC | Connection Ports: 4 | I/O per Port: 1 | Cable Length: 5 m | ||
| XW3D-P852-G11 | XW3D PNP/NPN 2-wire DC, 8-port, 1 I/O/port, 5 m | OMRON | Connector Poles: 5 | Cable: Standard PVC | Circuit: PNP/NPN | Sensor Type: 2-wire DC | Connection Ports: 8 | I/O per Port: 1 | Cable Length: 5 m |
