Connectivity
Omron

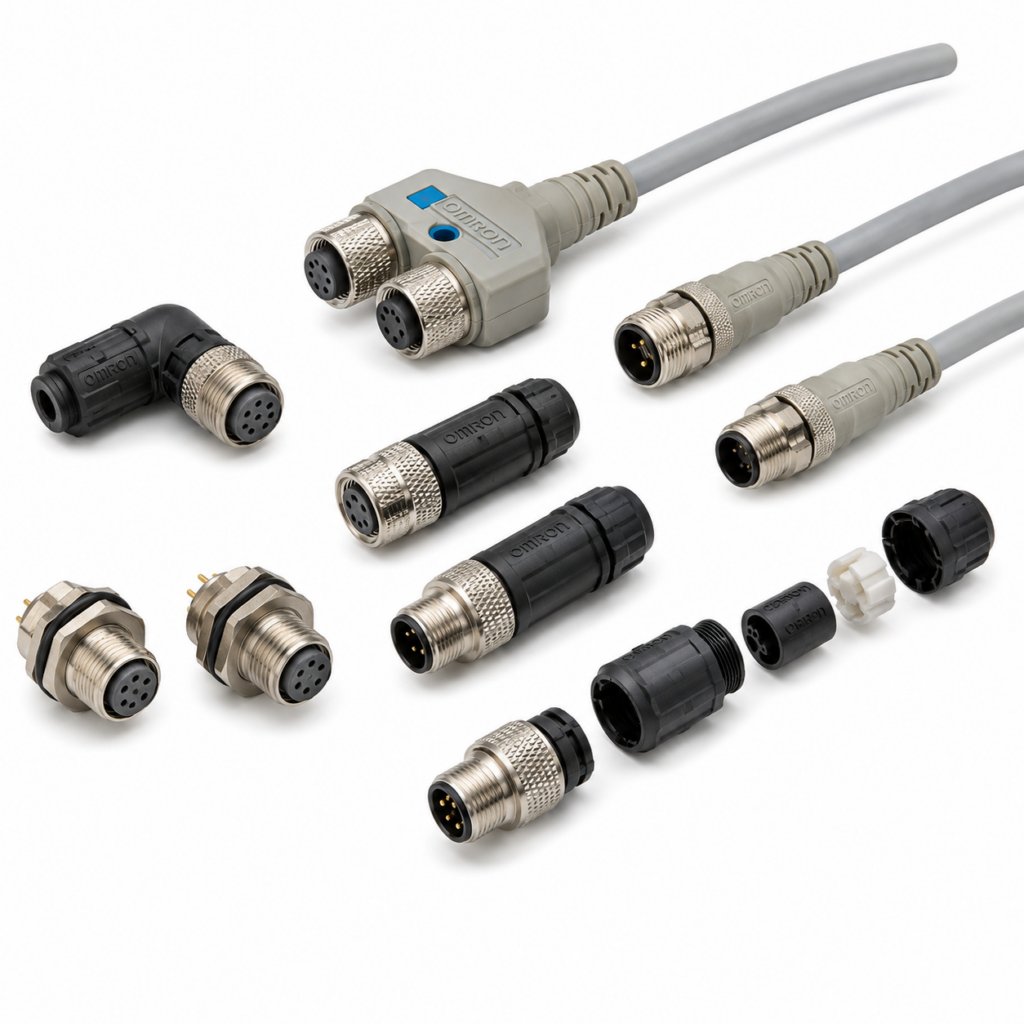

[OMRON] — XS2P/XS2M M12 Water-resistant Panel-mounting Socket and Plug (4/5-Pole)
Family ID: OMRON-XS2PM
Round Water-resistant Connectors (M12 Threads). Water- and Environment-resistive FA Connectors Save Wiring and Maintenance Effort.
23 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| XS2P-D421-2 | XS2P, 4-pole, Rear lock, Solder cup pin, DC | OMRON | Type: XS2P | Poles: 4 | Lock: Rear lock | Pin: Solder cup pin | Signal: DC | Thread: M12 | ||
| XS2P-A421-2 | XS2P, 4-pole, Rear lock, Solder cup pin, AC | OMRON | Type: XS2P | Poles: 4 | Lock: Rear lock | Pin: Solder cup pin | Signal: AC | Thread: M12 | ||
| XS2P-D422-2 | XS2P, 4-pole, Front lock, Solder cup pin, DC | OMRON | Type: XS2P | Poles: 4 | Lock: Front lock | Pin: Solder cup pin | Signal: DC | Thread: M12 | ||
| XS2P-A422-2 | XS2P, 4-pole, Front lock, Solder cup pin, AC | OMRON | Type: XS2P | Poles: 4 | Lock: Front lock | Pin: Solder cup pin | Signal: AC | Thread: M12 | ||
| XS2P-D422-1 | XS2P, 4-pole, Front lock, DIP pin, DC | OMRON | Type: XS2P | Poles: 4 | Lock: Front lock | Pin: DIP pin | Signal: DC | Thread: M12 | ||
| XS2P-D522-2 | XS2P, 5-pole, Front lock, Solder cup pin, DC | OMRON | Type: XS2P | Poles: 5 | Lock: Front lock | Pin: Solder cup pin | Signal: DC | Thread: M12 | ||
| XS2P-D522-1 | XS2P, 5-pole, Front lock, DIP pin, DC | OMRON | Type: XS2P | Poles: 5 | Lock: Front lock | Pin: DIP pin | Signal: DC | Thread: M12 | ||
| XS2M-D421 | XS2M Sensor-embedded, 4-pole, Screw threads, Solder cup pin, DC | OMRON | Type: XS2M Sensor-embedded | Poles: 4 | Lock: Screw threads | Pin: Solder cup pin | Signal: DC | Thread: M12 | ||
| XS2M-A421 | XS2M Sensor-embedded, 4-pole, Screw threads, Solder cup pin, AC | OMRON | Type: XS2M Sensor-embedded | Poles: 4 | Lock: Screw threads | Pin: Solder cup pin | Signal: AC | Thread: M12 | ||
| XS2M-D422 | XS2M Sensor-embedded, 4-pole, No screw threads, Solder cup pin, DC | OMRON | Type: XS2M Sensor-embedded | Poles: 4 | Lock: No screw threads | Pin: Solder cup pin | Signal: DC | Thread: M12 | ||
| XS2M-A422 | XS2M Sensor-embedded, 4-pole, No screw threads, Solder cup pin, AC | OMRON | Type: XS2M Sensor-embedded | Poles: 4 | Lock: No screw threads | Pin: Solder cup pin | Signal: AC | Thread: M12 | ||
| XS2M-D423 | XS2M Panel Resin, 4-pole, Flange-mounting, Solder cup pin, DC | OMRON | Type: XS2M Panel Resin | Poles: 4 | Lock: Flange-mounting | Pin: Solder cup pin | Signal: DC | Thread: M12 | ||
| XS2M-A423 | XS2M Panel Resin, 4-pole, Flange-mounting, Solder cup pin, AC | OMRON | Type: XS2M Panel Resin | Poles: 4 | Lock: Flange-mounting | Pin: Solder cup pin | Signal: AC | Thread: M12 | ||
| XS2M-D424-1 | XS2M Panel Resin, 4-pole, Screw-mounting, DIP pin, DC | OMRON | Type: XS2M Panel Resin | Poles: 4 | Lock: Screw-mounting | Pin: DIP pin | Signal: DC | Thread: M12 | ||
| XS2M-A424-1 | XS2M Panel Resin, 4-pole, Screw-mounting, DIP pin, AC | OMRON | Type: XS2M Panel Resin | Poles: 4 | Lock: Screw-mounting | Pin: DIP pin | Signal: AC | Thread: M12 | ||
| XS2M-D424-2 | XS2M Panel Resin, 4-pole, Screw-mounting, Solder cup pin, DC | OMRON | Type: XS2M Panel Resin | Poles: 4 | Lock: Screw-mounting | Pin: Solder cup pin | Signal: DC | Thread: M12 | ||
| XS2M-A424-2 | XS2M Panel Resin, 4-pole, Screw-mounting, Solder cup pin, AC | OMRON | Type: XS2M Panel Resin | Poles: 4 | Lock: Screw-mounting | Pin: Solder cup pin | Signal: AC | Thread: M12 | ||
| XS2M-D524-1 | XS2M Panel Resin, 5-pole, Screw-mounting, DIP pin, DC | OMRON | Type: XS2M Panel Resin | Poles: 5 | Lock: Screw-mounting | Pin: DIP pin | Signal: DC | Thread: M12 | ||
| XS2M-D524-2 | XS2M Panel Resin, 5-pole, Screw-mounting, Solder cup pin, DC | OMRON | Type: XS2M Panel Resin | Poles: 5 | Lock: Screw-mounting | Pin: Solder cup pin | Signal: DC | Thread: M12 | ||
| XS2M-D424-3 | XS2M Panel Metal, 4-pole, Screw-mounting, DIP pin, DC | OMRON | Type: XS2M Panel Metal | Poles: 4 | Lock: Screw-mounting | Pin: DIP pin | Signal: DC | Thread: M12 | ||
| XS2M-D424-4 | XS2M Panel Metal, 4-pole, Screw-mounting, Solder cup pin, DC | OMRON | Type: XS2M Panel Metal | Poles: 4 | Lock: Screw-mounting | Pin: Solder cup pin | Signal: DC | Thread: M12 | ||
| XS2M-D524-3 | XS2M Panel Metal, 5-pole, Screw-mounting, DIP pin, DC | OMRON | Type: XS2M Panel Metal | Poles: 5 | Lock: Screw-mounting | Pin: DIP pin | Signal: DC | Thread: M12 | ||
| XS2M-D524-4 | XS2M Panel Metal, 5-pole, Screw-mounting, Solder cup pin, DC | OMRON | Type: XS2M Panel Metal | Poles: 5 | Lock: Screw-mounting | Pin: Solder cup pin | Signal: DC | Thread: M12 |
