[OSG] — 81006K Long End Mill
End Mills OSG

[OSG] — 81006K Long End Mill

Family ID: 311-4854

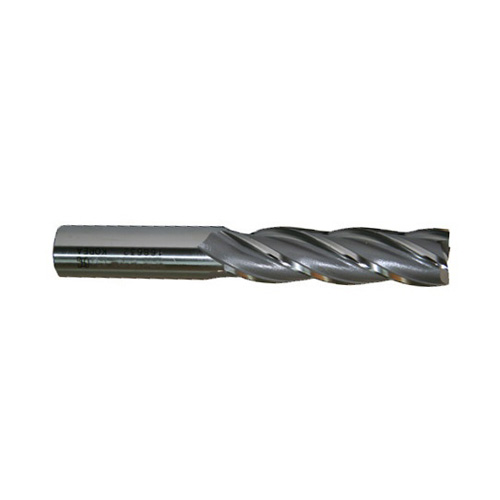

OSG Long End Mill delivers extended-reach milling capability for precise slot, pocket, and contour cutting operations, sourced direct from Korea. The longer flute length makes it well suited for deep cavity work and profiling where standard-length end mills cannot reach the full depth of the feature. Request a quote today for export-ready supply at competitive pricing through a KITA-registered Korean exporter.

31 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
311-4854 81006K OSG 4F-3MM(EML)(81006K) | Spec: 3 | Flute Length: 15 | Overall Length: 60 | Product Name: Standard 4F | Shank d: 6
311-4863 81008K OSG 4F-4MM(EML)(81008K) | Spec: 4 | Flute Length: 20 | Overall Length: 60 | Description: Standard 4F | Shank d: 8
311-4872 81010K OSG 4F-5MM(EML)(81010K) | Spec: 5 | Flute Length: 25 | Overall Length: 60 | Product Name: Standard 4F | Shank Diameter: 8
311-4881 81012K OSG 4F-6MM(EML)(81012K) | Spec: 6 | Flute Length: 25 | Overall Length: 60 | Product Name: Standard 4F | Shank Diameter: 8
311-4890 81014K OSG 4F-7MM(EML)(81014K) | Spec: 7 | Flute Length: 35 | Overall Length: 75 | Product Name: Standard 4F | Shank Diameter: 10
311-4906 81016K OSG 4F-8MM(EML)(81016K) | Spec: 8 | Flute Length: 35 | Overall Length: 75 | Type: Standard 4F | Shank d: 10
311-4924 81018K OSG 4F-9MM(EML)(81018K) | Spec: 9 | Flute Length: 45 | Overall Length: 90 | Product Name: Standard 4F | Shank d: 10
311-4942 81020K OSG 4F-10MM(EML)(81020K) | Spec: 10 | Flute Length: 45 | Overall Length: 90 | Description: General Purpose 4F | Shank d: 10
311-4951 81021K OSG 4F-11MM(EML)(81021K) | Spec: 11 | Flute Length: 55 | Overall Length: 105 | Product Name: Standard 4F | Shank d: 12
311-4960 81022K OSG 4F-12MM(EML)(81022K) | Spec: 12 | Flute Length: 55 | Overall Length: 105 | Product Name: General 4F | Shank Diameter: 12
311-4988 81023K OSG 4F-13MM(EML)(81023K) | Spec: 13 | Flute Length: 55 | Overall Length: 105 | Description: Standard 4-Flute | Shank Diameter: 12
311-4997 81024K OSG 4F-14MM(EML)(81024K) | Spec: 14 | Flute Length: 55 | Overall Length: 110 | Product Name: General 4F | Shank Diameter: 16
311-5011 81026K OSG 4F-16MM(EML)(81026K) | Spec: 16 | Flute Length: 65 | Overall Length: 120 | Product Name: Standard 4F | Shank Diameter: 16
311-5039 81028K OSG 4F-18MM(EML)(81028K) | Spec: 18 | Flute Length: 65 | Overall Length: 120 | Product Name: General 4F | Shank Diameter: 16
311-5048 81029K OSG 4F-19MM(EML)(81029K) | Spec: 19 | Flute Length: 75 | Overall Length: 140 | Description: General 4F | Shank d: 20
311-5057 81030K OSG 4F-20MM(EML)(81030K) | Spec: 20 | Flute Length: 75 | Overall Length: 140 | Product Name: General 4F | Shank d: 20
311-5066 81031K OSG 4F-21MM(EML)(81031K) | Spec: 21 | Flute Length: 75 | Overall Length: 140 | Product Name: Standard 4F | Shank Diameter: 20
311-5084 81033K OSG 4F-23MM(EML)(81033K) | Spec: 23 | Flute Length: 90 | Overall Length: 160 | Product Name: Standard 4F | Shank d: 20
311-5109 81035K OSG 4F-25MM(EML)(81035K) | Spec: 25 | Flute Length: 90 | Overall Length: 160 | Product Name: Standard 4F | Shank Diameter: 25
311-5118 81036K OSG 4F-26MM(EML)(81036K) | Spec: 26 | Flute Length: 90 | Overall Length: 160 | Product Name: Standard 4F | Shank Diameter: 25
311-5127 81037K OSG 4F-27MM(EML)(81037K) | Spec: 27 | Flute Length: 90 | Overall Length: 160 | Product Name: General 4F | Shank Diameter: 25
311-5136 81038K OSG 4F-28MM(EML)(81038K) | Spec: 28 | Flute Length: 90 | Overall Length: 160 | Product Name: Standard 4F | Shank d: 25
311-5154 81040K OSG 4F-30MM(EML)(81040K) | Spec: 30 | Flute Length: 90 | Overall Length: 160 | Product Name: General 4 Flute | Shank Diameter: 25
311-5163 81041K OSG 4F-31MM(EML)(81041K) | Spec: 31 | Flute Length: 95 | Overall Length: 180 | Description: General 4F | Shank Diameter: 32
311-5172 81042K OSG 4F-32MM(EML)(81042K) | Spec: 32 | Flute Length: 95 | Overall Length: 180 | Product Name: Standard 4F | Shank d: 32
311-5181 81043K OSG 4F-33MM(EML)(81043K) | Spec: 33 | Flute Length: 100 | Overall Length: 185 | Product Name: General 4F | Shank Diameter: 32
311-5206 81045K OSG 4F-35MM(EML)(81045K) | Spec: 35 | Flute Length: 100 | Overall Length: 185 | Product Name: Standard 4F | Shank Diameter: 32
311-5215 81046K OSG 4F-36MM(EML)(81046K) | Spec: 36 | Flute Length: 105 | Overall Length: 190 | Product Name: Standard 4F | Shank Diameter: 32
311-5224 81047K OSG 4F-37MM(EML)(81047K) | Spec: 37 | Flute Length: 105 | Overall Length: 190 | Product Name: General 4F | Shank d: 32
311-5251 81050K OSG 4F-40MM(EML)(81050K) | Spec: 40 | Flute Length: 110 | Overall Length: 195 | Product Name: General 4F | Shank Diameter: 32
311-5312 81056K OSG 6F-46MM(EML)(81056K) | Spec: 46 | Flute Length: 125 | Overall Length: 215 | Description: Standard 4F | Shank d: 42
