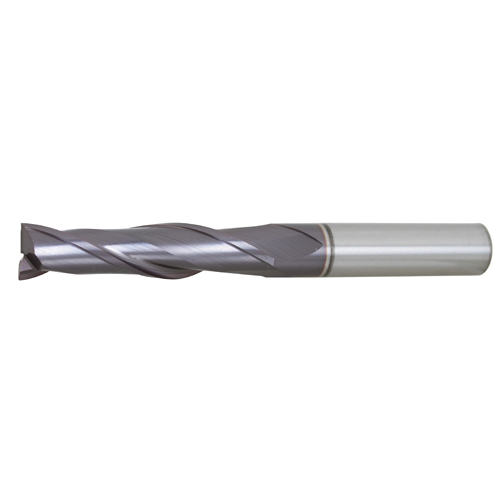

[OSG] — 688108K Long End Mill (Coated)

Family ID: 311-5844

OSG Long End Mill (Coated) is a coated long-series end mill designed for extended-reach milling operations, sourced direct from Korea. Long end mills are commonly used in mold and die work, deep-pocket machining, and applications where standard-length tools cannot reach the cutting zone. Request a quote today to access export-ready inventory, competitive wholesale pricing, and reliable supply through a KITA-registered Korean exporter.

34 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code	Description	Brand	Spec
311-5844	688108K	OSG	2F-4MM (TICN-EDL)(688108K) \| Spec: 4 \| Flute Length: 20 \| Overall Length: 60 \| Product Name: Coating 2F \| Shank Diameter: 8
311-5853	688114K	OSG	2F-7MM (TICN-EDL)(688114K) \| Spec: 7 \| Flute Length: 35 \| Overall Length: 75 \| Product Name: Coated 2-Flute \| Shank Diameter: 10
311-5871	688124K	OSG	2F-14MM (TICN-EDL)(688124K) \| Spec: 14 \| Flute Length: 55 \| Overall Length: 110 \| Product Name: Coated 2F \| Shank Diameter: 16
311-5880	688125K	OSG	2F-15MM (TICN-EDL)(688125K) \| Spec: 15 \| Flute Length: 65 \| Overall Length: 120 \| Product Name: Coated 2F \| Shank Diameter: 16
311-5899	688126K	OSG	2F-16MM (TICN-EDL)(688126K) \| Spec: 16 \| Flute Length: 65 \| Overall Length: 120 \| Product Name: Coated 2F \| Shank Diameter: 16
311-5914	688130K	OSG	2F-20MM (TICN-EDL)(688130K) \| Spec: 20 \| Flute Length: 75 \| Overall Length: 140 \| Product Name: Coated 2F \| Shank Diameter: 20
311-5923	688135K	OSG	2F-25MM(TICN-EDL)(688135K) \| Spec: 25 \| Flute Length: 90 \| Overall Length: 160 \| Description: Coating 2F \| Shank Diameter: 25
313-8377	688106K	OSG	2F-3MM(TICN-EDL)(688106K) \| Spec: 3 \| Flute Length: 15 \| Overall Length: 60 \| Product Name: Coated 2F \| Shank Diameter: 6
313-8386	688110K	OSG	2F-5MM(TICN-EDL)(688110K) \| Spec: 5 \| Flute Length: 25 \| Overall Length: 60 \| Product Name: Coated 2F \| Shank Diameter: 8
313-8395	688112K	OSG	2F-6MM(TICN-EDL)(688112K) \| Spec: 6 \| Flute Length: 25 \| Overall Length: 60 \| Product Name: Coated 2F \| Shank Diameter: 8
313-8401	688116K	OSG	2F-8MM(TICN-EDL)(688116K) \| Spec: 8 \| Flute Length: 35 \| Overall Length: 75 \| Product Name: Coated 2F \| Shank Diameter: 10
313-8410	688118K	OSG	2F-9MM(TICN-EDL)(688118K) \| Spec: 9 \| Flute Length: 45 \| Overall Length: 90 \| Product Name: Coated 2F \| Shank d: 10
313-8429	688120K	OSG	2F-10MM(TICN-EDL)(688120K) \| Spec: 10 \| Flute Length: 45 \| Overall Length: 90 \| Product Name: Coated 2F \| Shank Diameter: 10
313-8456	688136K	OSG	2F-26MM(TICN-EDL)(688136K) \| Spec: 26 \| Flute Length: 90 \| Overall Length: 160 \| Product Name: Coated 2F \| Shank Diameter: 25
313-8465	688137K	OSG	2F-27MM(TICN-EDL)(688137K) \| Spec: 27 \| Flute Length: 90 \| Overall Length: 160 \| Product Name: Coating 2F \| Shank d: 25
313-8492	688141K	OSG	2F-31MM(TICN-EDL)(688141K) \| Spec: 31 \| Flute Length: 95 \| Overall Length: 180 \| Product Name: Coated 2F \| Shank Diameter: 32
313-8508	688142K	OSG	2F-32MM(TICN-EDL)(688142K) \| Spec: 32 \| Flute Length: 95 \| Overall Length: 180 \| Product Name: Coated 2F \| Shank d: 32
313-8517	688143K	OSG	2F-33MM(TICN-EDL)(688143K) \| Spec: 33 \| Flute Length: 100 \| Overall Length: 185 \| Product Name: Coated 2F \| Shank Diameter: 32
313-8526	688144K	OSG	2F-34MM(TICN-EDL)(688144K) \| Spec: 34 \| Flute Length: 100 \| Overall Length: 185 \| Product Name: Coated 2F \| Shank Diameter: 32
313-8553	688147K	OSG	2F-37MM(TICN-EDL)(688147K) \| Spec: 37 \| Flute Length: 105 \| Overall Length: 190 \| Product Name: Coated 2F \| Shank Diameter: 32
313-8562	688148K	OSG	2F-38MM(TICN-EDL)(688148K) \| Spec: 38 \| Flute Length: 105 \| Overall Length: 190 \| Product Name: Coated 2F \| Shank Diameter: 32
313-8571	688149K	OSG	2F-39MM(TICN-EDL)(688149K) \| Spec: 39 \| Flute Length: 110 \| Overall Length: 195 \| Product Name: Coating 2F \| Shank Diameter: 32
313-8580	688150K	OSG	2F-40MM(TICN-EDL)(688150K) \| Spec: 40 \| Flute Length: 110 \| Overall Length: 195 \| Product Name: Coated 2F \| Shank Diameter: 32
313-8599	688151K	OSG	2F-41MM(TICN-EDL)(688151K) \| Spec: 41 \| Flute Length: 115 \| Overall Length: 205 \| Description: Coated 2F \| Shank d: 42
313-8605	688152K	OSG	2F-42MM(TICN-EDL)(688152K) \| Spec: 42 \| Flute Length: 115 \| Overall Length: 205 \| Product Name: Coated 2F \| Shank Diameter: 42
313-8614	688153K	OSG	2F-43MM(TICN-EDL)(688153K) \| Spec: 43 \| Flute Length: 115 \| Overall Length: 205 \| Product Name: Coated 2F \| Shank Diameter: 42
313-8623	688154K	OSG	2F-44MM(TICN-EDL)(688154K) \| Spec: 44 \| Flute Length: 115 \| Overall Length: 205 \| Product Name: Coated 2F \| Shank Diameter: 42
313-8632	688155K	OSG	2F-45MM(TICN-EDL)(688155K) \| Spec: 45 \| Flute Length: 115 \| Overall Length: 205 \| Product Name: Coated 2F \| Shank Diameter: 42
313-8641	688156K	OSG	2F-46MM(TICN-EDL)(688156K) \| Spec: 46 \| Flute Length: 125 \| Overall Length: 215 \| Description: Coated 2F \| Shank Diameter: 42
313-8650	688157K	OSG	2F-47MM(TICN-EDL)(688157K) \| Spec: 47 \| Flute Length: 125 \| Overall Length: 215 \| Product Name: Coated 2F \| Shank Diameter: 42
313-8669	688158K	OSG	2F-48MM(TICN-EDL)(688158K) \| Spec: 48 \| Flute Length: 125 \| Overall Length: 215 \| Product Name: Coated 2F \| Shank Diameter: 42
313-8678	688159K	OSG	2F-49MM(TICN-EDL)(688159K) \| Spec: 49 \| Flute Length: 125 \| Overall Length: 215 \| Product Name: Coating 2F \| Shank Diameter: 42
313-8687	688160K	OSG	2F-50MM(TICN-EDL)(688160K) \| Spec: 50 \| Flute Length: 125 \| Overall Length: 215 \| Product Name: Coated 2F \| Shank Diameter: 42
313-9011	688121K	OSG	2F-11MM(TICN-EDL)(688121K) \| Spec: 11 \| Flute Length: 55 \| Overall Length: 105 \| Product Name: Coated 2F \| Shank Diameter: 12
