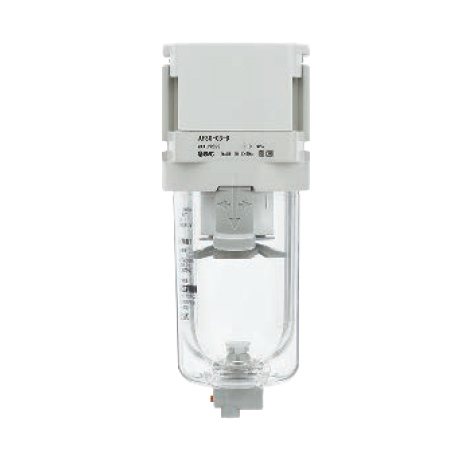

![[SMC] — AF40-06-D Modular Air Filter (3/4 Port)](https://img.prosourcemro.com/2026/04/af-d.png)
Filters
SMC
[SMC] — AF40-06-D Modular Air Filter (3/4 Port)
Family ID: SMC-AF40-06-D
SMC modular pneumatic air filter (clean/low-particle spec). Body size 40-06, port size: 3/4. Filter rating: 5 μm. Max working pressure 1.0 MPa, proof pressure 1.5 MPa. Operating temperature: -5 to 60°C. Mass: 0.41 kg. Threads: Rc / NPT / G. Drain options: manual, N.C. auto drain, or N.O. auto drain. Mounting option: bracket. Polycarbonate case (case guard standard on size 30+). Other options (alternative case materials including metal/nylon/level-gauge variants, clogging indicator L on size 40, drain port variants J/W, reverse flow direction, psi units) available on request.
18 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AF40-06-D | Rc 3/4, Manual drain, clean/low-particle spec | SMC | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AF40-06C-D | Rc 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | SMC | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AF40-06D-D | Rc 3/4, Auto drain N.O. (Normal Open), clean/low-particle spec | SMC | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AF40-06B-D | Rc 3/4, Bracket, Manual drain, clean/low-particle spec | SMC | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AF40-06BC-D | Rc 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | SMC | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AF40-06BD-D | Rc 3/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | SMC | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AF40-N06-D | NPT 3/4, Manual drain, clean/low-particle spec | SMC | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AF40-N06C-D | NPT 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | SMC | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AF40-N06D-D | NPT 3/4, Auto drain N.O. (Normal Open), clean/low-particle spec | SMC | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AF40-N06B-D | NPT 3/4, Bracket, Manual drain, clean/low-particle spec | SMC | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AF40-N06BC-D | NPT 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | SMC | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AF40-N06BD-D | NPT 3/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | SMC | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AF40-F06-D | G 3/4, Manual drain, clean/low-particle spec | SMC | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AF40-F06C-D | G 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | SMC | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AF40-F06D-D | G 3/4, Auto drain N.O. (Normal Open), clean/low-particle spec | SMC | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AF40-F06B-D | G 3/4, Bracket, Manual drain, clean/low-particle spec | SMC | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AF40-F06BC-D | G 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | SMC | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AF40-F06BD-D | G 3/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | SMC | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) |
