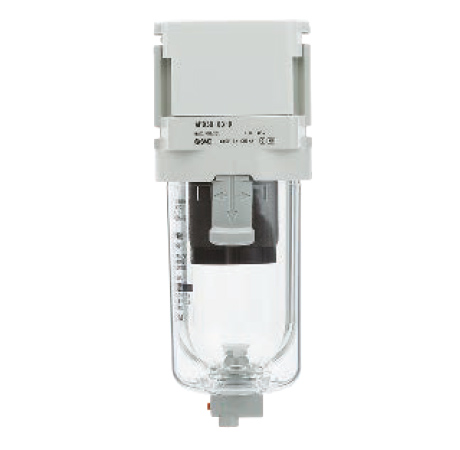

[SMC] — AFD40-06-D Modular Micro Mist Separator (3/4 Port)
Family ID: SMC-AFD40-06-D
SMC modular pneumatic micro mist separator (clean/low-particle spec). Body size 40-06, port size: 3/4. Filter rating: 0.01 μm (filtration efficiency 99.9%). Outlet oil mist concentration: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm). Compressed air purity class: ISO 8573-1:2010 [1:7:2]. Max working pressure 1.0 MPa, proof pressure 1.5 MPa, min working pressure 0.05 MPa. Operating temperature: -5 to 60°C. Processed air flow: 600 L/min(ANR). Mass: 0.40 kg. Threads: Rc / NPT / G. Drain options: manual, N.C. auto drain, or N.O. auto drain. Mounting option: bracket. Polycarbonate case (case guard standard on size 30+). Black case (micro mist separator standard). Other options (alternative case materials including metal/nylon/level-gauge variants, clogging indicator L, clogging switch M/MM on size 40, drain port variants J/W, reverse flow direction, psi units) available on request.
18 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AFD40-06-D | Rc 3/4, Manual drain, clean/low-particle spec | SMC | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AFD40-06C-D | Rc 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | SMC | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AFD40-06D-D | Rc 3/4, Auto drain N.O. (Normal Open), clean/low-particle spec | SMC | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AFD40-06B-D | Rc 3/4, Bracket, Manual drain, clean/low-particle spec | SMC | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AFD40-06BC-D | Rc 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | SMC | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AFD40-06BD-D | Rc 3/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | SMC | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AFD40-N06-D | NPT 3/4, Manual drain, clean/low-particle spec | SMC | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AFD40-N06C-D | NPT 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | SMC | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AFD40-N06D-D | NPT 3/4, Auto drain N.O. (Normal Open), clean/low-particle spec | SMC | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AFD40-N06B-D | NPT 3/4, Bracket, Manual drain, clean/low-particle spec | SMC | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AFD40-N06BC-D | NPT 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | SMC | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AFD40-N06BD-D | NPT 3/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | SMC | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AFD40-F06-D | G 3/4, Manual drain, clean/low-particle spec | SMC | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AFD40-F06C-D | G 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | SMC | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AFD40-F06D-D | G 3/4, Auto drain N.O. (Normal Open), clean/low-particle spec | SMC | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AFD40-F06B-D | G 3/4, Bracket, Manual drain, clean/low-particle spec | SMC | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AFD40-F06BC-D | G 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | SMC | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) | ||
| AFD40-F06BD-D | G 3/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | SMC | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D) |
