![[SMC] — MDBB80 Standard Cylinder](https://img.prosourcemro.com/2026/04/MB.png)
Cylinders
SMC

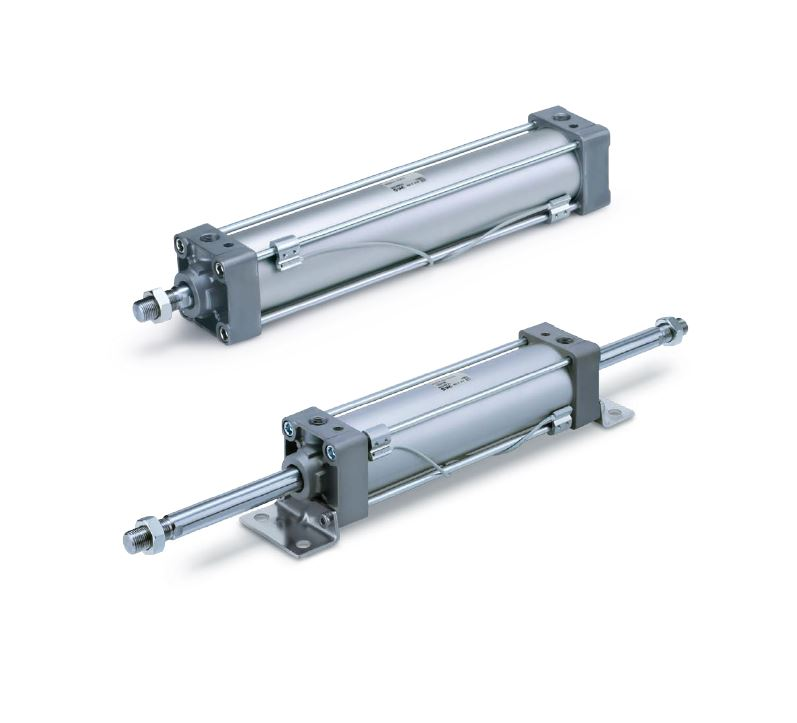

[SMC] — MDBB80 Standard Cylinder
Family ID: SMC-MDBB80
Standard pneumatic cylinder (tie-rod type), ø80mm bore, double-acting single-rod, Basic (through-hole) mounting, Rc port, air cushion, auto-switch ready with built-in magnet. Proven workhorse for general automation.
17 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| MDBB80-25Z | ø80mm bore × 25mm stroke, double-acting, air cushion | SMC | Stroke: 25 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | Cushion: Air | ||
| MDBB80-50Z | ø80mm bore × 50mm stroke, double-acting, air cushion | SMC | Stroke: 50 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | Cushion: Air | ||
| MDBB80-75Z | ø80mm bore × 75mm stroke, double-acting, air cushion | SMC | Stroke: 75 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | Cushion: Air | ||
| MDBB80-100Z | ø80mm bore × 100mm stroke, double-acting, air cushion | SMC | Stroke: 100 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | Cushion: Air | ||
| MDBB80-125Z | ø80mm bore × 125mm stroke, double-acting, air cushion | SMC | Stroke: 125 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | Cushion: Air | ||
| MDBB80-150Z | ø80mm bore × 150mm stroke, double-acting, air cushion | SMC | Stroke: 150 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | Cushion: Air | ||
| MDBB80-175Z | ø80mm bore × 175mm stroke, double-acting, air cushion | SMC | Stroke: 175 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | Cushion: Air | ||
| MDBB80-200Z | ø80mm bore × 200mm stroke, double-acting, air cushion | SMC | Stroke: 200 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | Cushion: Air | ||
| MDBB80-250Z | ø80mm bore × 250mm stroke, double-acting, air cushion | SMC | Stroke: 250 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | Cushion: Air | ||
| MDBB80-300Z | ø80mm bore × 300mm stroke, double-acting, air cushion | SMC | Stroke: 300 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | Cushion: Air | ||
| MDBB80-350Z | ø80mm bore × 350mm stroke, double-acting, air cushion | SMC | Stroke: 350 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | Cushion: Air | ||
| MDBB80-400Z | ø80mm bore × 400mm stroke, double-acting, air cushion | SMC | Stroke: 400 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | Cushion: Air | ||
| MDBB80-450Z | ø80mm bore × 450mm stroke, double-acting, air cushion | SMC | Stroke: 450 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | Cushion: Air | ||
| MDBB80-500Z | ø80mm bore × 500mm stroke, double-acting, air cushion | SMC | Stroke: 500 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | Cushion: Air | ||
| MDBB80-600Z | ø80mm bore × 600mm stroke, double-acting, air cushion | SMC | Stroke: 600 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | Cushion: Air | ||
| MDBB80-700Z | ø80mm bore × 700mm stroke, double-acting, air cushion | SMC | Stroke: 700 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | Cushion: Air | ||
| MDBB80-800Z | ø80mm bore × 800mm stroke, double-acting, air cushion | SMC | Stroke: 800 mm | Bore: ø80 mm | Action: Double-acting | Port: Rc | Cushion: Air |
