Ball Screws
THK

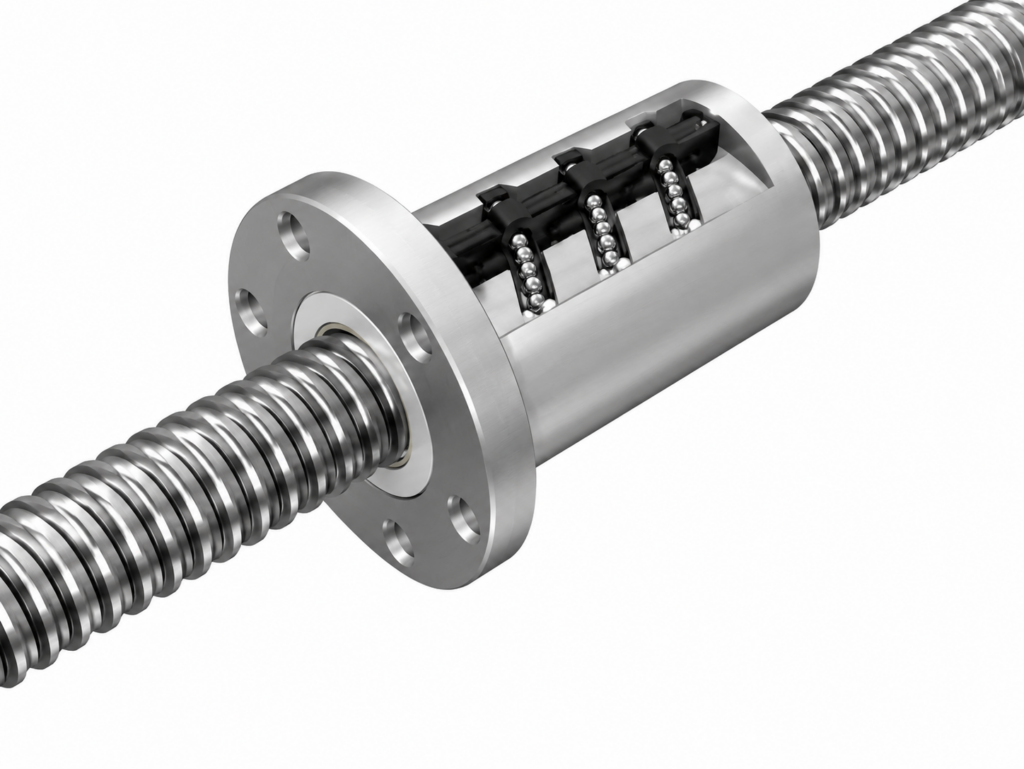

[THK] — BIF Ball Screw (Offset Preload Nut, Shaft φ50)
Family ID: THK-BIF-50
THK BIF Series Precision Ball Screw with Offset Preload Nut. Phase-shifted left/right threads eliminate axial clearance (preloaded). Compact design with smooth motion. Unfinished shaft end — easy additional machining. Shaft diameter φ50mm.
2 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| BIF5010-5 | THK BIF5010-5, φ50 Lead10, Ca=32.0kN | THK | Shaft Diameter: φ50mm | Lead: 10mm | Ca: 32.0kN | C0a: 88.2kN | Nut OD D: 93mm | Flange D1: 135mm | Nut Length L1: 103mm | PCD: 113mm | Type: Offset Preload Nut, Unfinished Shaft End (BIF) | ||
| BIF5010-10 | THK BIF5010-10, φ50 Lead10, Ca=58.2kN | THK | Shaft Diameter: φ50mm | Lead: 10mm | Ca: 58.2kN | C0a: 176.4kN | Nut OD D: 93mm | Flange D1: 135mm | Nut Length L1: 163mm | PCD: 113mm | Type: Offset Preload Nut, Unfinished Shaft End (BIF) |
