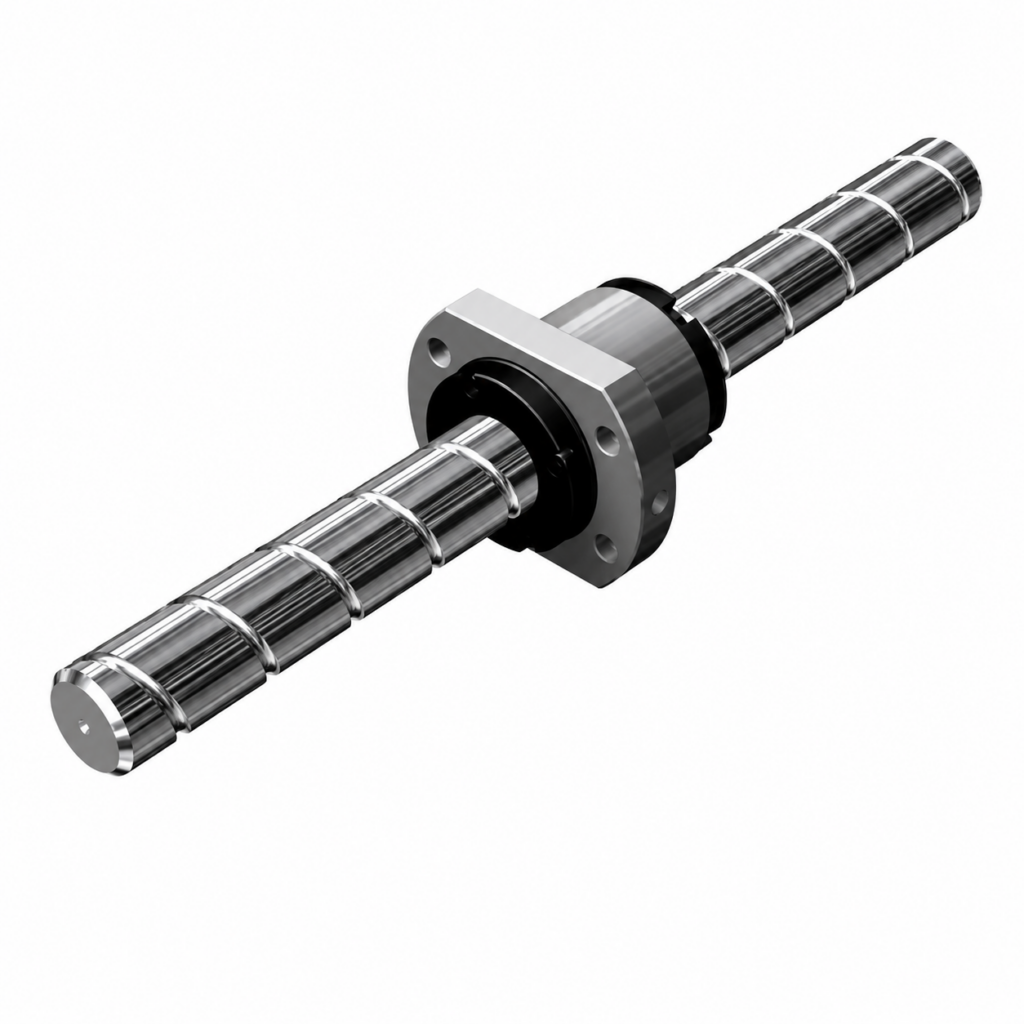

[THK] — BLK Rolled Ball Screw (Non-preloaded, End Cap, φ8~50)

Family ID: THK-BLK

THK BLK Series Rolled Ball Screw (Non-preloaded type). End cap ball return system for stable high-speed operation. DN value 70,000. Shaft diameter range φ8~50mm. Standard shaft lengths available per model. Grade C7. Seal type ZZ.

38 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code	Description	Brand	Spec
BLK0808-3.2ZZG0+C7	THK BLK0808-3.2, φ8 Lead8, G0, C7	THK	Shaft Diameter: φ8mm \| Lead: 8mm \| Ca: 2.2kN \| C0a: 3.8kN \| K: 95N/μm \| Ball Circuit: 2×1.6 \| Nut OD D: 18mm \| Flange D1: 31mm \| Nut Length L1: 20mm \| H: 4mm \| Clearance: G0 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: —mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK0808-3.2ZZG2+C7	THK BLK0808-3.2, φ8 Lead8, G2, C7	THK	Shaft Diameter: φ8mm \| Lead: 8mm \| Ca: 2.2kN \| C0a: 3.8kN \| K: 95N/μm \| Ball Circuit: 2×1.6 \| Nut OD D: 18mm \| Flange D1: 31mm \| Nut Length L1: 20mm \| H: 4mm \| Clearance: G2 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: —mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK1010-3.2ZZG0+C7	THK BLK1010-3.2, φ10 Lead10, G0, C7	THK	Shaft Diameter: φ10mm \| Lead: 10mm \| Ca: 3.3kN \| C0a: 5.9kN \| K: 117N/μm \| Ball Circuit: 2×1.6 \| Nut OD D: 23mm \| Flange D1: 40mm \| Nut Length L1: 24mm \| H: 5mm \| Clearance: G0 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: —mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK1010-3.2ZZG2+C7	THK BLK1010-3.2, φ10 Lead10, G2, C7	THK	Shaft Diameter: φ10mm \| Lead: 10mm \| Ca: 3.3kN \| C0a: 5.9kN \| K: 117N/μm \| Ball Circuit: 2×1.6 \| Nut OD D: 23mm \| Flange D1: 40mm \| Nut Length L1: 24mm \| H: 5mm \| Clearance: G2 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: —mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK1510-5.6ZZG0+C7	THK BLK1510-5.6, φ15 Lead10, G0, C7	THK	Shaft Diameter: φ15mm \| Lead: 10mm \| Ca: 9.8kN \| C0a: 25.2kN \| K: 260N/μm \| Ball Circuit: 2×2.8 \| Nut OD D: 34mm \| Flange D1: 57mm \| Nut Length L1: 44mm \| H: 10mm \| Clearance: G0 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 500,1000mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK1510-5.6ZZG2+C7	THK BLK1510-5.6, φ15 Lead10, G2, C7	THK	Shaft Diameter: φ15mm \| Lead: 10mm \| Ca: 9.8kN \| C0a: 25.2kN \| K: 260N/μm \| Ball Circuit: 2×2.8 \| Nut OD D: 34mm \| Flange D1: 57mm \| Nut Length L1: 44mm \| H: 10mm \| Clearance: G2 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 500,1000mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK1616-3.6ZZG0+C7	THK BLK1616-3.6, φ16 Lead16, G0, C7	THK	Shaft Diameter: φ16mm \| Lead: 16mm \| Ca: 5.8kN \| C0a: 12.9kN \| K: 170N/μm \| Ball Circuit: 2×1.8 \| Nut OD D: 32mm \| Flange D1: 53mm \| Nut Length L1: 38mm \| H: 10mm \| Clearance: G0 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 500,1000,1500mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK1616-3.6ZZG2+C7	THK BLK1616-3.6, φ16 Lead16, G2, C7	THK	Shaft Diameter: φ16mm \| Lead: 16mm \| Ca: 5.8kN \| C0a: 12.9kN \| K: 170N/μm \| Ball Circuit: 2×1.8 \| Nut OD D: 32mm \| Flange D1: 53mm \| Nut Length L1: 38mm \| H: 10mm \| Clearance: G2 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 500,1000,1500mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK1616-7.2ZZG0+C7	THK BLK1616-7.2, φ16 Lead16, G0, C7	THK	Shaft Diameter: φ16mm \| Lead: 16mm \| Ca: 10.5kN \| C0a: 25.9kN \| K: 340N/μm \| Ball Circuit: 4×1.8 \| Nut OD D: 32mm \| Flange D1: 53mm \| Nut Length L1: 38mm \| H: 10mm \| Clearance: G0 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 500,1000,1500mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK1616-7.2ZZG2+C7	THK BLK1616-7.2, φ16 Lead16, G2, C7	THK	Shaft Diameter: φ16mm \| Lead: 16mm \| Ca: 10.5kN \| C0a: 25.9kN \| K: 340N/μm \| Ball Circuit: 4×1.8 \| Nut OD D: 32mm \| Flange D1: 53mm \| Nut Length L1: 38mm \| H: 10mm \| Clearance: G2 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 500,1000,1500mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK2020-3.6ZZG0+C7	THK BLK2020-3.6, φ20 Lead20, G0, C7	THK	Shaft Diameter: φ20mm \| Lead: 20mm \| Ca: 7.7kN \| C0a: 22.3kN \| K: 210N/μm \| Ball Circuit: 2×1.8 \| Nut OD D: 39mm \| Flange D1: 62mm \| Nut Length L1: 45mm \| H: 10mm \| Clearance: G0 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 500,1000,1500mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK2020-3.6ZZG2+C7	THK BLK2020-3.6, φ20 Lead20, G2, C7	THK	Shaft Diameter: φ20mm \| Lead: 20mm \| Ca: 7.7kN \| C0a: 22.3kN \| K: 210N/μm \| Ball Circuit: 2×1.8 \| Nut OD D: 39mm \| Flange D1: 62mm \| Nut Length L1: 45mm \| H: 10mm \| Clearance: G2 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 500,1000,1500mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK2020-7.2ZZG0+C7	THK BLK2020-7.2, φ20 Lead20, G0, C7	THK	Shaft Diameter: φ20mm \| Lead: 20mm \| Ca: 13.9kN \| C0a: 44.6kN \| K: 410N/μm \| Ball Circuit: 4×1.8 \| Nut OD D: 39mm \| Flange D1: 62mm \| Nut Length L1: 45mm \| H: 10mm \| Clearance: G0 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 500,1000,1500mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK2020-7.2ZZG2+C7	THK BLK2020-7.2, φ20 Lead20, G2, C7	THK	Shaft Diameter: φ20mm \| Lead: 20mm \| Ca: 13.9kN \| C0a: 44.6kN \| K: 410N/μm \| Ball Circuit: 4×1.8 \| Nut OD D: 39mm \| Flange D1: 62mm \| Nut Length L1: 45mm \| H: 10mm \| Clearance: G2 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 500,1000,1500mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK2525-3.6ZZG0+C7	THK BLK2525-3.6, φ25 Lead25, G0, C7	THK	Shaft Diameter: φ25mm \| Lead: 25mm \| Ca: 12.1kN \| C0a: 35.0kN \| K: 270N/μm \| Ball Circuit: 2×1.8 \| Nut OD D: 47mm \| Flange D1: 74mm \| Nut Length L1: 55mm \| H: 12mm \| Clearance: G0 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 500,1000,1500,2000,2500mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK2525-3.6ZZG2+C7	THK BLK2525-3.6, φ25 Lead25, G2, C7	THK	Shaft Diameter: φ25mm \| Lead: 25mm \| Ca: 12.1kN \| C0a: 35.0kN \| K: 270N/μm \| Ball Circuit: 2×1.8 \| Nut OD D: 47mm \| Flange D1: 74mm \| Nut Length L1: 55mm \| H: 12mm \| Clearance: G2 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 500,1000,1500,2000,2500mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK2525-7.2ZZG0+C7	THK BLK2525-7.2, φ25 Lead25, G0, C7	THK	Shaft Diameter: φ25mm \| Lead: 25mm \| Ca: 21.9kN \| C0a: 69.9kN \| K: 520N/μm \| Ball Circuit: 4×1.8 \| Nut OD D: 47mm \| Flange D1: 74mm \| Nut Length L1: 55mm \| H: 12mm \| Clearance: G0 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 500,1000,1500,2000,2500mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK2525-7.2ZZG2+C7	THK BLK2525-7.2, φ25 Lead25, G2, C7	THK	Shaft Diameter: φ25mm \| Lead: 25mm \| Ca: 21.9kN \| C0a: 69.9kN \| K: 520N/μm \| Ball Circuit: 4×1.8 \| Nut OD D: 47mm \| Flange D1: 74mm \| Nut Length L1: 55mm \| H: 12mm \| Clearance: G2 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 500,1000,1500,2000,2500mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK3232-3.6ZZG0+C7	THK BLK3232-3.6, φ32 Lead32, G0, C7	THK	Shaft Diameter: φ32mm \| Lead: 32mm \| Ca: 17.3kN \| C0a: 53.9kN \| K: 330N/μm \| Ball Circuit: 2×1.8 \| Nut OD D: 58mm \| Flange D1: 92mm \| Nut Length L1: 70mm \| H: 15mm \| Clearance: G0 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 1000,1500,2000,2500,3000mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK3232-3.6ZZG2+C7	THK BLK3232-3.6, φ32 Lead32, G2, C7	THK	Shaft Diameter: φ32mm \| Lead: 32mm \| Ca: 17.3kN \| C0a: 53.9kN \| K: 330N/μm \| Ball Circuit: 2×1.8 \| Nut OD D: 58mm \| Flange D1: 92mm \| Nut Length L1: 70mm \| H: 15mm \| Clearance: G2 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 1000,1500,2000,2500,3000mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK3232-7.2ZZG0+C7	THK BLK3232-7.2, φ32 Lead32, G0, C7	THK	Shaft Diameter: φ32mm \| Lead: 32mm \| Ca: 31.3kN \| C0a: 107.8kN \| K: 650N/μm \| Ball Circuit: 4×1.8 \| Nut OD D: 58mm \| Flange D1: 92mm \| Nut Length L1: 70mm \| H: 15mm \| Clearance: G0 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 1000,1500,2000,2500,3000mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK3232-7.2ZZG2+C7	THK BLK3232-7.2, φ32 Lead32, G2, C7	THK	Shaft Diameter: φ32mm \| Lead: 32mm \| Ca: 31.3kN \| C0a: 107.8kN \| K: 650N/μm \| Ball Circuit: 4×1.8 \| Nut OD D: 58mm \| Flange D1: 92mm \| Nut Length L1: 70mm \| H: 15mm \| Clearance: G2 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 1000,1500,2000,2500,3000mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK3620-5.6ZZG0+C7	THK BLK3620-5.6, φ36 Lead20, G0, C7	THK	Shaft Diameter: φ36mm \| Lead: 20mm \| Ca: 39.8kN \| C0a: 121.7kN \| K: 570N/μm \| Ball Circuit: 2×2.8 \| Nut OD D: 70mm \| Flange D1: 110mm \| Nut Length L1: 78mm \| H: 17mm \| Clearance: G0 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 1000,1500,2000,2500,3000mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK3620-5.6ZZG2+C7	THK BLK3620-5.6, φ36 Lead20, G2, C7	THK	Shaft Diameter: φ36mm \| Lead: 20mm \| Ca: 39.8kN \| C0a: 121.7kN \| K: 570N/μm \| Ball Circuit: 2×2.8 \| Nut OD D: 70mm \| Flange D1: 110mm \| Nut Length L1: 78mm \| H: 17mm \| Clearance: G2 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 1000,1500,2000,2500,3000mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK3624-5.6ZZG0+C7	THK BLK3624-5.6, φ36 Lead24, G0, C7	THK	Shaft Diameter: φ36mm \| Lead: 24mm \| Ca: 46.2kN \| C0a: 137.4kN \| K: 590N/μm \| Ball Circuit: 2×2.8 \| Nut OD D: 75mm \| Flange D1: 115mm \| Nut Length L1: 94mm \| H: 18mm \| Clearance: G0 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 1000,1500,2000,2500,3000mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK3624-5.6ZZG2+C7	THK BLK3624-5.6, φ36 Lead24, G2, C7	THK	Shaft Diameter: φ36mm \| Lead: 24mm \| Ca: 46.2kN \| C0a: 137.4kN \| K: 590N/μm \| Ball Circuit: 2×2.8 \| Nut OD D: 75mm \| Flange D1: 115mm \| Nut Length L1: 94mm \| H: 18mm \| Clearance: G2 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 1000,1500,2000,2500,3000mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK3636-3.6ZZG0+C7	THK BLK3636-3.6, φ36 Lead36, G0, C7	THK	Shaft Diameter: φ36mm \| Lead: 36mm \| Ca: 22.4kN \| C0a: 70.5kN \| K: 370N/μm \| Ball Circuit: 2×1.8 \| Nut OD D: 66mm \| Flange D1: 106mm \| Nut Length L1: 77mm \| H: 17mm \| Clearance: G0 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 1000,1500,2000,2500,3000mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK3636-3.6ZZG2+C7	THK BLK3636-3.6, φ36 Lead36, G2, C7	THK	Shaft Diameter: φ36mm \| Lead: 36mm \| Ca: 22.4kN \| C0a: 70.5kN \| K: 370N/μm \| Ball Circuit: 2×1.8 \| Nut OD D: 66mm \| Flange D1: 106mm \| Nut Length L1: 77mm \| H: 17mm \| Clearance: G2 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 1000,1500,2000,2500,3000mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK3636-7.2ZZG0+C7	THK BLK3636-7.2, φ36 Lead36, G0, C7	THK	Shaft Diameter: φ36mm \| Lead: 36mm \| Ca: 40.6kN \| C0a: 141.1kN \| K: 730N/μm \| Ball Circuit: 4×1.8 \| Nut OD D: 66mm \| Flange D1: 106mm \| Nut Length L1: 77mm \| H: 17mm \| Clearance: G0 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 1000,1500,2000,2500,3000mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK3636-7.2ZZG2+C7	THK BLK3636-7.2, φ36 Lead36, G2, C7	THK	Shaft Diameter: φ36mm \| Lead: 36mm \| Ca: 40.6kN \| C0a: 141.1kN \| K: 730N/μm \| Ball Circuit: 4×1.8 \| Nut OD D: 66mm \| Flange D1: 106mm \| Nut Length L1: 77mm \| H: 17mm \| Clearance: G2 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 1000,1500,2000,2500,3000mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK4040-3.6ZZG0+C7	THK BLK4040-3.6, φ40 Lead40, G0, C7	THK	Shaft Diameter: φ40mm \| Lead: 40mm \| Ca: 28.1kN \| C0a: 89.8kN \| K: 420N/μm \| Ball Circuit: 2×1.8 \| Nut OD D: 73mm \| Flange D1: 114mm \| Nut Length L1: 85mm \| H: 17mm \| Clearance: G0 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 1000,1500,2000,2500,3000,4000mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK4040-3.6ZZG2+C7	THK BLK4040-3.6, φ40 Lead40, G2, C7	THK	Shaft Diameter: φ40mm \| Lead: 40mm \| Ca: 28.1kN \| C0a: 89.8kN \| K: 420N/μm \| Ball Circuit: 2×1.8 \| Nut OD D: 73mm \| Flange D1: 114mm \| Nut Length L1: 85mm \| H: 17mm \| Clearance: G2 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 1000,1500,2000,2500,3000,4000mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK4040-7.2ZZG0+C7	THK BLK4040-7.2, φ40 Lead40, G0, C7	THK	Shaft Diameter: φ40mm \| Lead: 40mm \| Ca: 51.1kN \| C0a: 179.6kN \| K: 810N/μm \| Ball Circuit: 4×1.8 \| Nut OD D: 73mm \| Flange D1: 114mm \| Nut Length L1: 85mm \| H: 17mm \| Clearance: G0 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 1000,1500,2000,2500,3000,4000mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK4040-7.2ZZG2+C7	THK BLK4040-7.2, φ40 Lead40, G2, C7	THK	Shaft Diameter: φ40mm \| Lead: 40mm \| Ca: 51.1kN \| C0a: 179.6kN \| K: 810N/μm \| Ball Circuit: 4×1.8 \| Nut OD D: 73mm \| Flange D1: 114mm \| Nut Length L1: 85mm \| H: 17mm \| Clearance: G2 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 1000,1500,2000,2500,3000,4000mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK5050-3.6ZZG0+C7	THK BLK5050-3.6, φ50 Lead50, G0, C7	THK	Shaft Diameter: φ50mm \| Lead: 50mm \| Ca: 42.1kN \| C0a: 140.4kN \| K: 510N/μm \| Ball Circuit: 2×1.8 \| Nut OD D: 90mm \| Flange D1: 135mm \| Nut Length L1: 106mm \| H: 20mm \| Clearance: G0 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 1000,1500,2000,3000,4000mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK5050-3.6ZZG2+C7	THK BLK5050-3.6, φ50 Lead50, G2, C7	THK	Shaft Diameter: φ50mm \| Lead: 50mm \| Ca: 42.1kN \| C0a: 140.4kN \| K: 510N/μm \| Ball Circuit: 2×1.8 \| Nut OD D: 90mm \| Flange D1: 135mm \| Nut Length L1: 106mm \| H: 20mm \| Clearance: G2 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 1000,1500,2000,3000,4000mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK5050-7.2ZZG0+C7	THK BLK5050-7.2, φ50 Lead50, G0, C7	THK	Shaft Diameter: φ50mm \| Lead: 50mm \| Ca: 76.3kN \| C0a: 280.7kN \| K: 1000N/μm \| Ball Circuit: 4×1.8 \| Nut OD D: 90mm \| Flange D1: 135mm \| Nut Length L1: 106mm \| H: 20mm \| Clearance: G0 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 1000,1500,2000,3000,4000mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
BLK5050-7.2ZZG2+C7	THK BLK5050-7.2, φ50 Lead50, G2, C7	THK	Shaft Diameter: φ50mm \| Lead: 50mm \| Ca: 76.3kN \| C0a: 280.7kN \| K: 1000N/μm \| Ball Circuit: 4×1.8 \| Nut OD D: 90mm \| Flange D1: 135mm \| Nut Length L1: 106mm \| H: 20mm \| Clearance: G2 \| Grade: C7 \| Seal: ZZ \| Standard Shaft Lengths: 1000,1500,2000,3000,4000mm \| DN Value: 70,000 \| Type: Rolled, Non-preloaded, End Cap (BLK)
