![[THK] — BIF3206V-5 Ball Screw Nut Unit (Small, Shaft φ32, Lead 6mm)](https://img.prosourcemro.com/2026/05/001-837-1024x754.png)
Ball Screws
THK

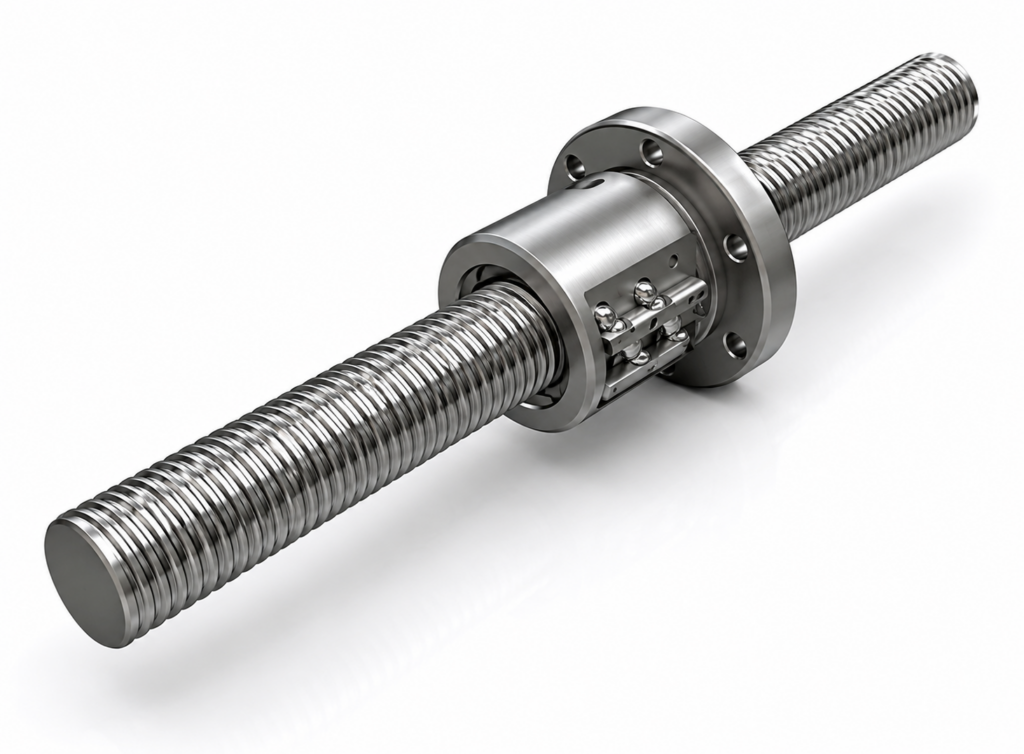

[THK] — BIF3206V-5 Ball Screw Nut Unit (Small, Shaft φ32, Lead 6mm)
Family ID: THK-BIF3206V-5
THK BIF-V Series Precision Ground Ball Screw Nut Unit (Small type, preloaded). Shaft diameter φ32mm, lead 6mm. 1×2.5 ball circuit. Unfinished shaft end (BIF-V type). DN value 100,000. Flanged nut, basic dynamic load rating Ca=13.9kN, static C0a=35.2kN, rigidity K=600N/μm.
3 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| BIF3206V-5+930 | THK BIF3206V-5, φ32 Lead6, L=930mm | THK | Shaft Diameter: φ32mm | Lead: 6mm | Shaft Total Length L: 930mm | Nut Length L1: 63mm | Ball Circuit: 1×2.5 | Ca: 13.9kN | C0a: 35.2kN | K: 600N/μm | Nut OD D: 62mm | Flange D1: 89mm | Type: Preloaded, Unfinished Shaft End | ||
| BIF3206V-5+1230 | THK BIF3206V-5, φ32 Lead6, L=1230mm | THK | Shaft Diameter: φ32mm | Lead: 6mm | Shaft Total Length L: 1230mm | Nut Length L1: 63mm | Ball Circuit: 1×2.5 | Ca: 13.9kN | C0a: 35.2kN | K: 600N/μm | Nut OD D: 62mm | Flange D1: 89mm | Type: Preloaded, Unfinished Shaft End | ||
| BIF3206V-5+1830 | THK BIF3206V-5, φ32 Lead6, L=1830mm | THK | Shaft Diameter: φ32mm | Lead: 6mm | Shaft Total Length L: 1830mm | Nut Length L1: 63mm | Ball Circuit: 1×2.5 | Ca: 13.9kN | C0a: 35.2kN | K: 600N/μm | Nut OD D: 62mm | Flange D1: 89mm | Type: Preloaded, Unfinished Shaft End |
