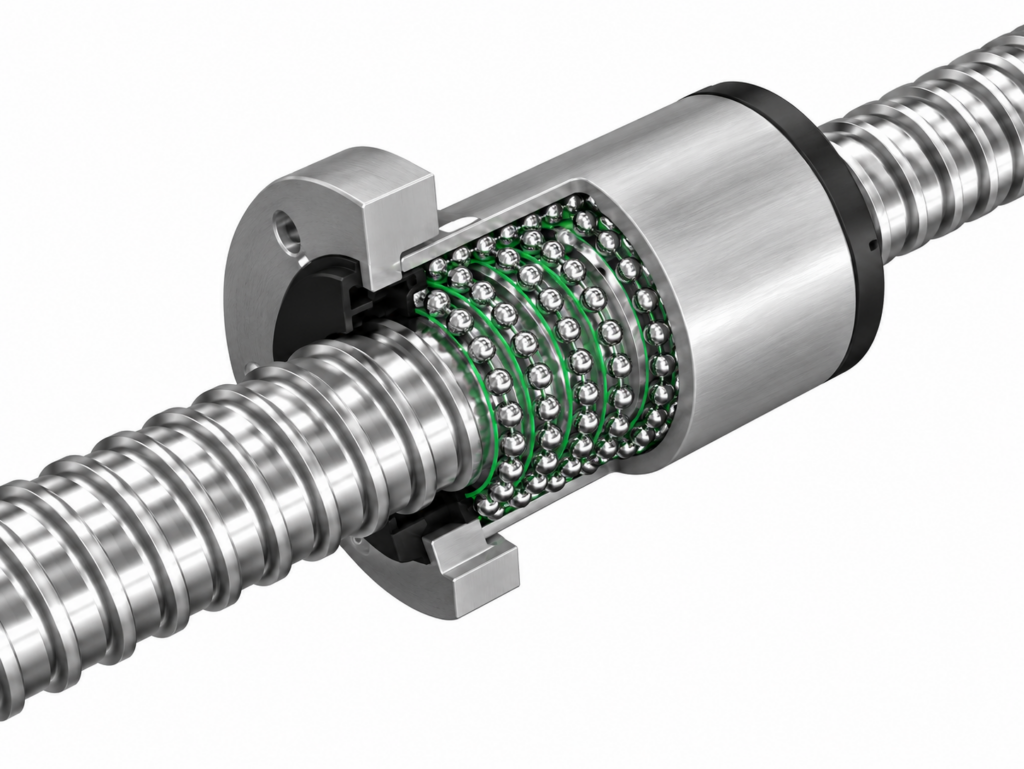

[THK] — SBKH Ball Screw (High Load High Speed, Ball Retainer, φ63~120)
Family ID: THK-SBKH
THK SBKH Series High Load High Speed Precision Ground Ball Screw with Ball Retainer. DN value 130,000. Ball retainer eliminates ball-to-ball contact for low noise, reduced torque variation, and long maintenance-free operation. Shaft diameter range φ63~120mm, lead 32~60mm.
7 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| SBKH6332-3.8 | THK SBKH6332-3.8, φ63 Lead32, Ca=304kN | THK | Shaft Diameter: φ63mm | Lead: 32mm | Ca: 304kN | C0a: 631kN | Nut OD D: 140mm | Flange D1: 205mm | Nut Length L1: 190mm | PCD: 173mm | DN Value: 130,000 | Type: High Load High Speed, Ball Retainer (SBKH) | ||
| SBKH6340-7.6 | THK SBKH6340-7.6, φ63 Lead40, Ca=413kN | THK | Shaft Diameter: φ63mm | Lead: 40mm | Ca: 413kN | C0a: 967kN | Nut OD D: 127mm | Flange D1: 191mm | Nut Length L1: 209mm | PCD: 159mm | DN Value: 130,000 | Type: High Load High Speed, Ball Retainer (SBKH) | ||
| SBKH8050-7.6 | THK SBKH8050-7.6, φ80 Lead50, Ca=777kN | THK | Shaft Diameter: φ80mm | Lead: 50mm | Ca: 777kN | C0a: 1788kN | Nut OD D: 175mm | Flange D1: 253mm | Nut Length L1: 268mm | PCD: 214mm | DN Value: 130,000 | Type: High Load High Speed, Ball Retainer (SBKH) | ||
| SBKH8060-7.6 | THK SBKH8060-7.6, φ80 Lead60, Ca=780kN | THK | Shaft Diameter: φ80mm | Lead: 60mm | Ca: 780kN | C0a: 1824kN | Nut OD D: 175mm | Flange D1: 253mm | Nut Length L1: 306mm | PCD: 214mm | DN Value: 130,000 | Type: High Load High Speed, Ball Retainer (SBKH) | ||
| SBKH10050-7.6 | THK SBKH10050-7.6, φ100 Lead50, Ca=876kN | THK | Shaft Diameter: φ100mm | Lead: 50mm | Ca: 876kN | C0a: 2401kN | Nut OD D: 195mm | Flange D1: 273mm | Nut Length L1: 269mm | PCD: 234mm | DN Value: 130,000 | Type: High Load High Speed, Ball Retainer (SBKH) | ||
| SBKH10060-7.6 | THK SBKH10060-7.6, φ100 Lead60, Ca=880kN | THK | Shaft Diameter: φ100mm | Lead: 60mm | Ca: 880kN | C0a: 2294kN | Nut OD D: 195mm | Flange D1: 273mm | Nut Length L1: 307mm | PCD: 234mm | DN Value: 130,000 | Type: High Load High Speed, Ball Retainer (SBKH) | ||
| SBKH12060-7.6 | THK SBKH12060-7.6, φ120 Lead60, Ca=962kN | THK | Shaft Diameter: φ120mm | Lead: 60mm | Ca: 962kN | C0a: 2941kN | Nut OD D: 210mm | Flange D1: 288mm | Nut Length L1: 308mm | PCD: 249mm | DN Value: 130,000 | Type: High Load High Speed, Ball Retainer (SBKH) |
