Ball Screws
THK

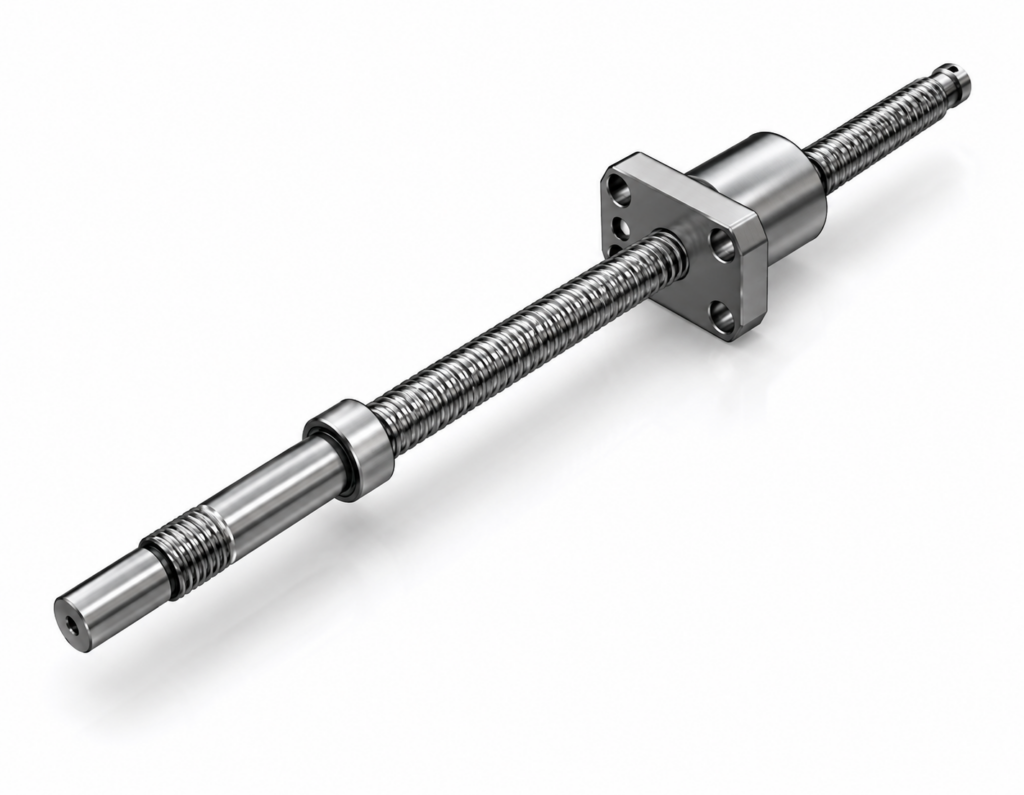

[THK] — BNK1010-1.5 Ball Screw (Shaft φ10, Lead 10mm)
Family ID: THK-BNK1010-1.5
THK BNK Series Precision Ground Ball Screw, shaft diameter φ10mm, lead 10mm. 1.5 turns × 1 row ball circuit, Return Pipe return type. Available in G0 (zero clearance) and G2 (standard) with C5/C7 lead accuracy grade. Flanged nut with pre-machined shaft end (BNK finished type).
10 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| BNK1010-1.5RRG0+240LC5K | THK BNK1010-1.5, φ10 Lead10, Stroke 100mm, G0 (Zero), 5K (C5 Grade) | THK | Shaft Diameter: φ10mm | Lead: 10mm | Stroke: 100mm | Screw Length L3: 240mm | L2: 185mm | L1: 167mm | Clearance: G0 (Zero) | Nut Grade: 5K (C5 Grade) | Ball Circuit: 1.5 turns × 1 row | Return Type: Return Pipe | ||
| BNK1010-1.5RRG2+240LC7K | THK BNK1010-1.5, φ10 Lead10, Stroke 100mm, G2 (Standard), 7K (C7 Grade) | THK | Shaft Diameter: φ10mm | Lead: 10mm | Stroke: 100mm | Screw Length L3: 240mm | L2: 185mm | L1: 167mm | Clearance: G2 (Standard) | Nut Grade: 7K (C7 Grade) | Ball Circuit: 1.5 turns × 1 row | Return Type: Return Pipe | ||
| BNK1010-1.5RRG0+290LC5K | THK BNK1010-1.5, φ10 Lead10, Stroke 150mm, G0 (Zero), 5K (C5 Grade) | THK | Shaft Diameter: φ10mm | Lead: 10mm | Stroke: 150mm | Screw Length L3: 290mm | L2: 235mm | L1: 217mm | Clearance: G0 (Zero) | Nut Grade: 5K (C5 Grade) | Ball Circuit: 1.5 turns × 1 row | Return Type: Return Pipe | ||
| BNK1010-1.5RRG2+290LC7K | THK BNK1010-1.5, φ10 Lead10, Stroke 150mm, G2 (Standard), 7K (C7 Grade) | THK | Shaft Diameter: φ10mm | Lead: 10mm | Stroke: 150mm | Screw Length L3: 290mm | L2: 235mm | L1: 217mm | Clearance: G2 (Standard) | Nut Grade: 7K (C7 Grade) | Ball Circuit: 1.5 turns × 1 row | Return Type: Return Pipe | ||
| BNK1010-1.5RRG0+340LC5K | THK BNK1010-1.5, φ10 Lead10, Stroke 200mm, G0 (Zero), 5K (C5 Grade) | THK | Shaft Diameter: φ10mm | Lead: 10mm | Stroke: 200mm | Screw Length L3: 340mm | L2: 285mm | L1: 267mm | Clearance: G0 (Zero) | Nut Grade: 5K (C5 Grade) | Ball Circuit: 1.5 turns × 1 row | Return Type: Return Pipe | ||
| BNK1010-1.5RRG2+340LC7K | THK BNK1010-1.5, φ10 Lead10, Stroke 200mm, G2 (Standard), 7K (C7 Grade) | THK | Shaft Diameter: φ10mm | Lead: 10mm | Stroke: 200mm | Screw Length L3: 340mm | L2: 285mm | L1: 267mm | Clearance: G2 (Standard) | Nut Grade: 7K (C7 Grade) | Ball Circuit: 1.5 turns × 1 row | Return Type: Return Pipe | ||
| BNK1010-1.5RRG0+390LC5K | THK BNK1010-1.5, φ10 Lead10, Stroke 250mm, G0 (Zero), 5K (C5 Grade) | THK | Shaft Diameter: φ10mm | Lead: 10mm | Stroke: 250mm | Screw Length L3: 390mm | L2: 335mm | L1: 317mm | Clearance: G0 (Zero) | Nut Grade: 5K (C5 Grade) | Ball Circuit: 1.5 turns × 1 row | Return Type: Return Pipe | ||
| BNK1010-1.5RRG2+390LC7K | THK BNK1010-1.5, φ10 Lead10, Stroke 250mm, G2 (Standard), 7K (C7 Grade) | THK | Shaft Diameter: φ10mm | Lead: 10mm | Stroke: 250mm | Screw Length L3: 390mm | L2: 335mm | L1: 317mm | Clearance: G2 (Standard) | Nut Grade: 7K (C7 Grade) | Ball Circuit: 1.5 turns × 1 row | Return Type: Return Pipe | ||
| BNK1010-1.5RRG0+440LC5K | THK BNK1010-1.5, φ10 Lead10, Stroke 300mm, G0 (Zero), 5K (C5 Grade) | THK | Shaft Diameter: φ10mm | Lead: 10mm | Stroke: 300mm | Screw Length L3: 440mm | L2: 385mm | L1: 367mm | Clearance: G0 (Zero) | Nut Grade: 5K (C5 Grade) | Ball Circuit: 1.5 turns × 1 row | Return Type: Return Pipe | ||
| BNK1010-1.5RRG2+440LC7K | THK BNK1010-1.5, φ10 Lead10, Stroke 300mm, G2 (Standard), 7K (C7 Grade) | THK | Shaft Diameter: φ10mm | Lead: 10mm | Stroke: 300mm | Screw Length L3: 440mm | L2: 385mm | L1: 367mm | Clearance: G2 (Standard) | Nut Grade: 7K (C7 Grade) | Ball Circuit: 1.5 turns × 1 row | Return Type: Return Pipe |
