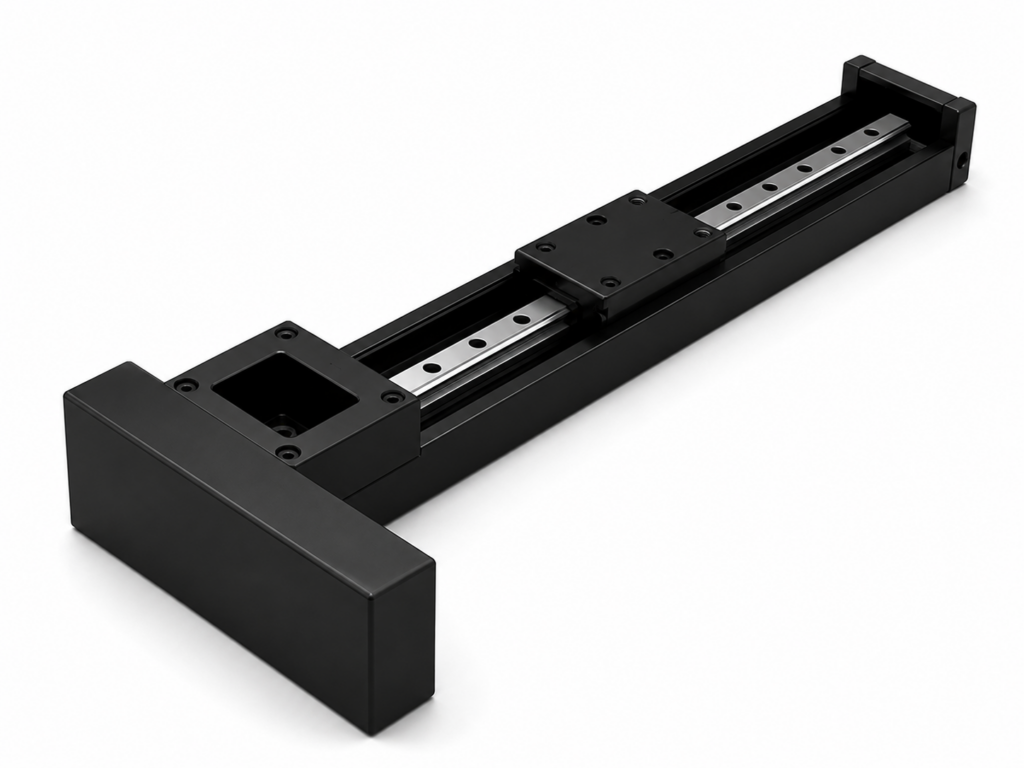

[THK] — SKR33 LM Guide Actuator, Motor Parallel, Block C/D (No Cover, φ33)
Family ID: THK-SKR33CDP-NC
THK SKR33 Series LM Guide Actuator with parallel motor mount, Block C/D type (no cover). Short block design. LM block and ball screw nut integrated for compact design. 4-direction equal load capacity. C-type: 1 short block; D-type: 2 short blocks. Stroke range 20~620mm.
14 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| SKR33NPC-0070 | THK SKR33, No Cover, 1 Short Block, Stroke 70mm | THK | Stroke: 70mm | Mech Stopper Stroke: 80.5mm | Outer Rail Length: 150mm | Total Length L: 214mm | C: 100mm | G: 25mm | Block Type: C-type (1 Short Block) | Cover: No Cover | Mass: 2.0kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33) | ||
| SKR33NPC-0120 | THK SKR33, No Cover, 1 Short Block, Stroke 120mm | THK | Stroke: 120mm | Mech Stopper Stroke: 130.5mm | Outer Rail Length: 200mm | Total Length L: 264mm | C: 100mm | G: 50mm | Block Type: C-type (1 Short Block) | Cover: No Cover | Mass: 2.4kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33) | ||
| SKR33NPC-0220 | THK SKR33, No Cover, 1 Short Block, Stroke 220mm | THK | Stroke: 220mm | Mech Stopper Stroke: 230.5mm | Outer Rail Length: 300mm | Total Length L: 364mm | C: 200mm | G: 50mm | Block Type: C-type (1 Short Block) | Cover: No Cover | Mass: 3.1kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33) | ||
| SKR33NPC-0320 | THK SKR33, No Cover, 1 Short Block, Stroke 320mm | THK | Stroke: 320mm | Mech Stopper Stroke: 330.5mm | Outer Rail Length: 400mm | Total Length L: 464mm | C: 300mm | G: 50mm | Block Type: C-type (1 Short Block) | Cover: No Cover | Mass: 3.8kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33) | ||
| SKR33NPC-0420 | THK SKR33, No Cover, 1 Short Block, Stroke 420mm | THK | Stroke: 420mm | Mech Stopper Stroke: 430.5mm | Outer Rail Length: 500mm | Total Length L: 564mm | C: 400mm | G: 50mm | Block Type: C-type (1 Short Block) | Cover: No Cover | Mass: 4.6kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33) | ||
| SKR33NPC-0520 | THK SKR33, No Cover, 1 Short Block, Stroke 520mm | THK | Stroke: 520mm | Mech Stopper Stroke: 530.5mm | Outer Rail Length: 600mm | Total Length L: 664mm | C: 500mm | G: 50mm | Block Type: C-type (1 Short Block) | Cover: No Cover | Mass: 5.3kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33) | ||
| SKR33NPC-0620 | THK SKR33, No Cover, 1 Short Block, Stroke 620mm | THK | Stroke: 620mm | Mech Stopper Stroke: 630.5mm | Outer Rail Length: 700mm | Total Length L: 764mm | C: 600mm | G: 50mm | Block Type: C-type (1 Short Block) | Cover: No Cover | Mass: 6.0kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33) | ||
| SKR33NPD-0020 | THK SKR33, No Cover, 2 Short Blocks, Stroke 20mm | THK | Stroke: 20mm | Mech Stopper Stroke: 30.0mm | Outer Rail Length: 150mm | Total Length L: 214mm | C: 100mm | G: 25mm | Block Type: D-type (2 Short Blocks) | Cover: No Cover | Mass: 2.2kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33) | ||
| SKR33NPD-0070 | THK SKR33, No Cover, 2 Short Blocks, Stroke 70mm | THK | Stroke: 70mm | Mech Stopper Stroke: 80.0mm | Outer Rail Length: 200mm | Total Length L: 264mm | C: 100mm | G: 50mm | Block Type: D-type (2 Short Blocks) | Cover: No Cover | Mass: 2.6kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33) | ||
| SKR33NPD-0170 | THK SKR33, No Cover, 2 Short Blocks, Stroke 170mm | THK | Stroke: 170mm | Mech Stopper Stroke: 180.0mm | Outer Rail Length: 300mm | Total Length L: 364mm | C: 200mm | G: 50mm | Block Type: D-type (2 Short Blocks) | Cover: No Cover | Mass: 3.3kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33) | ||
| SKR33NPD-0270 | THK SKR33, No Cover, 2 Short Blocks, Stroke 270mm | THK | Stroke: 270mm | Mech Stopper Stroke: 280.0mm | Outer Rail Length: 400mm | Total Length L: 464mm | C: 300mm | G: 50mm | Block Type: D-type (2 Short Blocks) | Cover: No Cover | Mass: 4.0kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33) | ||
| SKR33NPD-0370 | THK SKR33, No Cover, 2 Short Blocks, Stroke 370mm | THK | Stroke: 370mm | Mech Stopper Stroke: 380.0mm | Outer Rail Length: 500mm | Total Length L: 564mm | C: 400mm | G: 50mm | Block Type: D-type (2 Short Blocks) | Cover: No Cover | Mass: 4.8kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33) | ||
| SKR33NPD-0470 | THK SKR33, No Cover, 2 Short Blocks, Stroke 470mm | THK | Stroke: 470mm | Mech Stopper Stroke: 480.0mm | Outer Rail Length: 600mm | Total Length L: 664mm | C: 500mm | G: 50mm | Block Type: D-type (2 Short Blocks) | Cover: No Cover | Mass: 5.5kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33) | ||
| SKR33NPD-0570 | THK SKR33, No Cover, 2 Short Blocks, Stroke 570mm | THK | Stroke: 570mm | Mech Stopper Stroke: 580.0mm | Outer Rail Length: 700mm | Total Length L: 764mm | C: 600mm | G: 50mm | Block Type: D-type (2 Short Blocks) | Cover: No Cover | Mass: 6.2kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33) |
