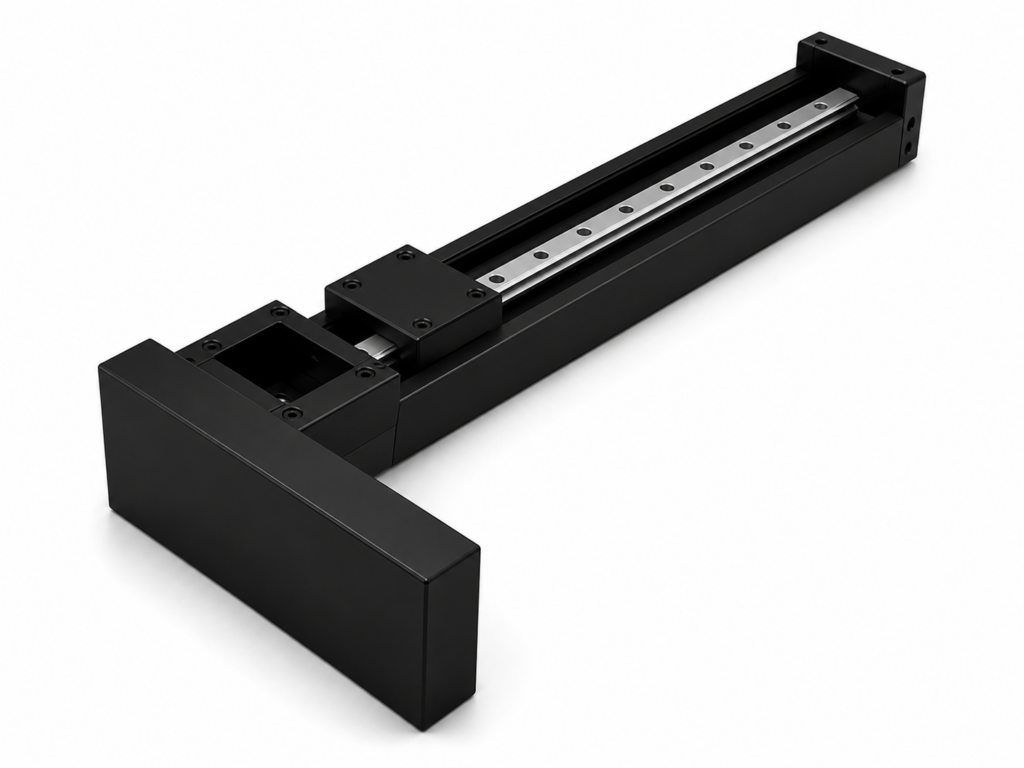

[THK] — SKR65 LM Guide Actuator, No Cover, Motor Parallel (Long Block ×1)
Family ID: THK-SKR65-NC_PAR-A
THK SKR65 LM Guide Actuator. No Cover, motor parallel configuration. Long Block ×1 (long type). Integrated LM block and ball screw nut for compact design. Equal load capacity in 4 directions. Stroke range: 790–1490 mm. See model number configuration guide A2-28.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| SKR6530A-0790 | SKR65 No Cover Parallel, Long Block ×1, Stroke 790mm | THK | Model: SKR65, Long Block ×1 | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️COVER_CODE_UNCONFIRMED) | Stroke: 790 mm | Outer Rail Length: 980 mm | Overall Length L1: 1078 mm | C: 900 mm | G: 40 mm | F: 800 mm | H: 90 mm | Mounting Holes n: 7 | Sensor Rail Holes n1: 5 | Mass: 31.9 kg | ||
| SKR6530A-0990 | SKR65 No Cover Parallel, Long Block ×1, Stroke 990mm | THK | Model: SKR65, Long Block ×1 | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️COVER_CODE_UNCONFIRMED) | Stroke: 990 mm | Outer Rail Length: 1180 mm | Overall Length L1: 1278 mm | C: 1050 mm | G: 65 mm | F: 1000 mm | H: 90 mm | Mounting Holes n: 8 | Sensor Rail Holes n1: 6 | Mass: 37.1 kg | ||
| SKR6530A-1190 | SKR65 No Cover Parallel, Long Block ×1, Stroke 1190mm | THK | Model: SKR65, Long Block ×1 | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️COVER_CODE_UNCONFIRMED) | Stroke: 1190 mm | Outer Rail Length: 1380 mm | Overall Length L1: 1478 mm | C: 1200 mm | G: 90 mm | F: 1200 mm | H: 90 mm | Mounting Holes n: 9 | Sensor Rail Holes n1: 7 | Mass: 42.3 kg | ||
| SKR6530A-1490 | SKR65 No Cover Parallel, Long Block ×1, Stroke 1490mm | THK | Model: SKR65, Long Block ×1 | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️COVER_CODE_UNCONFIRMED) | Stroke: 1490 mm | Outer Rail Length: 1680 mm | Overall Length L1: 1778 mm | C: 1500 mm | G: 90 mm | F: 1600 mm | H: 40 mm | Mounting Holes n: 11 | Sensor Rail Holes n1: 9 | Mass: 50.0 kg |
