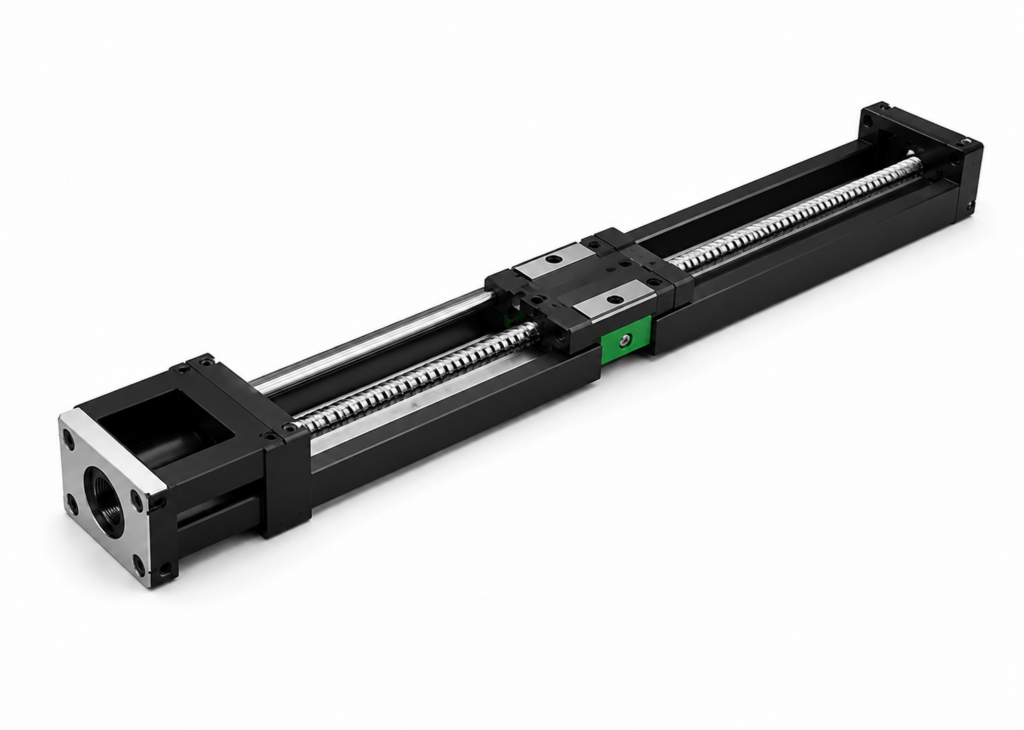

[THK] — SKR46 LM Guide Actuator, Motor Inline, Block A/B (No Cover, φ46)
Family ID: THK-SKR46AB-NC
THK SKR46 Series LM Guide Actuator with inline motor mount, Block A/B type (no cover). LM block and ball screw nut integrated for compact design. 4-direction equal load capacity. A-type: 1 long block; B-type: 2 long blocks. Stroke range 80~790mm.
14 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| SKR46NCA-0190 | THK SKR46, No Cover, 1 Long Block, Stroke 190mm | THK | Stroke: 190mm | Mech Stopper Stroke: 208.5mm | Outer Rail Length: 340mm | Total Length L: 440.5mm | C: 200mm | F: 200mm | H: 70mm | Block Type: A-type (1 Long Block) | Cover: No Cover | Mass: 6.7kg | Motor Mount: Inline | Rail Width: 46mm | Block Series: A/B | Type: LM Guide Actuator (SKR46) | ||
| SKR46NCA-0290 | THK SKR46, No Cover, 1 Long Block, Stroke 290mm | THK | Stroke: 290mm | Mech Stopper Stroke: 308.5mm | Outer Rail Length: 440mm | Total Length L: 540.5mm | C: 300mm | F: 400mm | H: 20mm | Block Type: A-type (1 Long Block) | Cover: No Cover | Mass: 8.1kg | Motor Mount: Inline | Rail Width: 46mm | Block Series: A/B | Type: LM Guide Actuator (SKR46) | ||
| SKR46NCA-0390 | THK SKR46, No Cover, 1 Long Block, Stroke 390mm | THK | Stroke: 390mm | Mech Stopper Stroke: 408.5mm | Outer Rail Length: 540mm | Total Length L: 640.5mm | C: 400mm | F: 400mm | H: 70mm | Block Type: A-type (1 Long Block) | Cover: No Cover | Mass: 9.5kg | Motor Mount: Inline | Rail Width: 46mm | Block Series: A/B | Type: LM Guide Actuator (SKR46) | ||
| SKR46NCA-0490 | THK SKR46, No Cover, 1 Long Block, Stroke 490mm | THK | Stroke: 490mm | Mech Stopper Stroke: 508.5mm | Outer Rail Length: 640mm | Total Length L: 740.5mm | C: 500mm | F: 600mm | H: 20mm | Block Type: A-type (1 Long Block) | Cover: No Cover | Mass: 10.9kg | Motor Mount: Inline | Rail Width: 46mm | Block Series: A/B | Type: LM Guide Actuator (SKR46) | ||
| SKR46NCA-0590 | THK SKR46, No Cover, 1 Long Block, Stroke 590mm | THK | Stroke: 590mm | Mech Stopper Stroke: 608.5mm | Outer Rail Length: 740mm | Total Length L: 840.5mm | C: 600mm | F: 600mm | H: 70mm | Block Type: A-type (1 Long Block) | Cover: No Cover | Mass: 12.3kg | Motor Mount: Inline | Rail Width: 46mm | Block Series: A/B | Type: LM Guide Actuator (SKR46) | ||
| SKR46NCA-0690 | THK SKR46, No Cover, 1 Long Block, Stroke 690mm | THK | Stroke: 690mm | Mech Stopper Stroke: 708.5mm | Outer Rail Length: 840mm | Total Length L: 940.5mm | C: 700mm | F: 800mm | H: 20mm | Block Type: A-type (1 Long Block) | Cover: No Cover | Mass: 13.8kg | Motor Mount: Inline | Rail Width: 46mm | Block Series: A/B | Type: LM Guide Actuator (SKR46) | ||
| SKR46NCA-0790 | THK SKR46, No Cover, 1 Long Block, Stroke 790mm | THK | Stroke: 790mm | Mech Stopper Stroke: 808.5mm | Outer Rail Length: 940mm | Total Length L: 1040.5mm | C: 800mm | F: 800mm | H: 70mm | Block Type: A-type (1 Long Block) | Cover: No Cover | Mass: 15.2kg | Motor Mount: Inline | Rail Width: 46mm | Block Series: A/B | Type: LM Guide Actuator (SKR46) | ||
| SKR46NCB-0080 | THK SKR46, No Cover, 2 Long Blocks, Stroke 80mm | THK | Stroke: 80mm | Mech Stopper Stroke: 98.5mm | Outer Rail Length: 340mm | Total Length L: 440.5mm | C: 200mm | F: 200mm | H: 70mm | Block Type: B-type (2 Long Blocks) | Cover: No Cover | Mass: 7.7kg | Motor Mount: Inline | Rail Width: 46mm | Block Series: A/B | Type: LM Guide Actuator (SKR46) | ||
| SKR46NCB-0180 | THK SKR46, No Cover, 2 Long Blocks, Stroke 180mm | THK | Stroke: 180mm | Mech Stopper Stroke: 198.5mm | Outer Rail Length: 440mm | Total Length L: 540.5mm | C: 300mm | F: 400mm | H: 20mm | Block Type: B-type (2 Long Blocks) | Cover: No Cover | Mass: 9.1kg | Motor Mount: Inline | Rail Width: 46mm | Block Series: A/B | Type: LM Guide Actuator (SKR46) | ||
| SKR46NCB-0280 | THK SKR46, No Cover, 2 Long Blocks, Stroke 280mm | THK | Stroke: 280mm | Mech Stopper Stroke: 298.5mm | Outer Rail Length: 540mm | Total Length L: 640.5mm | C: 400mm | F: 400mm | H: 70mm | Block Type: B-type (2 Long Blocks) | Cover: No Cover | Mass: 10.5kg | Motor Mount: Inline | Rail Width: 46mm | Block Series: A/B | Type: LM Guide Actuator (SKR46) | ||
| SKR46NCB-0380 | THK SKR46, No Cover, 2 Long Blocks, Stroke 380mm | THK | Stroke: 380mm | Mech Stopper Stroke: 398.5mm | Outer Rail Length: 640mm | Total Length L: 740.5mm | C: 500mm | F: 600mm | H: 20mm | Block Type: B-type (2 Long Blocks) | Cover: No Cover | Mass: 11.9kg | Motor Mount: Inline | Rail Width: 46mm | Block Series: A/B | Type: LM Guide Actuator (SKR46) | ||
| SKR46NCB-0480 | THK SKR46, No Cover, 2 Long Blocks, Stroke 480mm | THK | Stroke: 480mm | Mech Stopper Stroke: 498.5mm | Outer Rail Length: 740mm | Total Length L: 840.5mm | C: 600mm | F: 600mm | H: 70mm | Block Type: B-type (2 Long Blocks) | Cover: No Cover | Mass: 13.3kg | Motor Mount: Inline | Rail Width: 46mm | Block Series: A/B | Type: LM Guide Actuator (SKR46) | ||
| SKR46NCB-0580 | THK SKR46, No Cover, 2 Long Blocks, Stroke 580mm | THK | Stroke: 580mm | Mech Stopper Stroke: 598.5mm | Outer Rail Length: 840mm | Total Length L: 940.5mm | C: 700mm | F: 800mm | H: 20mm | Block Type: B-type (2 Long Blocks) | Cover: No Cover | Mass: 14.8kg | Motor Mount: Inline | Rail Width: 46mm | Block Series: A/B | Type: LM Guide Actuator (SKR46) | ||
| SKR46NCB-0680 | THK SKR46, No Cover, 2 Long Blocks, Stroke 680mm | THK | Stroke: 680mm | Mech Stopper Stroke: 698.5mm | Outer Rail Length: 940mm | Total Length L: 1040.5mm | C: 800mm | F: 800mm | H: 70mm | Block Type: B-type (2 Long Blocks) | Cover: No Cover | Mass: 16.2kg | Motor Mount: Inline | Rail Width: 46mm | Block Series: A/B | Type: LM Guide Actuator (SKR46) |
