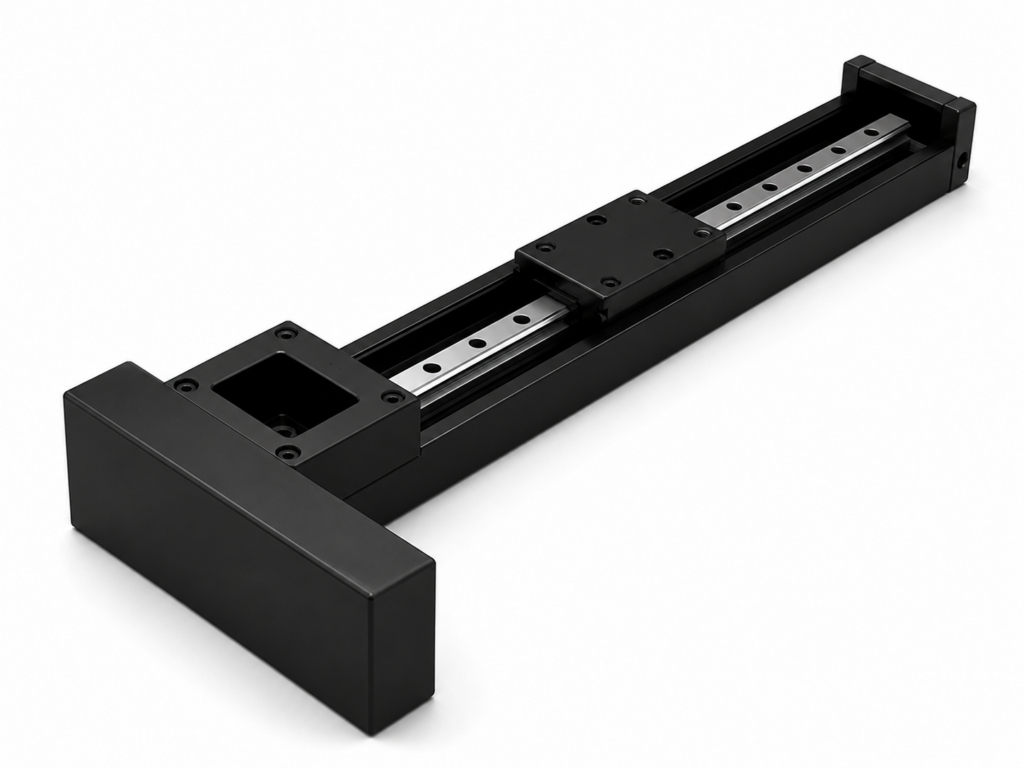

[THK] — SKR46 LM Guide Actuator, Motor Parallel, Block C/D (No Cover, φ46)
Family ID: THK-SKR46CDP-NC
THK SKR46 Series LM Guide Actuator with parallel motor mount, Block C/D type (no cover). Short block design. LM block and ball screw nut integrated for compact design. 4-direction equal load capacity. C-type: 1 short block; D-type: 2 short blocks. Stroke range 145~820mm.
14 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| SKR46NPC-0220 | THK SKR46, No Cover, 1 Short Block, Stroke 220mm | THK | Stroke: 220mm | Mech Stopper Stroke: 241.5mm | Outer Rail Length: 340mm | Total Length L: 419mm | C: 200mm | F: 200mm | H: 70mm | Block Type: C-type (1 Short Block) | Cover: No Cover | Mass: 7.3kg | Motor Mount: Parallel | Rail Width: 46mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR46) | ||
| SKR46NPC-0320 | THK SKR46, No Cover, 1 Short Block, Stroke 320mm | THK | Stroke: 320mm | Mech Stopper Stroke: 341.5mm | Outer Rail Length: 440mm | Total Length L: 519mm | C: 300mm | F: 400mm | H: 20mm | Block Type: C-type (1 Short Block) | Cover: No Cover | Mass: 8.7kg | Motor Mount: Parallel | Rail Width: 46mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR46) | ||
| SKR46NPC-0420 | THK SKR46, No Cover, 1 Short Block, Stroke 420mm | THK | Stroke: 420mm | Mech Stopper Stroke: 441.5mm | Outer Rail Length: 540mm | Total Length L: 619mm | C: 400mm | F: 400mm | H: 70mm | Block Type: C-type (1 Short Block) | Cover: No Cover | Mass: 10.1kg | Motor Mount: Parallel | Rail Width: 46mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR46) | ||
| SKR46NPC-0520 | THK SKR46, No Cover, 1 Short Block, Stroke 520mm | THK | Stroke: 520mm | Mech Stopper Stroke: 541.5mm | Outer Rail Length: 640mm | Total Length L: 719mm | C: 500mm | F: 600mm | H: 20mm | Block Type: C-type (1 Short Block) | Cover: No Cover | Mass: 11.5kg | Motor Mount: Parallel | Rail Width: 46mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR46) | ||
| SKR46NPC-0620 | THK SKR46, No Cover, 1 Short Block, Stroke 620mm | THK | Stroke: 620mm | Mech Stopper Stroke: 641.5mm | Outer Rail Length: 740mm | Total Length L: 819mm | C: 600mm | F: 600mm | H: 70mm | Block Type: C-type (1 Short Block) | Cover: No Cover | Mass: 12.9kg | Motor Mount: Parallel | Rail Width: 46mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR46) | ||
| SKR46NPC-0720 | THK SKR46, No Cover, 1 Short Block, Stroke 720mm | THK | Stroke: 720mm | Mech Stopper Stroke: 741.5mm | Outer Rail Length: 840mm | Total Length L: 919mm | C: 700mm | F: 800mm | H: 20mm | Block Type: C-type (1 Short Block) | Cover: No Cover | Mass: 14.3kg | Motor Mount: Parallel | Rail Width: 46mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR46) | ||
| SKR46NPC-0820 | THK SKR46, No Cover, 1 Short Block, Stroke 820mm | THK | Stroke: 820mm | Mech Stopper Stroke: 841.5mm | Outer Rail Length: 940mm | Total Length L: 1019mm | C: 800mm | F: 800mm | H: 70mm | Block Type: C-type (1 Short Block) | Cover: No Cover | Mass: 15.7kg | Motor Mount: Parallel | Rail Width: 46mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR46) | ||
| SKR46NPD-0145 | THK SKR46, No Cover, 2 Short Blocks, Stroke 145mm | THK | Stroke: 145mm | Mech Stopper Stroke: 164.5mm | Outer Rail Length: 340mm | Total Length L: 419mm | C: 200mm | F: 200mm | H: 70mm | Block Type: D-type (2 Short Blocks) | Cover: No Cover | Mass: 7.9kg | Motor Mount: Parallel | Rail Width: 46mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR46) | ||
| SKR46NPD-0245 | THK SKR46, No Cover, 2 Short Blocks, Stroke 245mm | THK | Stroke: 245mm | Mech Stopper Stroke: 264.5mm | Outer Rail Length: 440mm | Total Length L: 519mm | C: 300mm | F: 400mm | H: 20mm | Block Type: D-type (2 Short Blocks) | Cover: No Cover | Mass: 9.3kg | Motor Mount: Parallel | Rail Width: 46mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR46) | ||
| SKR46NPD-0345 | THK SKR46, No Cover, 2 Short Blocks, Stroke 345mm | THK | Stroke: 345mm | Mech Stopper Stroke: 364.5mm | Outer Rail Length: 540mm | Total Length L: 619mm | C: 400mm | F: 400mm | H: 70mm | Block Type: D-type (2 Short Blocks) | Cover: No Cover | Mass: 10.7kg | Motor Mount: Parallel | Rail Width: 46mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR46) | ||
| SKR46NPD-0445 | THK SKR46, No Cover, 2 Short Blocks, Stroke 445mm | THK | Stroke: 445mm | Mech Stopper Stroke: 464.5mm | Outer Rail Length: 640mm | Total Length L: 719mm | C: 500mm | F: 600mm | H: 20mm | Block Type: D-type (2 Short Blocks) | Cover: No Cover | Mass: 12.1kg | Motor Mount: Parallel | Rail Width: 46mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR46) | ||
| SKR46NPD-0545 | THK SKR46, No Cover, 2 Short Blocks, Stroke 545mm | THK | Stroke: 545mm | Mech Stopper Stroke: 564.5mm | Outer Rail Length: 740mm | Total Length L: 819mm | C: 600mm | F: 600mm | H: 70mm | Block Type: D-type (2 Short Blocks) | Cover: No Cover | Mass: 13.5kg | Motor Mount: Parallel | Rail Width: 46mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR46) | ||
| SKR46NPD-0645 | THK SKR46, No Cover, 2 Short Blocks, Stroke 645mm | THK | Stroke: 645mm | Mech Stopper Stroke: 664.5mm | Outer Rail Length: 840mm | Total Length L: 919mm | C: 700mm | F: 800mm | H: 20mm | Block Type: D-type (2 Short Blocks) | Cover: No Cover | Mass: 14.9kg | Motor Mount: Parallel | Rail Width: 46mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR46) | ||
| SKR46NPD-0745 | THK SKR46, No Cover, 2 Short Blocks, Stroke 745mm | THK | Stroke: 745mm | Mech Stopper Stroke: 764.5mm | Outer Rail Length: 940mm | Total Length L: 1019mm | C: 800mm | F: 800mm | H: 70mm | Block Type: D-type (2 Short Blocks) | Cover: No Cover | Mass: 16.3kg | Motor Mount: Parallel | Rail Width: 46mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR46) |
