Shaft Locking Elements
TSUBAKI

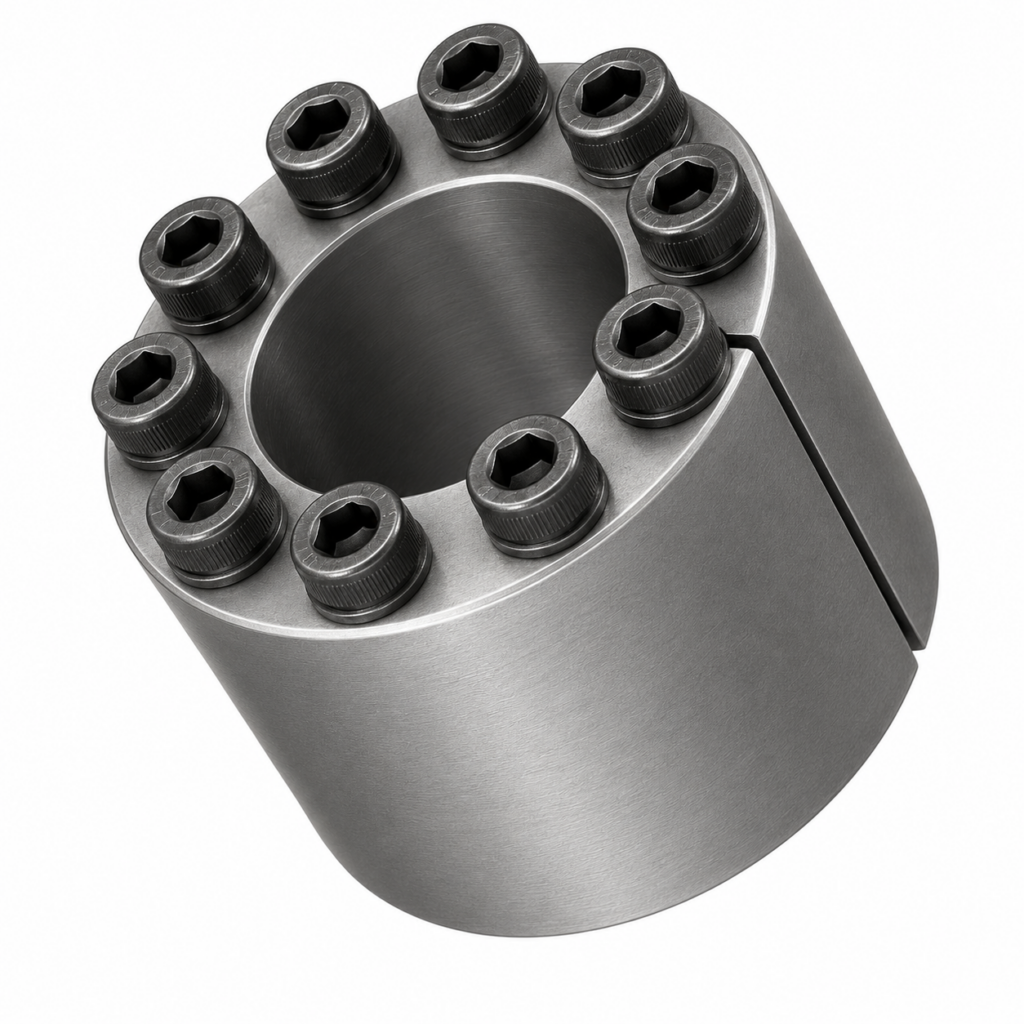

[Tsubaki] — Powerlock AD-N Series Shaft Locking Element (Nickel-Plated / Clean Room (AD-N-KP), Large (Ø95~300 mm))
Family ID: TSB-PL-ADN-KP-L
Tsubaki Powerlock AD-N Series — high-torque capacity shaft locking element. Designed for large torque transmission applications. Non-backlash friction connection; no keyway required. RoHS compliant. AD-N Standard: alloy steel. AD-N-KP: electroless nickel-plated for clean room use.
2 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| PL095X135AD-N-KP | Shaft Ø95 mm × Outer Ø135 mm | Tsubaki | Series: Powerlock AD-N | Grade: Nickel-Plated / Clean Room (AD-N-KP) | Size Range: Large (Ø95~300 mm) | Type: High-Torque Friction Shaft Locking Element | Feature: Large torque capacity | Keyway: Not Required | RoHS: Compliant | Finish: Electroless Nickel Plated | Application: Clean rooms | Shaft Diameter: 95 mm | Outer Diameter: 135 mm | ||
| PL100X145AD-N-KP | Shaft Ø100 mm × Outer Ø145 mm | Tsubaki | Series: Powerlock AD-N | Grade: Nickel-Plated / Clean Room (AD-N-KP) | Size Range: Large (Ø95~300 mm) | Type: High-Torque Friction Shaft Locking Element | Feature: Large torque capacity | Keyway: Not Required | RoHS: Compliant | Finish: Electroless Nickel Plated | Application: Clean rooms | Shaft Diameter: 100 mm | Outer Diameter: 145 mm |
