Shaft Locking Elements
TSUBAKI

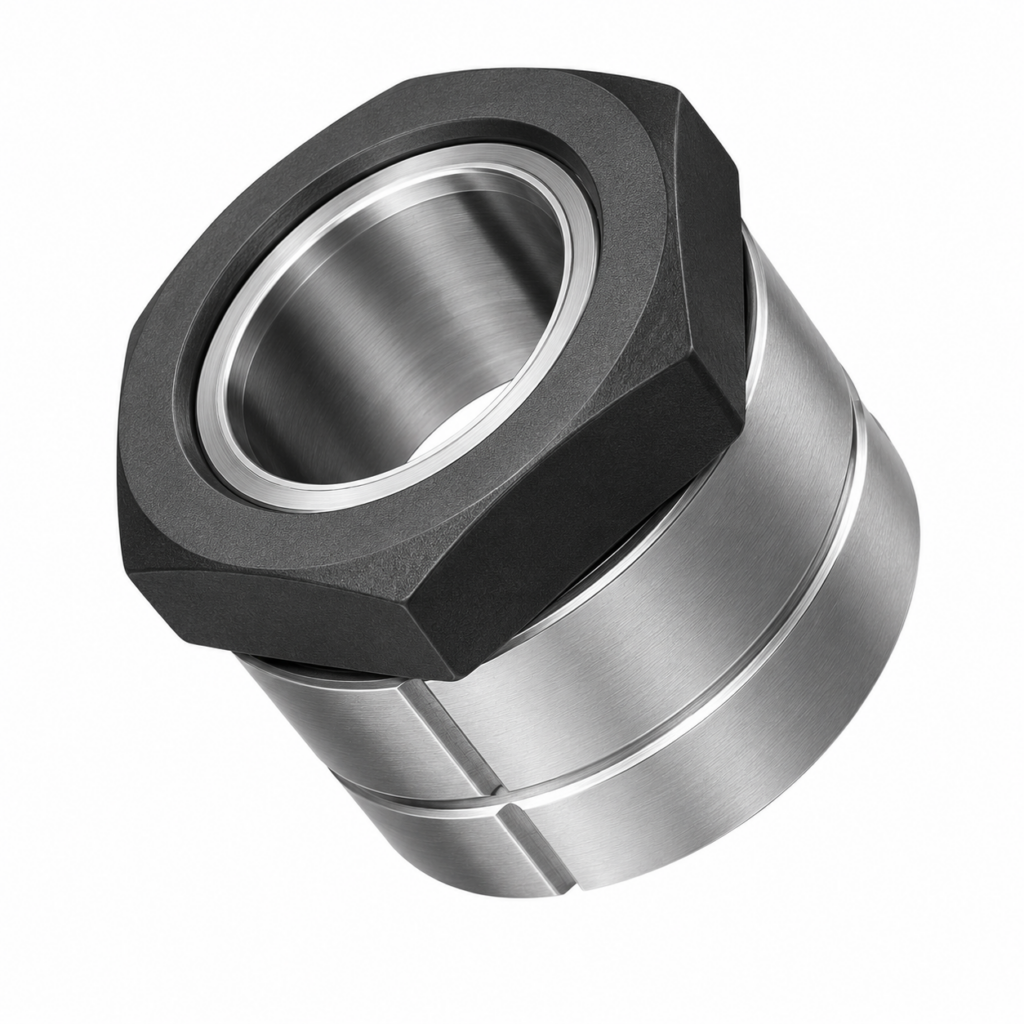

[Tsubaki] — Powerlock ML Series Shaft Locking Element (M Type (Single-Nut, Ø5~32 mm), Large (Ø24~32 mm))
Family ID: TSB-PL-ML-M-L
Tsubaki Powerlock ML Series — single-nut installation shaft locking element for quick and easy mounting. M Type: compact design for small shafts (Ø5~32 mm), tightened with a single nut. MG Type: larger shaft range (Ø34~75 mm). Surface-treated standard grade. RoHS compliant.
5 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| PL024X041M | Shaft Ø24 mm × Outer Ø41 mm | Tsubaki | Series: Powerlock ML | Type: M | Size Range: Large (Ø24~32 mm) | Feature: Single-nut installation — quick and easy mounting | Finish: Surface Treated | Keyway: Not Required | RoHS: Compliant | Application: General industrial, space-constrained installations | Shaft Diameter: 24 mm | Outer Diameter: 41 mm | ||
| PL025X046M | Shaft Ø25 mm × Outer Ø46 mm | Tsubaki | Series: Powerlock ML | Type: M | Size Range: Large (Ø24~32 mm) | Feature: Single-nut installation — quick and easy mounting | Finish: Surface Treated | Keyway: Not Required | RoHS: Compliant | Application: General industrial, space-constrained installations | Shaft Diameter: 25 mm | Outer Diameter: 46 mm | ||
| PL028X046M | Shaft Ø28 mm × Outer Ø46 mm | Tsubaki | Series: Powerlock ML | Type: M | Size Range: Large (Ø24~32 mm) | Feature: Single-nut installation — quick and easy mounting | Finish: Surface Treated | Keyway: Not Required | RoHS: Compliant | Application: General industrial, space-constrained installations | Shaft Diameter: 28 mm | Outer Diameter: 46 mm | ||
| PL030X050M | Shaft Ø30 mm × Outer Ø50 mm | Tsubaki | Series: Powerlock ML | Type: M | Size Range: Large (Ø24~32 mm) | Feature: Single-nut installation — quick and easy mounting | Finish: Surface Treated | Keyway: Not Required | RoHS: Compliant | Application: General industrial, space-constrained installations | Shaft Diameter: 30 mm | Outer Diameter: 50 mm | ||
| PL032X050M | Shaft Ø32 mm × Outer Ø50 mm | Tsubaki | Series: Powerlock ML | Type: M | Size Range: Large (Ø24~32 mm) | Feature: Single-nut installation — quick and easy mounting | Finish: Surface Treated | Keyway: Not Required | RoHS: Compliant | Application: General industrial, space-constrained installations | Shaft Diameter: 32 mm | Outer Diameter: 50 mm |
