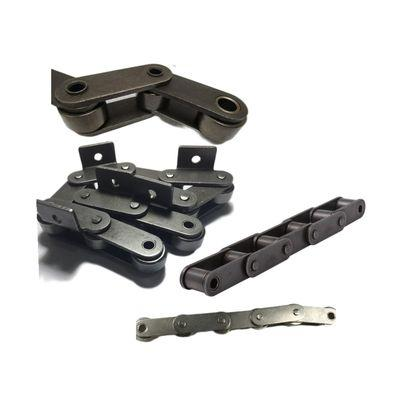

[Tsubaki] — RF2060R Double Pitch Conveyor Chain (R-Roller (Standard))

Family ID: TSB-RF2060R

Tsubaki Double Pitch Chain (RF series) — conveyor chain with pitch twice that of standard RS roller chain. Flat plate design allows attachment mounting. Conforms to ISO 1275 Type A, ASME B29.100, JIS B1803. S-roller (small) variants share roller diameter with RS chain; R-roller variants use larger rollers. Available with LA (bent lug) and LK (straight lug) attachments at various spacings and grades.

7 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code	Description	Brand	Spec
RF2060R-U	Unit Link — No Attachment	Tsubaki	Series: RF2060R \| Pitch: 38.10 mm \| Roller Diameter: 11.91 mm \| Inner Width: 12.57 mm \| Roller Type: R-Roller (Standard) \| Base RS Equivalent: RS60 \| Standard: ISO 1275 Type A / ASME B29.100 / JIS B1803 \| Attachment: LA (Bent Lug) or LK (Straight Lug) at various spacings \| Application: Conveyor systems, attachment-based transport, light-load long-span drives \| Attachment Config: No Attachment
RF2060R-1LA2-U	Unit Link — 1× LA (Bent Lug) Grade 2	Tsubaki	Series: RF2060R \| Pitch: 38.10 mm \| Roller Diameter: 11.91 mm \| Inner Width: 12.57 mm \| Roller Type: R-Roller (Standard) \| Base RS Equivalent: RS60 \| Standard: ISO 1275 Type A / ASME B29.100 / JIS B1803 \| Attachment: LA (Bent Lug) or LK (Straight Lug) at various spacings \| Application: Conveyor systems, attachment-based transport, light-load long-span drives \| Attachment Config: 1× LA (Bent Lug) Grade 2
RF2060R-2LA2-U	Unit Link — 2× LA (Bent Lug) Grade 2	Tsubaki	Series: RF2060R \| Pitch: 38.10 mm \| Roller Diameter: 11.91 mm \| Inner Width: 12.57 mm \| Roller Type: R-Roller (Standard) \| Base RS Equivalent: RS60 \| Standard: ISO 1275 Type A / ASME B29.100 / JIS B1803 \| Attachment: LA (Bent Lug) or LK (Straight Lug) at various spacings \| Application: Conveyor systems, attachment-based transport, light-load long-span drives \| Attachment Config: 2× LA (Bent Lug) Grade 2
RF2060R-4LA2-U	Unit Link — 4× LA (Bent Lug) Grade 2	Tsubaki	Series: RF2060R \| Pitch: 38.10 mm \| Roller Diameter: 11.91 mm \| Inner Width: 12.57 mm \| Roller Type: R-Roller (Standard) \| Base RS Equivalent: RS60 \| Standard: ISO 1275 Type A / ASME B29.100 / JIS B1803 \| Attachment: LA (Bent Lug) or LK (Straight Lug) at various spacings \| Application: Conveyor systems, attachment-based transport, light-load long-span drives \| Attachment Config: 4× LA (Bent Lug) Grade 2
RF2060R-1LK2-U	Unit Link — 1× LK (Straight Lug) Grade 2	Tsubaki	Series: RF2060R \| Pitch: 38.10 mm \| Roller Diameter: 11.91 mm \| Inner Width: 12.57 mm \| Roller Type: R-Roller (Standard) \| Base RS Equivalent: RS60 \| Standard: ISO 1275 Type A / ASME B29.100 / JIS B1803 \| Attachment: LA (Bent Lug) or LK (Straight Lug) at various spacings \| Application: Conveyor systems, attachment-based transport, light-load long-span drives \| Attachment Config: 1× LK (Straight Lug) Grade 2
RF2060R-2LK2-U	Unit Link — 2× LK (Straight Lug) Grade 2	Tsubaki	Series: RF2060R \| Pitch: 38.10 mm \| Roller Diameter: 11.91 mm \| Inner Width: 12.57 mm \| Roller Type: R-Roller (Standard) \| Base RS Equivalent: RS60 \| Standard: ISO 1275 Type A / ASME B29.100 / JIS B1803 \| Attachment: LA (Bent Lug) or LK (Straight Lug) at various spacings \| Application: Conveyor systems, attachment-based transport, light-load long-span drives \| Attachment Config: 2× LK (Straight Lug) Grade 2
RF2060R-4LK2-U	Unit Link — 4× LK (Straight Lug) Grade 2	Tsubaki	Series: RF2060R \| Pitch: 38.10 mm \| Roller Diameter: 11.91 mm \| Inner Width: 12.57 mm \| Roller Type: R-Roller (Standard) \| Base RS Equivalent: RS60 \| Standard: ISO 1275 Type A / ASME B29.100 / JIS B1803 \| Attachment: LA (Bent Lug) or LK (Straight Lug) at various spacings \| Application: Conveyor systems, attachment-based transport, light-load long-span drives \| Attachment Config: 4× LK (Straight Lug) Grade 2
