Roller Chains
TSUBAKI

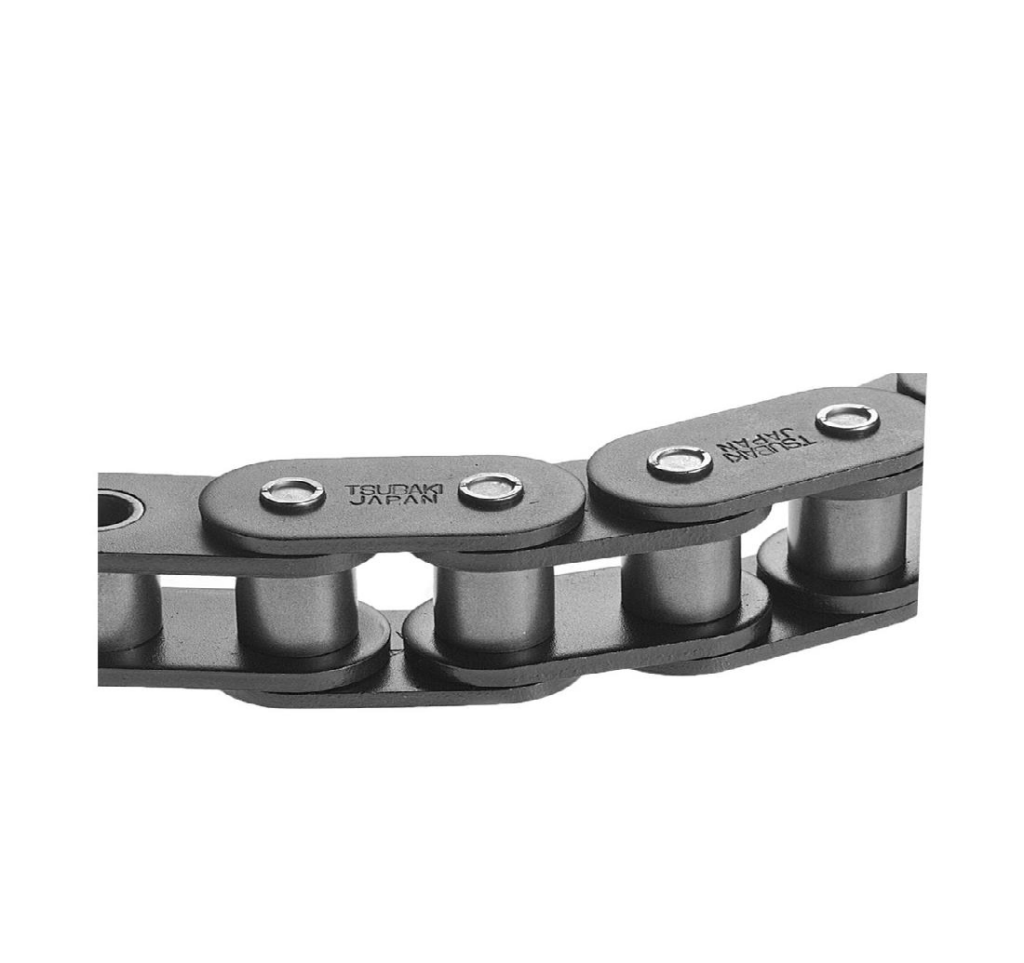

[Tsubaki] — RF2060R-LMC Lambda Double Pitch Chain (R-Roller (Standard))
Family ID: TSB-RF2060R-LMC
Tsubaki Lambda Double Pitch Chain (LMC) — double pitch conveyor chain with special sintered bushings for oil-free, maintenance-free operation. Wear life 2x longer than standard double pitch chain. Flat plates with Lambda attachment mounting. Oil-free / long-life / clean operation. Pitch is 2x standard A-series roller chain; flat plate design for attachment-based conveying.
2 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| RF2060R-LMC-U | Standard (Unit Link) | Tsubaki | Series: RF2060R-LMC | Pitch: 38.10 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Roller Type: R-Roller (Standard) | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard Double Pitch Chain | Plate: Flat (attachment-ready) | Standard: ISO 1275 / JIS B1803 | Application: Oil-free long-life conveying, clean environments, food processing | Link Type: Standard (Unit Link) | ||
| RF2060R-LMC-OL | Offset Link | Tsubaki | Series: RF2060R-LMC | Pitch: 38.10 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Roller Type: R-Roller (Standard) | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard Double Pitch Chain | Plate: Flat (attachment-ready) | Standard: ISO 1275 / JIS B1803 | Application: Oil-free long-life conveying, clean environments, food processing | Link Type: Offset Link |
