![[Tsubaki] — TTUPH826 Plastic Top Chain Sideflex Lapping Series (82.6 mm Wide, SS Pin)](https://img.prosourcemro.com/2026/05/001-282-1024x1024.png)
Roller Chains
TSUBAKI

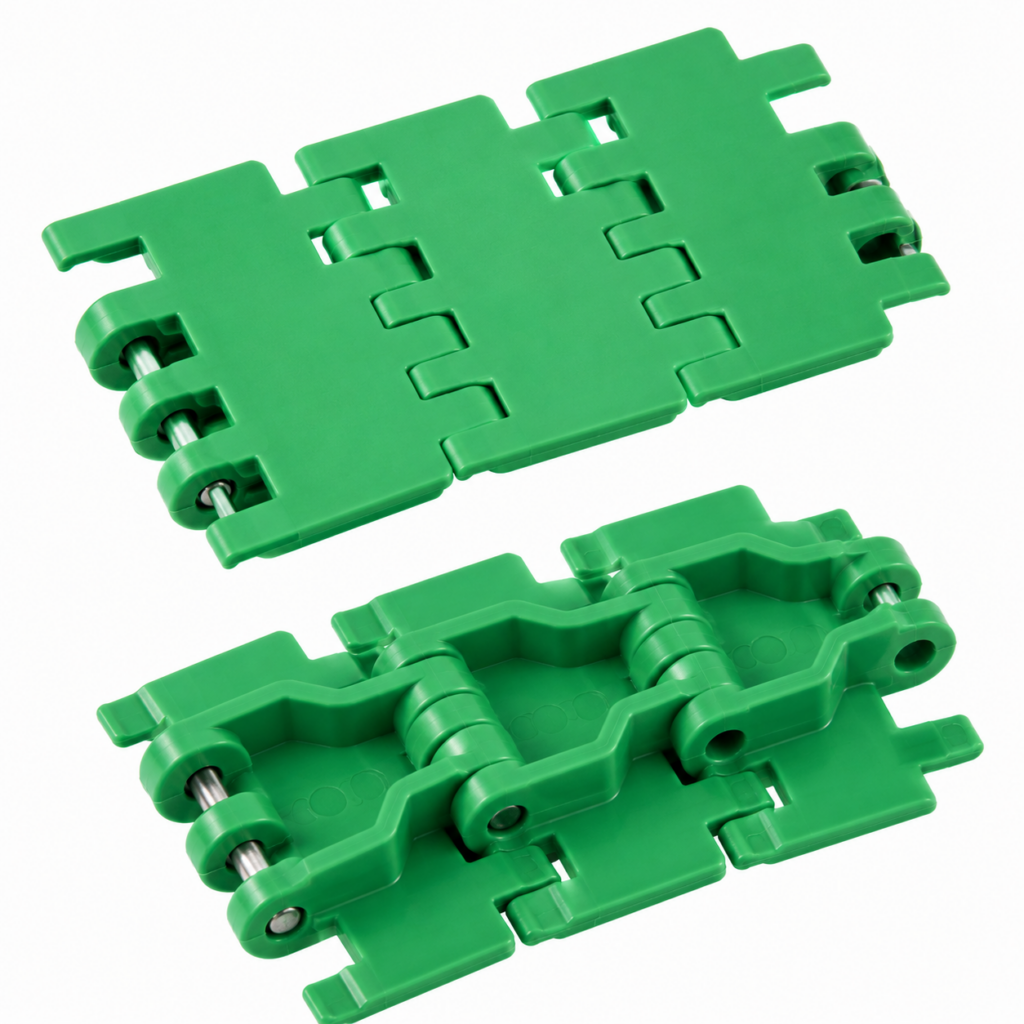

[Tsubaki] — TTUPH826 Plastic Top Chain Sideflex Lapping Series (82.6 mm Wide, SS Pin)
Family ID: TSB-TTUPH826
Tsubaki Plastic Top Chain TTUPH Series — comb-plate sideflex chain for curved conveying. Minimum sideflex radius: 500 mm. Lapping plate structure prevents items from catching on gaps. Ideal for unstable containers such as PET bottles and dessert cups on curved lines. Stainless steel pin type only.
3 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| TTUPH826-LFG | Low Friction Wear (LFG) | Tsubaki | Series: TTUPH | Plate Width: 82.6 mm | Pin Type: Stainless Steel Pin | Structure: Comb Plate (Lapping) + Sideflex | Min. Sideflex Radius: 500 mm | Feature: Lapping plates prevent product catch; stable curved transport | Application: PET bottles, dessert cups, unstable containers on curved conveyor lines | Grade: Low Friction Wear (LFG) | ||
| TTUPH826-LFB | Low Friction Wear (LFB) | Tsubaki | Series: TTUPH | Plate Width: 82.6 mm | Pin Type: Stainless Steel Pin | Structure: Comb Plate (Lapping) + Sideflex | Min. Sideflex Radius: 500 mm | Feature: Lapping plates prevent product catch; stable curved transport | Application: PET bottles, dessert cups, unstable containers on curved conveyor lines | Grade: Low Friction Wear (LFB) | ||
| TTUPH826-ULF | Ultra Low Friction (ULF) | Tsubaki | Series: TTUPH | Plate Width: 82.6 mm | Pin Type: Stainless Steel Pin | Structure: Comb Plate (Lapping) + Sideflex | Min. Sideflex Radius: 500 mm | Feature: Lapping plates prevent product catch; stable curved transport | Application: PET bottles, dessert cups, unstable containers on curved conveyor lines | Grade: Ultra Low Friction (ULF) |
