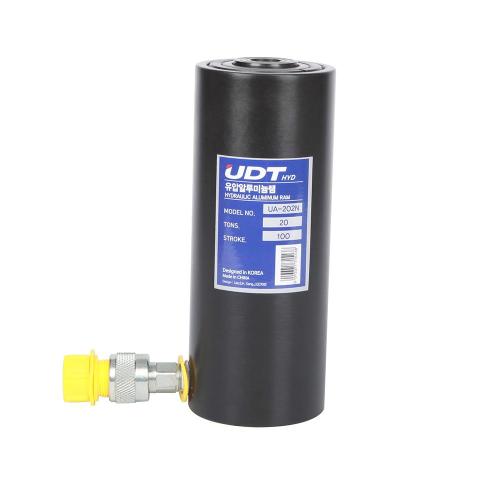

[UDT] — UA-202N Hydraulic Aluminum Ram
Family ID: 516-3207
The UDT UA-202N Hydraulic Aluminum Ram is a lightweight hydraulic forcing tool sourced direct from Korea. Hydraulic rams of this type are commonly used in construction, maintenance, and rescue operations to push, spread, or align heavy components where direct mechanical force is required. Request a quote today for export-ready supply at competitive pricing through a KITA-registered Korean exporter.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 516-3207 | UA-202N | UDT | ★20T * 100MM(UA-202N) | Outer Diameter: 85 | Weight: 3.8 | Stroke: 100 | Compatible Pump: UP-1BN | Self Height: 212 | Tonnage: 20 | ||
| 516-3216 | UA-302N | UDT | ★30T * 100MM(UA-302N) | Outer Diameter: 110 | Weight: 6.4 | Stroke: 100 | Compatible Pump: UP-1BN | Self Height: 222 | Tonnage: 30 | ||
| 516-3225 | UA-502N | UDT | ★50T * 100MM(UA-502N) | Outer Diameter: 140 | Weight: 10.5 | Stroke: 100 | Compatible Pump: UP-2AN | Self Height: 232 | Tonnage: 50 | ||
| 516-3234 | UA-1003N | UDT | ★100T * 50MM(UA-1003N) | Outer Diameter: 180 | Weight: 17 | Stroke: 50 | Compatible Pump: UP-2AN | Self Height: 208 | Tonnage: 100 |
