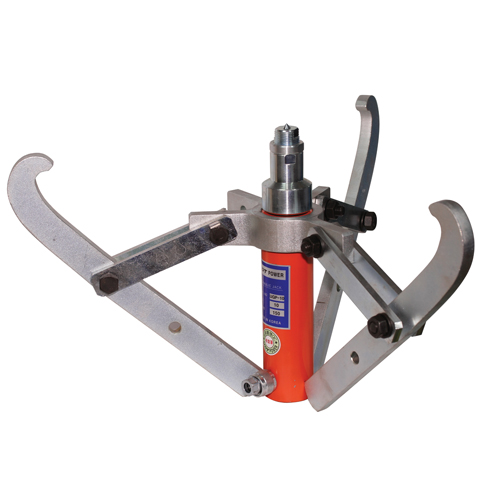

[UDT] — UGP-10 Hydraulic Hydraulic Gear Puller
Family ID: 501-9049
The UDT UGP-10 Hydraulic Gear Puller is a hydraulic-driven extraction tool designed to remove gears, bearings, pulleys, and hubs from shafts with controlled, even force, sourced direct from Korea. Hydraulic gear pullers are widely used in mechanical maintenance and repair operations across industries such as manufacturing, heavy equipment servicing, and automotive, where press-fit components must be removed without damaging surrounding parts. Request a quote today for export-ready supply of the UDT UGP-10 at competitive pricing through a KITA-registered Korean exporter.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 501-9049 | UGP-10 | UDT | UGP-10 (Pump Separate) | Max Opening: 220 | Weight: 15.2 | Stroke: 150 | Working Capacity: 10 | Compatible Pump: UP-1B | Max Depth: 210 | Jaw Length A: 390 | ||
| 501-9058 | UGP-20 | UDT | UGP-20(Pump Sold Separately) | Max Opening: 330 | Weight: 30 | Stroke: 150 | Working Capacity: 20 | Compatible Pump: UP-2A | Max Depth: 280 | Jaw Length A: 475 | ||
| 501-9067 | UGP-30 | UDT | UGP-30 (Pump Sold Separately) | Max Opening: 350 | Weight: 38 | Stroke: 150 | Working Capacity: 30 | Compatible Pump: UP-2A | Max Depth: 290 | Jaw Length A: 475 | ||
| 501-9076 | UGP-50 | UDT | UGP-50 (Pump Separate) | Max Opening: 380 | Weight: 85.3 | Stroke: 150 | Working Capacity: 50 | Compatible Pump: UP-3A | Max Depth: 350 | Jaw Length A: 720 |
