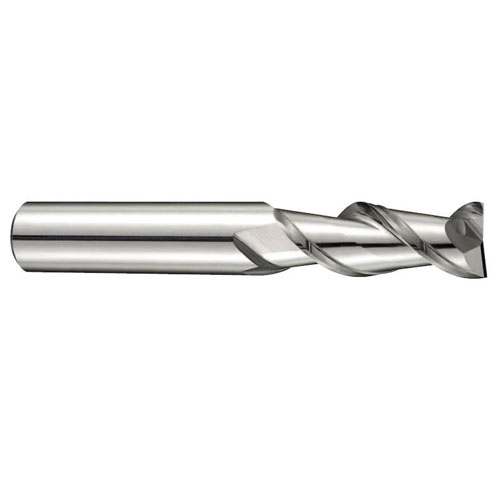

[YG-1] — E5D71060 Carbide End Mill Carbide End Mill (ALU-CUT)
End Mills YG-1

[YG-1] — E5D71060 Carbide End Mill Carbide End Mill (ALU-CUT)

Family ID: 306-8607

Carbide End Mill (ALU-CUT) from YG-1, sourced from Korea.

25 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
306-8607 E5D71060 YG-1 2F-6*6*17*60MM(E5D71060) | Spec: 6 | Flute Length: 17 | Overall Length: 60 | Shank Diameter: 6
306-8616 E5D71080 YG-1 2F-8*8*22*70MM(E5D71080) | Spec: 8 | Flute Length: 22 | Overall Length: 70 | Shank Diameter: 8
306-8698 E5D7106025 YG-1 2F-6*6*25*70MM(E5D7106025) | Spec: 6 | Flute Length: 25 | Overall Length: 70 | Shank Diameter: 6
306-9013 E5D71100 YG-1 2F-10*10*27*75MM(E5D71100) | Spec: 10 | Flute Length: 27 | Overall Length: 75 | Shank Diameter: 10
306-9022 E5D71120 YG-1 2F-12*12*32*80MM(E5D71120) | Spec: 12 | Flute Length: 32 | Overall Length: 80 | Shank d: 12
306-9068 E5D71040 YG-1 2F-4*6*13*55MM(E5D71040) | Spec: 4 | Flute Length: 13 | Overall Length: 55 | Shank Diameter: 6
306-9077 E5D71030 YG-1 2F-3*6*11*55MM(E5D71030) | Spec: 3 | Flute Length: 11 | Overall Length: 55 | Shank Diameter: 6
306-9086 E5D71050 YG-1 2F-5*6*17*55MM(E5D71050) | Spec: 5 | Flute Length: 17 | Overall Length: 55 | Shank d: 6
306-9095 E5D71160 YG-1 2F-16*16*42*100MM(E5D71160) | Spec: 16 | Flute Length: 42 | Overall Length: 100 | Shank Diameter: 16
306-9138 E5D71020 YG-1 2F-2*6*6*50MM(E5D71020) | Spec: 2 | Flute Length: 6 | Overall Length: 50 | Shank Diameter: 6
307-1133 E5D71010 YG-1 2F-1*6*3*50MM(E5D71010) | Spec: 1 | Flute Length: 3 | Overall Length: 50 | Shank Diameter: 6
307-1142 E5D71015 YG-1 2F-1.5*6*5*50MM(E5D71015) | Spec: 1.5 | Flute Length: 5 | Overall Length: 50 | Shank Diameter: 6
307-1151 E5D71025 YG-1 2F-2.5*6*8*55MM(E5D71025) | Spec: 2.5 | Flute Length: 8 | Overall Length: 55 | Shank Diameter: 6
307-1160 E5D7104016 YG-1 2F-4*6*16*65MM(E5D7104016) | Spec: 4 | Flute Length: 16 | Overall Length: 65 | Shank Diameter: 6
307-1179 E5D7105022 YG-1 2F-5*6*22*60MM(E5D7105022) | Spec: 5 | Flute Length: 22 | Overall Length: 60 | Shank Diameter: 6
307-1188 E5D7108030 YG-1 2F-8*8*30*80MM(E5D7108030) | Spec: 8 | Flute Length: 30 | Overall Length: 80 | Shank Diameter: 8
307-1197 E5D7110035 YG-1 2F-10*10*35*90MM(E5D7110035) | Spec: 10 | Flute Length: 35 | Overall Length: 90 | Shank d: 10
307-1203 E5D7112040 YG-1 2F-12*12*40*95MM(E5D7112040) | Spec: 12 | Flute Length: 40 | Overall Length: 95 | Shank Diameter: 12
307-6466 E5D71140 YG-1 2F-14*14*37*90MM(E5D71140) | Spec: 14 | Flute Length: 37 | Overall Length: 90 | Shank Diameter: 14
308-0195 E5D7101006 YG-1 2F-1*6*6*60MM(E5D7101006) | Spec: 1 | Flute Length: 6 | Overall Length: 60 | Shank d: 6
308-0292 E5D7102010 YG-1 2F-2*6*10*60MM(E5D7102010) | Spec: 2 | Flute Length: 10 | Overall Length: 60 | Shank Diameter: 6
308-0672 E5D7103015 YG-1 2F-3*6*15*65MM(E5D7103015) | Spec: 3 | Flute Length: 15 | Overall Length: 65 | Shank Diameter: 6
308-1510 E5D7101508 YG-1 2F-1.5*6*8*60MM(E5D7101508) | Spec: 1.5 | Flute Length: 8 | Overall Length: 60 | Shank Diameter: 6
308-4173 E5D71070 YG-1 2F-7*8*22*65MM(E5D71070) | Spec: 7 | Flute Length: 22 | Overall Length: 65 | Shank Diameter: 8
308-5084 E5D7116052 YG-1 2F-16*16*52*110MM(E5D7116052) | Spec: 16 | Flute Length: 52 | Overall Length: 110 | Shank Diameter: 16
