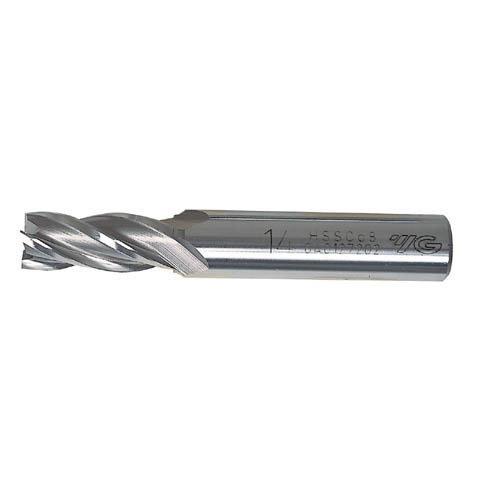

[YG-1] — E2412200K End Mill HSS End Mill
End Mills YG-1

[YG-1] — E2412200K End Mill HSS End Mill

Family ID: 301-3528

HSS End Mill from YG-1, sourced from Korea.

28 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
301-3528 E2412200K YG-1 4F-20*20*45*115MM(E2412200K) | Spec: 20 | Flute Length: 45 | Overall Length: 115 | Shank d: 20
301-3537 E2412210K YG-1 4F-21*20*45*115MM(E2412210K) | Spec: 21 | Flute Length: 45 | Overall Length: 115 | Shank Diameter: 20
301-3546 E2412220K YG-1 4F-22*20*45*115MM(E2412220K) | Spec: 22 | Flute Length: 45 | Overall Length: 115 | Shank Diameter: 20
301-3555 E2412230K YG-1 4F-23*25*50*125MM(E2412230K) | Spec: 23 | Flute Length: 50 | Overall Length: 125 | Shank d: 25
301-3564 E2412240K YG-1 4F-24*25*50*125MM(E2412240K) | Spec: 24 | Flute Length: 50 | Overall Length: 125 | Shank d: 25
301-3573 E2412250K YG-1 4F-25*25*50*125MM(E2412250K) | Spec: 25 | Flute Length: 50 | Overall Length: 125 | Shank d: 25
301-3582 E2412260K YG-1 4F-26*25*50*125MM(E2412260K) | Spec: 26 | Flute Length: 50 | Overall Length: 125 | Shank Diameter: 25
301-3591 E2412270K YG-1 4F-27*25*55*125MM(E2412270K) | Spec: 27 | Flute Length: 55 | Overall Length: 125 | Shank Diameter: 25
301-3607 E2412280K YG-1 4F-28*25*55*125MM(E2412280K) | Spec: 28 | Flute Length: 55 | Overall Length: 125 | Shank Diameter: 25
301-3616 E2412290K YG-1 4F-29*25*55*125MM(E2412290K) | Spec: 29 | Flute Length: 55 | Overall Length: 125 | Shank Diameter: 25
301-3625 E2412300K YG-1 4F-30*25*55*125MM(E2412300K) | Spec: 30 | Flute Length: 55 | Overall Length: 125 | Shank Diameter: 25
301-3634 E2412310K YG-1 4F-31*32*60*145MM(E2412310K) | Spec: 31 | Flute Length: 60 | Overall Length: 145 | Shank Diameter: 32
301-3643 E2412320K YG-1 4F-32*32*60*145MM(E2412320K) | Spec: 32 | Flute Length: 60 | Overall Length: 145 | Shank Diameter: 32
301-3652 E2412330K YG-1 4F-33*32*60*145MM(E2412330K) | Spec: 33 | Flute Length: 60 | Overall Length: 145 | Shank Diameter: 32
301-3661 E2412340K YG-1 4F-34*32*60*145MM(E2412340K) | Spec: 34 | Flute Length: 60 | Overall Length: 145 | Shank Diameter: 32
301-3670 E2412350K YG-1 4F-35*32*60*145MM(E2412350K) | Spec: 35 | Flute Length: 60 | Overall Length: 145 | Shank D: 32
301-3689 E2412360K YG-1 4F-36*32*65*150MM(E2412360K) | Spec: 36 | Flute Length: 65 | Overall Length: 150 | Shank Diameter: 32
301-3698 E2412370K YG-1 4F-37*32*65*150MM(E2412370K) | Spec: 37 | Flute Length: 65 | Overall Length: 150 | Shank Diameter: 32
301-3704 E2412380K YG-1 4F-38*32*65*150MM(E2412380K) | Spec: 38 | Flute Length: 65 | Overall Length: 150 | Shank Diameter: 32
301-3713 E2412390K YG-1 4F-39*32*65*150MM(E2412390K) | Spec: 39 | Flute Length: 65 | Overall Length: 150 | Shank Diameter: 32
301-3722 E2412400K YG-1 4F-40*32*65*150MM(E2412400K) | Spec: 40 | Flute Length: 65 | Overall Length: 150 | Shank Diameter: 32
301-3740 E2412420K YG-1 4F-42*42*70*160MM(E2412420K) | Spec: 42 | Flute Length: 70 | Overall Length: 160 | Shank Diameter: 42
301-3759 E2412430K YG-1 4F-43*42*70*160MM(E2412430K) | Spec: 43 | Flute Length: 70 | Overall Length: 160 | Shank Diameter: 42
301-3768 E2412440K YG-1 4F*44*42*70*160MM(E2412440K) | Spec: 44 | Flute Length: 70 | Overall Length: 160 | Shank D: 42
301-3777 E2412450K YG-1 4F-45*42*70*160MM(E2412450K) | Spec: 45 | Flute Length: 70 | Overall Length: 160 | Shank Diameter: 42
301-3786 E2412460K YG-1 4F-46*42*70*160MM(E2412460K) | Spec: 46 | Flute Length: 70 | Overall Length: 160 | Shank Diameter: 42
301-3795 E2412470K YG-1 4F-47*42*75*165MM(E2412470K) | Spec: 47 | Flute Length: 75 | Overall Length: 165 | Shank Diameter: 42
301-3829 E2412500K YG-1 4F-50*42*75*165MM(E2412500K) | Spec: 50 | Flute Length: 75 | Overall Length: 165 | Shank Diameter: 42
