End Mills
YG-1

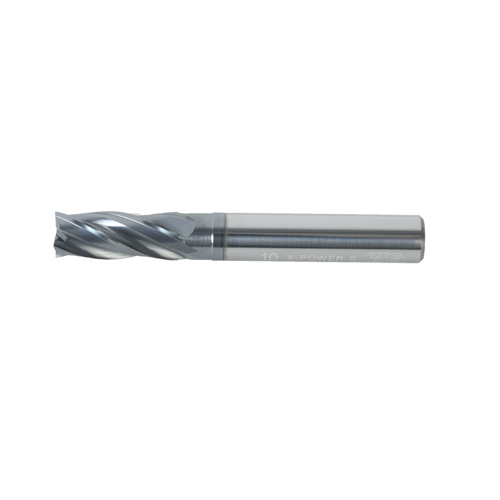

[YG-1] — SEM811140 Carbide End Mill Carbide End Mill (X-POWER S)
Family ID: 304-4874
Carbide End Mill (X-POWER S) from YG-1, sourced from Korea.
23 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 304-4874 | SEM811140 | YG-1 | 4F-14.0*16*35*90MM(SEM811140) | Spec: 14.0 | Flute Length: 35 | Overall Length: 90 | Shank Diameter: 16 | ||
| 304-4883 | SEM811160 | YG-1 | 4F-16.0*16*40*100MM(SEM811160) | Spec: 16.0 | Flute Length: 40 | Overall Length: 100 | Shank Diameter: 16 | ||
| 304-5855 | SEM811110 | YG-1 | 4F-11.0*12*28*75MM(SEM811110) | Spec: 11.0 | Flute Length: 28 | Overall Length: 75 | Shank Diameter: 12 | ||
| 304-6261 | SEM811190 | YG-1 | 4F-19.0*20*45*100MM(SEM811190) | Spec: 19.0 | Flute Length: 45 | Overall Length: 100 | Shank Diameter: 20 | ||
| 304-7516 | SEM811120 | YG-1 | 4F-12.0*12*30*80MM(SEM811120) | Spec: 12.0 | Flute Length: 30 | Overall Length: 80 | Shank d: 12 | ||
| 304-7570 | SEM811200 | YG-1 | 4F-20.0*20*45*100MM(SEM811200) | Spec: 20.0 | Flute Length: 45 | Overall Length: 100 | Shank Diameter: 20 | ||
| 304-8038 | SEM811220 | YG-1 | 4F-22.0*20*45*100MM(SEM811220) | Spec: 22.0 | Flute Length: 45 | Overall Length: 100 | Shank Diameter: 20 | ||
| 304-8409 | SEM811130 | YG-1 | 4F-13.0*12*35*90MM(SEM811130) | Spec: 13.0 | Flute Length: 35 | Overall Length: 90 | Shank Diameter: 12 | ||
| 304-9019 | SEM811105 | YG-1 | 4F-10.5*12*26*75MM(SEM811105) | Spec: 10.5 | Flute Length: 26 | Overall Length: 75 | Shank Diameter: 12 | ||
| 304-9028 | SEM811150 | YG-1 | 4F-15.0*16*38*90MM(SEM811150) | Spec: 15.0 | Flute Length: 38 | Overall Length: 90 | Shank Diameter: 16 | ||
| 304-9037 | SEM811180 | YG-1 | 4F-18.0*16*45*100MM(SEM811180) | Spec: 18.0 | Flute Length: 45 | Overall Length: 100 | Shank Diameter: 16 | ||
| 305-3942 | SEM811115 | YG-1 | 4F-11.5*12*29*80MM(SEM811115) | Spec: 11.5 | Flute Length: 29 | Overall Length: 80 | Shank Diameter: 12 | ||
| 305-3951 | SEM81112026 | YG-1 | 4F-12.0*12*26*80MM(SEM81112026) | Spec: 12.0 | Flute Length: 26 | Overall Length: 80 | Shank Diameter: 12 | ||
| 305-3960 | SEM81112035 | YG-1 | 4F-12.0*12*35*80MM(SEM81112035) | Spec: 12.0 | Flute Length: 35 | Overall Length: 80 | Shank Diameter: 12 | ||
| 305-3979 | SEM81112040 | YG-1 | 4F-12.0*12*40*80MM(SEM81112040) | Spec: 12.0 | Flute Length: 40 | Overall Length: 80 | Shank d: 12 | ||
| 305-3988 | SEM81114012S | YG-1 | 4F-14.0*12*35*90MM(SEM81114012S) | Spec: 14.0 | Flute Length: 35 | Overall Length: 90 | Shank Diameter: 12 | ||
| 305-3997 | SEM81116032 | YG-1 | 4F-16.0*16*32*100MM(SEM81116032) | Spec: 16.0 | Flute Length: 32 | Overall Length: 100 | Shank Diameter: 16 | ||
| 305-4002 | SEM811170 | YG-1 | 4F-17.0*16*43*100MM(SEM811170) | Spec: 17.0 | Flute Length: 43 | Overall Length: 100 | Shank Diameter: 16 | ||
| 305-4011 | SEM81118018S | YG-1 | 4F-18.0*18*45*100MM(SEM81118018S) | Spec: 18.0 | Flute Length: 45 | Overall Length: 100 | Shank Diameter: 18 | ||
| 305-4020 | SEM81120040 | YG-1 | 4F-20.0*20*40*100MM(SEM81120040) | Spec: 20.0 | Flute Length: 40 | Overall Length: 100 | Shank Diameter: 20 | ||
| 305-4039 | SEM811210 | YG-1 | 4F-21.0*20*45*100MM(SEM811210) | Spec: 21.0 | Flute Length: 45 | Overall Length: 100 | Shank Diameter: 20 | ||
| 305-4057 | SEM811240 | YG-1 | 4F-24.0*25*50*120MM(SEM811240) | Spec: 24.0 | Flute Length: 50 | Overall Length: 120 | Shank Diameter: 25 | ||
| 305-4066 | SEM811250 | YG-1 | 4F-25.0*25*50*120MM(SEM811250) | Spec: 25.0 | Flute Length: 50 | Overall Length: 120 | Shank Diameter: 25 |
