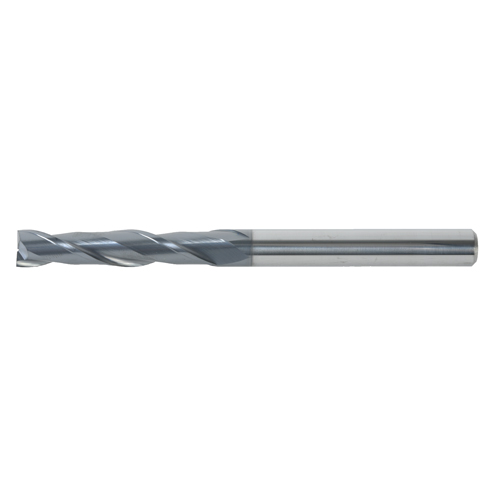

[YG-1] — SEM81616050 Carbide End Mill Carbide Long End Mill (X-POWER S)
End Mills YG-1

[YG-1] — SEM81616050 Carbide End Mill Carbide Long End Mill (X-POWER S)

Family ID: 304-4625

Carbide Long End Mill (X-POWER S) from YG-1, sourced from Korea.

20 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
304-4625 SEM81616050 YG-1 2F-16*16*50*110MM(SEM81616050) | Spec: 16.0 | Flute Length: 50 | Overall Length: 110 | Shank Diameter: 16
304-5466 SEM81620050 YG-1 2F-20*20*50*110MM(SEM81620050) | Spec: 20 | Flute Length: 50 | Overall Length: 110 | Shank d: 20
304-5697 SEM81612055 YG-1 2F-12*12*55*110MM(SEM81612055) | Spec: 12.0 | Flute Length: 55 | Overall Length: 110 | Shank d: 12
304-5916 SEM81612045 YG-1 2F-12*12*45*100MM(SEM81612045) | Spec: 12.0 | Flute Length: 45 | Overall Length: 100 | Shank Diameter: 12
304-5989 SEM81612040 YG-1 2F-12*12*40*90MM(SEM81612040) | Spec: 12.0 | Flute Length: 40 | Overall Length: 90 | Shank Diameter: 12
305-4695 SEM81612050 YG-1 2F-12*12*50*110MM(SEM81612050) | Spec: 12.0 | Flute Length: 50 | Overall Length: 110 | Shank Diameter: 12
305-4701 SEM81612060 YG-1 2F-12*12*60*120MM(SEM81612060) | Spec: 12.0 | Flute Length: 60 | Overall Length: 120 | Shank Diameter: 12
305-4710 SEM81612065 YG-1 2F-12*12*65*150MM(SEM81612065) | Spec: 12.0 | Flute Length: 65 | Overall Length: 150 | Shank d: 12
305-4729 SEM81612070 YG-1 2F-12*12*70*200MM(SEM81612070) | Spec: 12.0 | Flute Length: 70 | Overall Length: 200 | Shank Diameter: 12
305-4738 SEM81614050 YG-1 2F-14*16*50*110MM(SEM81614050) | Spec: 14.0 | Flute Length: 50 | Overall Length: 110 | Shank Diameter: 16
305-4756 SEM81616060 YG-1 2F-16*16*60*120MM(SEM81616060) | Spec: 16.0 | Flute Length: 60 | Overall Length: 120 | Shank Diameter: 16
305-4765 SEM81616070 YG-1 2F-16*16*70*130MM(SEM81616070) | Spec: 16.0 | Flute Length: 70 | Overall Length: 130 | Shank Diameter: 16
305-4774 SEM81616080 YG-1 2F-16*16*80*150MM(SEM81616080) | Spec: 16.0 | Flute Length: 80 | Overall Length: 150 | Shank Diameter: 16
305-4783 SEM81616090 YG-1 2F-16*16*90*150MM(SEM81616090) | Spec: 16.0 | Flute Length: 90 | Overall Length: 150 | Shank Diameter: 16
305-4792 SEM816160110 YG-1 2F-16*16*110*200MM(SEM816160110) | Spec: 16.0 | Flute Length: 110 | Overall Length: 200 | Shank Diameter: 16
305-4808 SEM816160120 YG-1 2F-16*16*120*250MM(SEM816160120) | Spec: 16.0 | Flute Length: 120 | Overall Length: 250 | Shank Diameter: 16
306-0544 SEM81620060 YG-1 2F-20*20*60*120MM(SEM81620060) | Spec: 20 | Flute Length: 60 | Overall Length: 120 | Shank Diameter: 20
307-5874 SEM81620080 YG-1 2F-20*20*80*150MM(SEM81620080) | Spec: 20 | Flute Length: 80 | Overall Length: 150 | Shank Diameter: 20
307-5917 SEM81620070 YG-1 2F-20*20*70*130MM(SEM81620070) | Spec: 20 | Flute Length: 70 | Overall Length: 130 | Shank Diameter: 20
308-9132 SEM81620090 YG-1 2F-20*20*90*150MM(SEM81620090) | Spec: 20.0 | Flute Length: 90 | Overall Length: 150 | Shank d: 20
