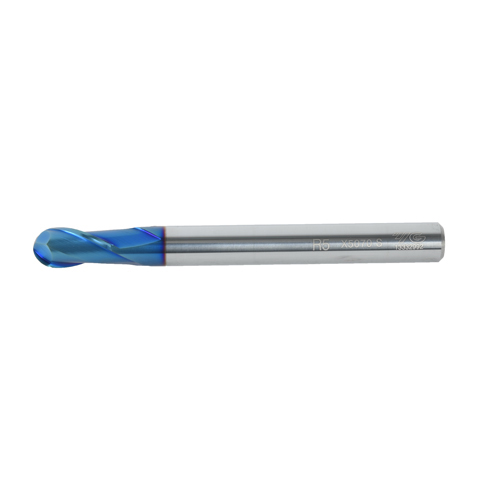

[YG-1] — SG8A38020 Carbide End Mill Carbide Ball End Mill (X5070S)
End Mills YG-1

[YG-1] — SG8A38020 Carbide End Mill Carbide Ball End Mill (X5070S)

Family ID: 304-5059

Carbide Ball End Mill (X5070S) from YG-1, sourced from Korea.

17 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
304-5059 SG8A38020 YG-1 2*6*5*50MM(SG8A38020) | Spec: 1 | Flute Length: 5 | Overall Length: 50 | Shank d: 6
304-5077 SG8A380404S YG-1 4*4*8*80MM(SG8A380404S) | Spec: 2 | Flute Length: 8 | Overall Length: 80 | Shank Diameter: 4
304-5147 SG8A38040 YG-1 4*6*8*70MM(SG8A38040) | Spec: 2 | Flute Length: 8 | Overall Length: 70 | Shank Diameter: 6
304-5350 SG8A380104S YG-1 1*4*2.5*50MM(SG8A380104S) | Spec: 0.5 | Flute Length: 2.5 | Overall Length: 50 | Shank Diameter: 4
304-8162 SG8A38030 YG-1 3*6*8*60MM(SG8A38030) | Spec: 1.5 | Flute Length: 8 | Overall Length: 60 | Shank Diameter: 6
305-2341 SG8A38003 YG-1 0.3*4*0.6*40(SG8A38003) | Spec: 0.15 | Flute Length: 0.6 | Overall Length: 40 | Shank Diameter: 4
305-2350 SG8A38004 YG-1 0.4*4*0.8*40(SG8A38004) | Spec: 0.2 | Flute Length: 0.8 | Overall Length: 40 | Shank Diameter: 4
305-2369 SG8A38005 YG-1 0.5*4*1.0*40(SG8A38005) | Spec: 0.25 | Flute Length: 1.0 | Overall Length: 40 | Shank Diameter: 4
305-2396 SG8A38008 YG-1 0.8*4*1.6*40(SG8A38008) | Spec: 0.4 | Flute Length: 1.6 | Overall Length: 40 | Shank d: 4
305-2402 SG8A38009 YG-1 0.9*4*1.8*40MM(SG8A38009) | Spec: 0.45 | Flute Length: 1.8 | Overall Length: 40 | Shank Diameter: 4
305-2411 SG8A38010 YG-1 1*6*2.5*50MM(SG8A38010) | Spec: 0.5 | Flute Length: 2.5 | Overall Length: 50 | Shank Diameter: 6
305-2420 SG8A38012 YG-1 1.2*6*3*50MM(SG8A38012) | Spec: 0.6 | Flute Length: 3 | Overall Length: 50 | Shank Diameter: 6
305-2448 SG8A38015 YG-1 1.5*6*4*50MM(SG8A38015) | Spec: 0.75 | Flute Length: 4 | Overall Length: 50 | Shank d: 6
305-2457 SG8A380204S YG-1 2*4*5.0*50MM(SG8A380204S) | Spec: 1 | Flute Length: 5 | Overall Length: 50 | Shank Diameter: 4
305-2466 SG8A38025 YG-1 2.5*6*7*60MM(SG8A38025) | Spec: 1.25 | Flute Length: 7 | Overall Length: 60 | Shank d: 6
305-2475 SG8A380303S YG-1 3*3*8*70MM(SG8A380303S) | Spec: 1.5 | Flute Length: 8 | Overall Length: 70 | Shank d: 3
305-2484 SG8A38035 YG-1 3.5*6*8*70MM(SG8A38035) | Spec: 1.75 | Flute Length: 8 | Overall Length: 70 | Shank d: 6
