End Mills
YG-1

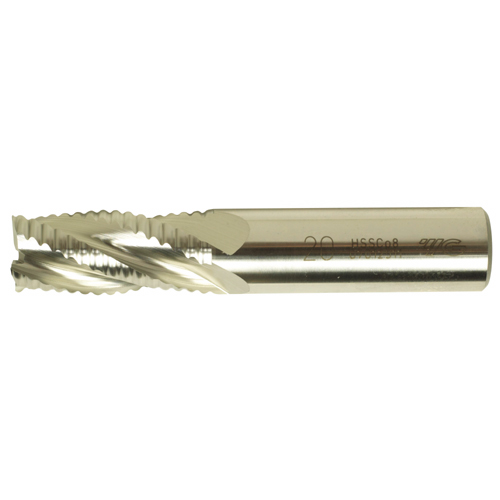

[YG-1] — E2758060K End Mill HSS Flapping End Mill
Family ID: 301-8523
HSS Flapping End Mill from YG-1, sourced from Korea.
35 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 301-8523 | E2758060K | YG-1 | 6*8*15*60MM(E2758060K) | Spec: 6 | Flute Length: 15(15) | Overall Length: 60(60) | Product Name: Standard | Shank Diameter: 8(6) | ||
| 301-8532 | E2758070K | YG-1 | 7*10*20*65MM(E2758070K) | Spec: 7 | Flute Length: 20 | Overall Length: 65 | Product Name: Standard | Shank Dia: 10 | ||
| 301-8541 | E2758080K | YG-1 | 8*10*20*65MM(E2758080K) | Spec: 8 | Flute Length: 20(20) | Overall Length: 65(65) | Description: General Purpose | Shank d: 10(8) | ||
| 301-8550 | E2758090K | YG-1 | 9*12*25*75MM(E2758090K) | Spec: 9 | Flute Length: 25(25) | Overall Length: 75(75) | Product Type: Standard | Shank Diameter: 12(10) | ||
| 301-8569 | E2758100K | YG-1 | 10*12*25*75MM(E2758100K) | Spec: 10 | Flute Length: 25(25) | Overall Length: 75(75) | Product Name: Standard | Shank Diameter: 12(10) | ||
| 301-8578 | E2758110K | YG-1 | 11*12*30*80MM(E2758110K) | Spec: 11 | Flute Length: 30 | Overall Length: 80 | Description: Standard | Shank d: 12 | ||
| 301-8587 | E2758120K | YG-1 | 12*12*30*80MM(E2758120K) | Spec: 12 | Flute Length: 30 | Overall Length: 80 | Product Name: General | Shank Diameter: 12 | ||
| 301-8596 | E2758130K | YG-1 | 13*16*35*90MM(E2758130K) | Spec: 13 | Flute Length: 35 | Overall Length: 90 | Product Name: Standard | Shank Diameter: 16 | ||
| 301-8602 | E2758140K | YG-1 | 14*16*35*90MM(E2758140K) | Spec: 14 | Flute Length: 35 | Overall Length: 90 | Product Name: Standard | Shank Diameter: 16 | ||
| 301-8611 | E2758150K | YG-1 | 15*16*40*95MM(E2758150K) | Spec: 15 | Flute Length: 40(40) | Overall Length: 95(95) | Product Name: Standard | Shank Diameter: 16(12) | ||
| 301-8620 | E2758160K | YG-1 | 16*16*40*95MM(E2758160K) | Spec: 16 | Flute Length: 40 | Overall Length: 95 | Product Name: General | Shank Diameter: 16 | ||
| 301-8639 | E2758170K | YG-1 | 17*16*40*95MM(E2758170K) | Spec: 17 | Flute Length: 40 | Overall Length: 95 | Product Name: Standard | Shank Diameter: 16 | ||
| 301-8648 | E2758180K | YG-1 | 18*20*40*105MM(E2758180K) | Spec: 18 | Flute Length: 40 | Overall Length: 105 | Product Name: Standard | Shank Diameter: 20 | ||
| 301-8657 | E2758190K | YG-1 | 19*20*45*110MM(E2758190K) | Spec: 19 | Flute Length: 45 | Overall Length: 110 | Product Name: Standard | Shank d: 20 | ||
| 301-8666 | E2758200K | YG-1 | 20*20*45*110MM(E2758200K) | Spec: 20 | Flute Length: 45 | Overall Length: 110 | Product Name: General | Shank d: 20 | ||
| 301-8675 | E2758210K | YG-1 | 21*20*45*110MM(E2758210K) | Spec: 21 | Flute Length: 45 | Overall Length: 110 | Product Name: General | Shank Diameter: 20 | ||
| 301-8684 | E2758220K | YG-1 | 22*20*45*110MM(E2758220K) | Spec: 22 | Flute Length: 45 | Overall Length: 110 | Product: General | Shank Diameter: 20 | ||
| 301-8693 | E2758230K | YG-1 | 23*20*45*110MM(E2758230K) | Spec: 23 | Flute Length: 45 | Overall Length: 110 | Product Name: Standard | Shank Dia: 20 | ||
| 301-8709 | E2758240K | YG-1 | 24*25*50*120MM(E2758240K) | Spec: 24 | Flute Length: 50 | Overall Length: 120 | Description: General Purpose | Shank Diameter: 25 | ||
| 301-8718 | E2758250K | YG-1 | 25*25*50*120MM(E2758250K) | Spec: 25 | Flute Length: 50 | Overall Length: 120 | Product Name: Standard | Shank Diameter: 25 | ||
| 301-8727 | E2758260K | YG-1 | 26*25*50*120MM(E2758260K) | Spec: 26 | Flute Length: 50 | Overall Length: 120 | Product Name: Standard | Shank D: 25 | ||
| 301-8736 | E2758270K | YG-1 | 27*25*55*125MM(E2758270K) | Spec: 27 | Flute Length: 55 | Overall Length: 125 | Description: General Purpose | Shank d: 25 | ||
| 301-8745 | E2758280K | YG-1 | 28*25*55*125MM(E2758280K) | Spec: 28 | Flute Length: 55 | Overall Length: 125 | Product Name: General | Shank Diameter: 25 | ||
| 301-8754 | E2758300K | YG-1 | 30*25*55*125MM(E2758300K) | Spec: 30 | Flute Length: 55 | Overall Length: 125 | Product Name: Standard | Shank Diameter: 25 | ||
| 301-8772 | E2758320K | YG-1 | 32*32*60*145MM(E2758320K) | Spec: 32 | Flute Length: 60 | Overall Length: 145 | Description: Standard | Shank Diameter: 32 | ||
| 301-8781 | E2758330K | YG-1 | 33*32*60*145MM(E2758330K) | Spec: 33 | Flute Length: 60 | Overall Length: 145 | Product Name: Standard | Shank Diameter: 32 | ||
| 301-8790 | E2758340K | YG-1 | 34*32*60*145MM(E2758340K) | Spec: 34 | Flute Length: 60 | Overall Length: 145 | Product Name: Standard | Shank Diameter: 32 | ||
| 301-8806 | E2758350K | YG-1 | 35*32*60*145MM(E2758350K) | Spec: 35 | Flute Length: 60 | Overall Length: 145 | Product Name: Standard | Shank Diameter: 32 | ||
| 301-8815 | E2758360K | YG-1 | 36*32*60*145MM(E2758360K) | Spec: 36 | Flute Length: 60 | Overall Length: 145 | Product Name: Standard | Shank Diameter: 32 | ||
| 301-8833 | E2758380K | YG-1 | 38*32*65*150MM(E2758380K) | Spec: 38 | Flute Length: 65 | Overall Length: 150 | Product Name: Standard | Shank Diameter: 32 | ||
| 301-8842 | E2758390K | YG-1 | 39*32*65*150MM(E2758390K) | Spec: 39 | Flute Length: 65 | Overall Length: 150 | Product Name: Standard | Shank d: 32 | ||
| 301-8851 | E2758400K | YG-1 | 40*32*65*150MM(E2758400K) | Spec: 40 | Flute Length: 65 | Overall Length: 150 | Product Name: Standard | Shank d: 32 | ||
| 301-8860 | E2758420K | YG-1 | 42*42*65*155MM(E2758420K) | Spec: 42 | Flute Length: 65 | Overall Length: 155 | Product Name: Standard | Shank Diameter: 42 | ||
| 301-8888 | E2758450K | YG-1 | 45*42*70*160MM(E2758450K) | Spec: 45 | Flute Length: 70 | Overall Length: 160 | Product Name: Standard | Shank Diameter: 42 | ||
| 301-8912 | E2758500K | YG-1 | 50*42*70*160MM(E2758500K) | Spec: 50 | Flute Length: 70 | Overall Length: 160 | Product Name: Standard | Shank Diameter: 42 |
