![[YG-1] — T2197201 Tap Coil Spiral Tap](https://prosourcemro.com/wp-content/uploads/2026/05/1202812-1.jpg)
Taps
YG-1

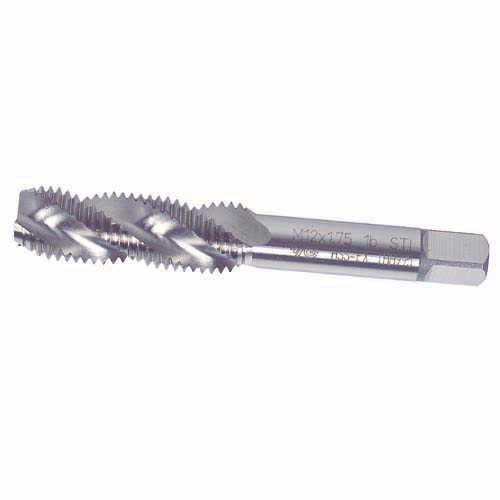

[YG-1] — T2197201 Tap Coil Spiral Tap
Family ID: 303-4196
Coil Spiral Tap from YG-1, sourced from Korea.
11 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 303-4196 | T2197201 | YG-1 | 3-0.5-48L (T2197201) | Spec: 3x0.5 | Drill Diameter: 3.1 | Tap OD: 3.65 | ||
| 303-4202 | T2197241 | YG-1 | 4-0.7-60L (T2197241) | Spec: 4x0.7 | Drill Diameter: 4.2 | Tap Outer Diameter: 4.9 | ||
| 303-4211 | T2197281 | YG-1 | 5-0.8-62L (T2197281) | Spec: 5x0.8 | Drill Diameter: 5.2 | Tap Major Diameter: 6.04 | ||
| 303-4220 | T2197311 | YG-1 | 6-1.0-65L (T2197311) | Spec: 6x1.0 | Drill Diameter: 6.2 | Tap OD: 7.3 | ||
| 303-4239 | T2197361 | YG-1 | 8-1.25-75L (T2197361) | Spec: 8x1.25 | Drill Diameter: 8.3 | Tap OD: 9.6 | ||
| 303-4257 | T2197421 | YG-1 | 10-1.5-82L (T2197421) | Spec: 10x1.5 | Drill Diameter: 10.5 | Tap OD: 11.95 | ||
| 303-4266 | T2197501 | YG-1 | 12-1.75-90L (T2197501) | Spec: 12x1.75 | Drill Diameter: 12.4 | Tap O.D.: 14.27 | ||
| 303-4275 | T2197541 | YG-1 | 14-2.0-95L (T2197541) | Spec: 14x2.0 | Drill Diameter: 14.4 | Tap OD: 16.6 | ||
| 303-4284 | T2197601 | YG-1 | 16-2.0-95L (T2197601) | Spec: 16x2.0 | Drill Diameter: 16.5 | Tap Outer Diameter: 18.6 | ||
| 303-4293 | T2197651 | YG-1 | 18-2.5-115L (T2197651) | Spec: 18x2.5 | Drill Diameter: 18.5 | Tap O.D.: 21.25 | ||
| 303-4309 | T2197701 | YG-1 | 20-2.5-120L (T2197701) | Spec: 20x2.5 | Drill Diameter: 21.0 | Tap OD: 23.25 |
