![[YG-1] — TRD41423 Tap Spiral Tap (Prime-Difficult to Machine)](https://img.prosourcemro.com/2026/05/3258316-1-1.jpg)
Taps
YG-1

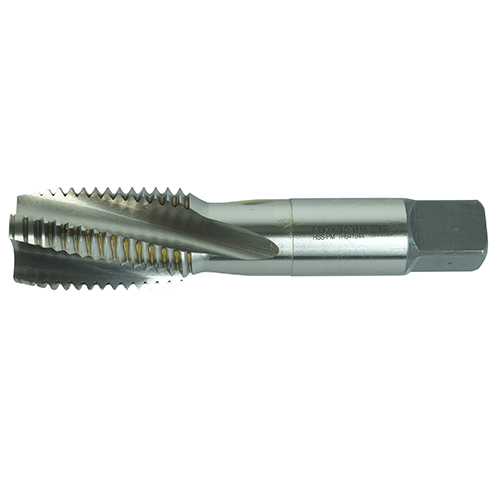

[YG-1] — TRD41423 Tap Spiral Tap (Prime-Difficult to Machine)
Family ID: 304-6599
Spiral Tap (Prime-Difficult to Machine) from YG-1, sourced from Korea.
13 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 304-6599 | TRD41423 | YG-1 | 10-1.5 (TRD41423) | Spec: 10-1.5 | Flute Length: 24 | Overall Length: 75 | Shank Diameter: 7 | Grade: YH3 | ||
| 305-6471 | TRD41544 | YG-1 | 14-2.0 (TRD41544) | Spec: 14-2.0 | Flute Length: 30 | Overall Length: 88 | Shank Diameter: 10.5 | Grade: YH4 | ||
| 306-6991 | TRD41243 | YG-1 | 4-0.7 (TRD41243) | Spec: 4-0.7 | Flute Length: 13 | Overall Length: 52 | Shank Dia: 5 | Grade: YH3 | ||
| 306-7015 | TRD41313 | YG-1 | 6-1.0 (TRD41313) | Spec: 6-1.0 | Flute Length: 19 | Overall Length: 62 | Shank Diameter: 6 | Grade: YH3 | ||
| 306-7024 | TRD41363 | YG-1 | 8-1.25 (TRD41363) | Spec: 8-1.25 | Flute Length: 22 | Overall Length: 70 | Shank d: 6.2 | Class: YH3 | ||
| 306-8838 | TRD41604 | YG-1 | 16-2.0 (TRD41604) | Spec: 16-2.0 | Flute Length: 32 | Overall Length: 95 | Shank Diameter: 12.5 | Grade: YH4 | ||
| 306-9466 | TRD41503 | YG-1 | 12-1.75 (TRD41503) | Spec: 12-1.75 | Flute Length: 29 | Overall Length: 82 | Shank d: 8.5 | Grade: YH3 | ||
| 306-9475 | TRD41704 | YG-1 | 20-2.5 (TRD41704) | Spec: 20-2.5 | Flute Length: 37 | Overall Length: 105 | Shank d: 15 | Grade: YH4 | ||
| 307-2415 | TRD41784 | YG-1 | 24-3.0 (TRD41784) | Spec: 24-3.0 | Flute Length: 45 | Overall Length: 120 | Shank Diameter: 19 | Grade: YH4 | ||
| 308-1167 | TRD41203 | YG-1 | 3-0.5 (TRD41203) | Spec: 3-0.5 | Flute Length: 11.0 | Overall Length: 46 | Shank Diameter: 4.0 | Grade: YH3 | ||
| 308-3527 | TRD41B35 | YG-1 | 36-4.0 (TRD41B35) | Spec: 36-4.0 | Flute Length: 57 | Overall Length: 155 | Shank d: 28 | Grade: YH5 | ||
| 308-4456 | TRD41944 | YG-1 | 30-3.5 (TRD41944) | Spec: 30-3.5 | Flute Length: 48 | Overall Length: 135 | Shank Diameter: 23 | Grade: YH4 | ||
| 323-8978 | TRD41283 | YG-1 | 5-0.8 (TRD41283) | Spec: 5-0.8 | Flute Length: 16 | Overall Length: 60 | Shank Diameter: 5.5 | Grade: YH3 |
