![[YG-1] — T2399207K Tap Coil Hand Tap](https://img.prosourcemro.com/2026/05/1201877-1.jpg)
Taps
YG-1

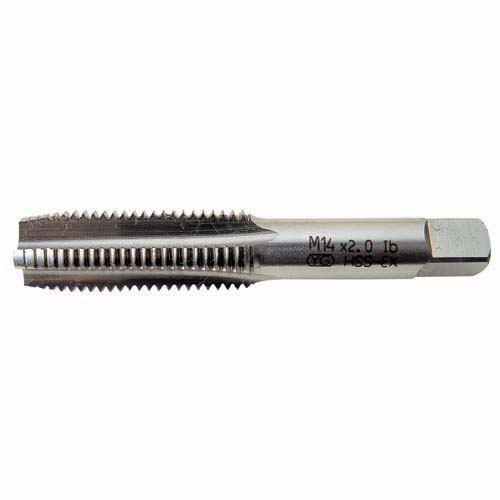

[YG-1] — T2399207K Tap Coil Hand Tap
Family ID: 303-3984
Coil Hand Tap from YG-1, sourced from Korea.
16 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 303-3984 | T2399207K | YG-1 | 3-0.5-48L (T2399207K) | Spec: 3x0.5 | Drill Diameter: 3.1 | Tap Outer Diameter: 3.65 | ||
| 303-3993 | T2399247 | YG-1 | 4-0.7-60L (T2399247) | Spec: 4x0.7 | Drill Diameter: 4.2 | Tap Outer Diameter: 4.9 | ||
| 303-4008 | T2399287K | YG-1 | 5-0.8-62L (T2399287K) | Spec: 5x0.8 | Drill Diameter: 5.2 | Tap OD: 6.04 | ||
| 303-4017 | T2399317 | YG-1 | 6-1.0-63.5L (T2399317) | Spec: 6x1.0 | Drill Diameter: 6.2 | Tap Outside Diameter: 7.3 | ||
| 303-4026 | T2399367K | YG-1 | 8-1.25-75L (T2399367K) | Spec: 8x1.25 | Drill Diameter: 8.3 | Tap Outside Diameter: 9.6 | ||
| 303-4035 | T2399437 | YG-1 | 10-1.25-82L (T2399437) | Spec: 10x10.25 | Drill Diameter: 10.3 | Tap Outer Diameter: 11.6 | ||
| 303-4044 | T2399427 | YG-1 | 10-1.5-82L (T2399427) | Spec: 10x1.5 | Drill Diameter: 10.5 | Tap Outside Diameter: 11.95 | ||
| 303-4053 | T2399527 | YG-1 | 12-1.25-88L (T2399527) | Spec: 12x1.25 | Drill Diameter: 12.3 | Tap Outer Diameter: 13.6 | ||
| 303-4062 | T2399517 | YG-1 | 12-1.5-88L (T2399517) | ||
| 303-4071 | T2399507 | YG-1 | 12-1.75-90L (T2399507) | Spec: 12x1.75 | Drill Diameter: 12.4 | Tap Outer Diameter: 14.27 | ||
| 303-4080 | T2399557 | YG-1 | 14-1.5-95L (T2399557) | Spec: 14x1.5 | Drill Diameter: 14.4 | Tap Outer Diameter: 16.6 | ||
| 303-4099 | T2399547 | YG-1 | 14-2.0-95L (T2399547) | Spec: 14x2.0 | Drill Diameter: 14.4 | Tap O.D.: 16.6 | ||
| 303-4105 | T2399617 | YG-1 | 16-1.5-95L (T2399617) | Spec: 16x1.5 | Drill Diameter: 16.5 | Tap OD: 18.0 | ||
| 303-4114 | T2399607 | YG-1 | 16-2.0-95L (T2399607) | Spec: 16x2.0 | Drill Diameter: 16.5 | Tap Outer Diameter: 18.6 | ||
| 303-4132 | T2399657 | YG-1 | 18-2.5-115L (T2399657) | Spec: 18x2.5 | Drill Diameter: 18.5 | Tap Outer Diameter: 21.25 | ||
| 303-4150 | T2399707 | YG-1 | 20-2.5-120L (T2399707) | Spec: 20x2.5 | Drill Diameter: 21.0 | Tap OD: 23.25 |
