[YUKEN] - CJT70PS/140PS Position-Sensing Hydraulic Cylinder (made-to-order / RFQ)
Cylinders Yuken

[YUKEN] - CJT70PS/140PS Position-Sensing Hydraulic Cylinder (made-to-order / RFQ)

Family ID: YK-CJTPS

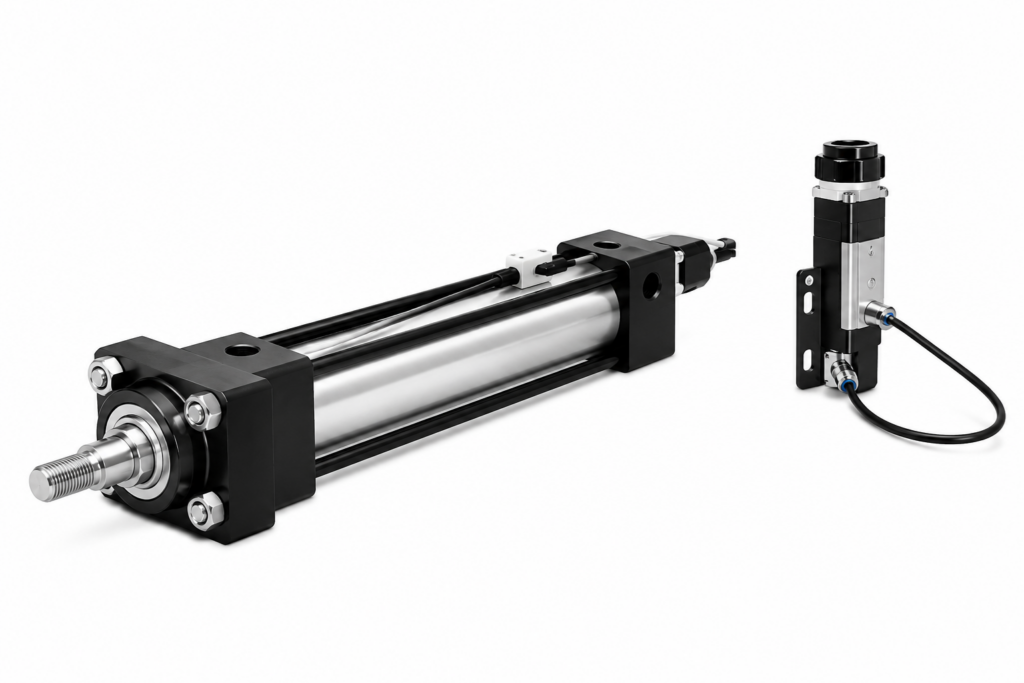

YUKEN CJT70PS/140PS Series position-sensing hydraulic cylinder. Performs absolute high-precision position detection via a magnetostrictive sensor applying the Wiedemann effect. Output is selectable as analog or digital, supporting various machine outputs. Compatible with the standard CJT series for easy machine replacement (support types SD/LA/LB excluded from interchangeability). The GYcAT type has a built-in amplifier and gives high-precision analog output with only a DC24V supply. Conforms to former JIS B8354. Detailed specifications per published model-specific catalog - consult Yuken.

15 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
CJT-PS-B-50 CJT70PS/140PS position-sensing hydraulic cylinder, B-rod, 50mm bore, made-to-order (RFQ) YUKEN Series: CJT70PS (7 MPa) / CJT140PS (14 MPa) position-sensing type | Rod: B-series | Bore: 50 mm | Operating Pressure: 7 MPa (70PS) or 14 MPa (140PS) - select series | Min Stroke: 15 mm | Max Stroke: 1200-2000 mm depending on bore/rod (per model-specific catalog) | Resolution: 1 um | Linearity: 0.01 % | Repeatability: 0.001 % | Output: Analog or digital output (selectable); GYcAT type has built-in amplifier in the sensor head (DC24V supply gives high-precision analog output) | Position Sensor: Magnetostrictive displacement sensor (Wiedemann effect), absolute high-precision position detection | Support (selectable): SD, LA, LB (7MPa only), FA (7MPa only), FY, FC, TA, TC (SD/LA/LB not interchangeable with standard CJT series) | Standard: former JIS B8354 | Ordering: Made-to-order (separate model-specific catalog) - consult Yuken | Full Code: CJT-[70/140]PS-[size]N-BN[port]-[option]-10
CJT-PS-B-63 CJT70PS/140PS position-sensing hydraulic cylinder, B-rod, 63mm bore, made-to-order (RFQ) YUKEN Series: CJT70PS (7 MPa) / CJT140PS (14 MPa) position-sensing type | Rod: B-series | Bore: 63 mm | Operating Pressure: 7 MPa (70PS) or 14 MPa (140PS) - select series | Min Stroke: 15 mm | Max Stroke: 1200-2000 mm depending on bore/rod (per model-specific catalog) | Resolution: 1 um | Linearity: 0.01 % | Repeatability: 0.001 % | Output: Analog or digital output (selectable); GYcAT type has built-in amplifier in the sensor head (DC24V supply gives high-precision analog output) | Position Sensor: Magnetostrictive displacement sensor (Wiedemann effect), absolute high-precision position detection | Support (selectable): SD, LA, LB (7MPa only), FA (7MPa only), FY, FC, TA, TC (SD/LA/LB not interchangeable with standard CJT series) | Standard: former JIS B8354 | Ordering: Made-to-order (separate model-specific catalog) - consult Yuken | Full Code: CJT-[70/140]PS-[size]N-BN[port]-[option]-10
CJT-PS-B-80 CJT70PS/140PS position-sensing hydraulic cylinder, B-rod, 80mm bore, made-to-order (RFQ) YUKEN Series: CJT70PS (7 MPa) / CJT140PS (14 MPa) position-sensing type | Rod: B-series | Bore: 80 mm | Operating Pressure: 7 MPa (70PS) or 14 MPa (140PS) - select series | Min Stroke: 15 mm | Max Stroke: 1200-2000 mm depending on bore/rod (per model-specific catalog) | Resolution: 1 um | Linearity: 0.01 % | Repeatability: 0.001 % | Output: Analog or digital output (selectable); GYcAT type has built-in amplifier in the sensor head (DC24V supply gives high-precision analog output) | Position Sensor: Magnetostrictive displacement sensor (Wiedemann effect), absolute high-precision position detection | Support (selectable): SD, LA, LB (7MPa only), FA (7MPa only), FY, FC, TA, TC (SD/LA/LB not interchangeable with standard CJT series) | Standard: former JIS B8354 | Ordering: Made-to-order (separate model-specific catalog) - consult Yuken | Full Code: CJT-[70/140]PS-[size]N-BN[port]-[option]-10
CJT-PS-B-100 CJT70PS/140PS position-sensing hydraulic cylinder, B-rod, 100mm bore, made-to-order (RFQ) YUKEN Series: CJT70PS (7 MPa) / CJT140PS (14 MPa) position-sensing type | Rod: B-series | Bore: 100 mm | Operating Pressure: 7 MPa (70PS) or 14 MPa (140PS) - select series | Min Stroke: 15 mm | Max Stroke: 1200-2000 mm depending on bore/rod (per model-specific catalog) | Resolution: 1 um | Linearity: 0.01 % | Repeatability: 0.001 % | Output: Analog or digital output (selectable); GYcAT type has built-in amplifier in the sensor head (DC24V supply gives high-precision analog output) | Position Sensor: Magnetostrictive displacement sensor (Wiedemann effect), absolute high-precision position detection | Support (selectable): SD, LA, LB (7MPa only), FA (7MPa only), FY, FC, TA, TC (SD/LA/LB not interchangeable with standard CJT series) | Standard: former JIS B8354 | Ordering: Made-to-order (separate model-specific catalog) - consult Yuken | Full Code: CJT-[70/140]PS-[size]N-BN[port]-[option]-10
CJT-PS-B-125 CJT70PS/140PS position-sensing hydraulic cylinder, B-rod, 125mm bore, made-to-order (RFQ) YUKEN Series: CJT70PS (7 MPa) / CJT140PS (14 MPa) position-sensing type | Rod: B-series | Bore: 125 mm | Operating Pressure: 7 MPa (70PS) or 14 MPa (140PS) - select series | Min Stroke: 15 mm | Max Stroke: 1200-2000 mm depending on bore/rod (per model-specific catalog) | Resolution: 1 um | Linearity: 0.01 % | Repeatability: 0.001 % | Output: Analog or digital output (selectable); GYcAT type has built-in amplifier in the sensor head (DC24V supply gives high-precision analog output) | Position Sensor: Magnetostrictive displacement sensor (Wiedemann effect), absolute high-precision position detection | Support (selectable): SD, LA, LB (7MPa only), FA (7MPa only), FY, FC, TA, TC (SD/LA/LB not interchangeable with standard CJT series) | Standard: former JIS B8354 | Ordering: Made-to-order (separate model-specific catalog) - consult Yuken | Full Code: CJT-[70/140]PS-[size]N-BN[port]-[option]-10
CJT-PS-B-140 CJT70PS/140PS position-sensing hydraulic cylinder, B-rod, 140mm bore, made-to-order (RFQ) YUKEN Series: CJT70PS (7 MPa) / CJT140PS (14 MPa) position-sensing type | Rod: B-series | Bore: 140 mm | Operating Pressure: 7 MPa (70PS) or 14 MPa (140PS) - select series | Min Stroke: 15 mm | Max Stroke: 1200-2000 mm depending on bore/rod (per model-specific catalog) | Resolution: 1 um | Linearity: 0.01 % | Repeatability: 0.001 % | Output: Analog or digital output (selectable); GYcAT type has built-in amplifier in the sensor head (DC24V supply gives high-precision analog output) | Position Sensor: Magnetostrictive displacement sensor (Wiedemann effect), absolute high-precision position detection | Support (selectable): SD, LA, LB (7MPa only), FA (7MPa only), FY, FC, TA, TC (SD/LA/LB not interchangeable with standard CJT series) | Standard: former JIS B8354 | Ordering: Made-to-order (separate model-specific catalog) - consult Yuken | Full Code: CJT-[70/140]PS-[size]N-BN[port]-[option]-10
CJT-PS-B-150 CJT70PS/140PS position-sensing hydraulic cylinder, B-rod, 150mm bore, made-to-order (RFQ) YUKEN Series: CJT70PS (7 MPa) / CJT140PS (14 MPa) position-sensing type | Rod: B-series | Bore: 150 mm | Operating Pressure: 7 MPa (70PS) or 14 MPa (140PS) - select series | Min Stroke: 15 mm | Max Stroke: 1200-2000 mm depending on bore/rod (per model-specific catalog) | Resolution: 1 um | Linearity: 0.01 % | Repeatability: 0.001 % | Output: Analog or digital output (selectable); GYcAT type has built-in amplifier in the sensor head (DC24V supply gives high-precision analog output) | Position Sensor: Magnetostrictive displacement sensor (Wiedemann effect), absolute high-precision position detection | Support (selectable): SD, LA, LB (7MPa only), FA (7MPa only), FY, FC, TA, TC (SD/LA/LB not interchangeable with standard CJT series) | Standard: former JIS B8354 | Ordering: Made-to-order (separate model-specific catalog) - consult Yuken | Full Code: CJT-[70/140]PS-[size]N-BN[port]-[option]-10
CJT-PS-B-160 CJT70PS/140PS position-sensing hydraulic cylinder, B-rod, 160mm bore, made-to-order (RFQ) YUKEN Series: CJT70PS (7 MPa) / CJT140PS (14 MPa) position-sensing type | Rod: B-series | Bore: 160 mm | Operating Pressure: 7 MPa (70PS) or 14 MPa (140PS) - select series | Min Stroke: 15 mm | Max Stroke: 1200-2000 mm depending on bore/rod (per model-specific catalog) | Resolution: 1 um | Linearity: 0.01 % | Repeatability: 0.001 % | Output: Analog or digital output (selectable); GYcAT type has built-in amplifier in the sensor head (DC24V supply gives high-precision analog output) | Position Sensor: Magnetostrictive displacement sensor (Wiedemann effect), absolute high-precision position detection | Support (selectable): SD, LA, LB (7MPa only), FA (7MPa only), FY, FC, TA, TC (SD/LA/LB not interchangeable with standard CJT series) | Standard: former JIS B8354 | Ordering: Made-to-order (separate model-specific catalog) - consult Yuken | Full Code: CJT-[70/140]PS-[size]N-BN[port]-[option]-10
CJT-PS-B-180 CJT70PS/140PS position-sensing hydraulic cylinder, B-rod, 180mm bore, made-to-order (RFQ) YUKEN Series: CJT70PS (7 MPa) / CJT140PS (14 MPa) position-sensing type | Rod: B-series | Bore: 180 mm | Operating Pressure: 7 MPa (70PS) or 14 MPa (140PS) - select series | Min Stroke: 15 mm | Max Stroke: 1200-2000 mm depending on bore/rod (per model-specific catalog) | Resolution: 1 um | Linearity: 0.01 % | Repeatability: 0.001 % | Output: Analog or digital output (selectable); GYcAT type has built-in amplifier in the sensor head (DC24V supply gives high-precision analog output) | Position Sensor: Magnetostrictive displacement sensor (Wiedemann effect), absolute high-precision position detection | Support (selectable): SD, LA, LB (7MPa only), FA (7MPa only), FY, FC, TA, TC (SD/LA/LB not interchangeable with standard CJT series) | Standard: former JIS B8354 | Ordering: Made-to-order (separate model-specific catalog) - consult Yuken | Full Code: CJT-[70/140]PS-[size]N-BN[port]-[option]-10
CJT-PS-C-100 CJT70PS/140PS position-sensing hydraulic cylinder, C-rod, 100mm bore, made-to-order (RFQ) YUKEN Series: CJT70PS (7 MPa) / CJT140PS (14 MPa) position-sensing type | Rod: C-series | Bore: 100 mm | Operating Pressure: 7 MPa (70PS) or 14 MPa (140PS) - select series | Min Stroke: 15 mm | Max Stroke: 1200-2000 mm depending on bore/rod (per model-specific catalog) | Resolution: 1 um | Linearity: 0.01 % | Repeatability: 0.001 % | Output: Analog or digital output (selectable); GYcAT type has built-in amplifier in the sensor head (DC24V supply gives high-precision analog output) | Position Sensor: Magnetostrictive displacement sensor (Wiedemann effect), absolute high-precision position detection | Support (selectable): SD, LA, LB (7MPa only), FA (7MPa only), FY, FC, TA, TC (SD/LA/LB not interchangeable with standard CJT series) | Standard: former JIS B8354 | Ordering: Made-to-order (separate model-specific catalog) - consult Yuken | Full Code: CJT-[70/140]PS-[size]N-CN[port]-[option]-10
CJT-PS-C-125 CJT70PS/140PS position-sensing hydraulic cylinder, C-rod, 125mm bore, made-to-order (RFQ) YUKEN Series: CJT70PS (7 MPa) / CJT140PS (14 MPa) position-sensing type | Rod: C-series | Bore: 125 mm | Operating Pressure: 7 MPa (70PS) or 14 MPa (140PS) - select series | Min Stroke: 15 mm | Max Stroke: 1200-2000 mm depending on bore/rod (per model-specific catalog) | Resolution: 1 um | Linearity: 0.01 % | Repeatability: 0.001 % | Output: Analog or digital output (selectable); GYcAT type has built-in amplifier in the sensor head (DC24V supply gives high-precision analog output) | Position Sensor: Magnetostrictive displacement sensor (Wiedemann effect), absolute high-precision position detection | Support (selectable): SD, LA, LB (7MPa only), FA (7MPa only), FY, FC, TA, TC (SD/LA/LB not interchangeable with standard CJT series) | Standard: former JIS B8354 | Ordering: Made-to-order (separate model-specific catalog) - consult Yuken | Full Code: CJT-[70/140]PS-[size]N-CN[port]-[option]-10
CJT-PS-C-140 CJT70PS/140PS position-sensing hydraulic cylinder, C-rod, 140mm bore, made-to-order (RFQ) YUKEN Series: CJT70PS (7 MPa) / CJT140PS (14 MPa) position-sensing type | Rod: C-series | Bore: 140 mm | Operating Pressure: 7 MPa (70PS) or 14 MPa (140PS) - select series | Min Stroke: 15 mm | Max Stroke: 1200-2000 mm depending on bore/rod (per model-specific catalog) | Resolution: 1 um | Linearity: 0.01 % | Repeatability: 0.001 % | Output: Analog or digital output (selectable); GYcAT type has built-in amplifier in the sensor head (DC24V supply gives high-precision analog output) | Position Sensor: Magnetostrictive displacement sensor (Wiedemann effect), absolute high-precision position detection | Support (selectable): SD, LA, LB (7MPa only), FA (7MPa only), FY, FC, TA, TC (SD/LA/LB not interchangeable with standard CJT series) | Standard: former JIS B8354 | Ordering: Made-to-order (separate model-specific catalog) - consult Yuken | Full Code: CJT-[70/140]PS-[size]N-CN[port]-[option]-10
CJT-PS-C-150 CJT70PS/140PS position-sensing hydraulic cylinder, C-rod, 150mm bore, made-to-order (RFQ) YUKEN Series: CJT70PS (7 MPa) / CJT140PS (14 MPa) position-sensing type | Rod: C-series | Bore: 150 mm | Operating Pressure: 7 MPa (70PS) or 14 MPa (140PS) - select series | Min Stroke: 15 mm | Max Stroke: 1200-2000 mm depending on bore/rod (per model-specific catalog) | Resolution: 1 um | Linearity: 0.01 % | Repeatability: 0.001 % | Output: Analog or digital output (selectable); GYcAT type has built-in amplifier in the sensor head (DC24V supply gives high-precision analog output) | Position Sensor: Magnetostrictive displacement sensor (Wiedemann effect), absolute high-precision position detection | Support (selectable): SD, LA, LB (7MPa only), FA (7MPa only), FY, FC, TA, TC (SD/LA/LB not interchangeable with standard CJT series) | Standard: former JIS B8354 | Ordering: Made-to-order (separate model-specific catalog) - consult Yuken | Full Code: CJT-[70/140]PS-[size]N-CN[port]-[option]-10
CJT-PS-C-160 CJT70PS/140PS position-sensing hydraulic cylinder, C-rod, 160mm bore, made-to-order (RFQ) YUKEN Series: CJT70PS (7 MPa) / CJT140PS (14 MPa) position-sensing type | Rod: C-series | Bore: 160 mm | Operating Pressure: 7 MPa (70PS) or 14 MPa (140PS) - select series | Min Stroke: 15 mm | Max Stroke: 1200-2000 mm depending on bore/rod (per model-specific catalog) | Resolution: 1 um | Linearity: 0.01 % | Repeatability: 0.001 % | Output: Analog or digital output (selectable); GYcAT type has built-in amplifier in the sensor head (DC24V supply gives high-precision analog output) | Position Sensor: Magnetostrictive displacement sensor (Wiedemann effect), absolute high-precision position detection | Support (selectable): SD, LA, LB (7MPa only), FA (7MPa only), FY, FC, TA, TC (SD/LA/LB not interchangeable with standard CJT series) | Standard: former JIS B8354 | Ordering: Made-to-order (separate model-specific catalog) - consult Yuken | Full Code: CJT-[70/140]PS-[size]N-CN[port]-[option]-10
CJT-PS-C-180 CJT70PS/140PS position-sensing hydraulic cylinder, C-rod, 180mm bore, made-to-order (RFQ) YUKEN Series: CJT70PS (7 MPa) / CJT140PS (14 MPa) position-sensing type | Rod: C-series | Bore: 180 mm | Operating Pressure: 7 MPa (70PS) or 14 MPa (140PS) - select series | Min Stroke: 15 mm | Max Stroke: 1200-2000 mm depending on bore/rod (per model-specific catalog) | Resolution: 1 um | Linearity: 0.01 % | Repeatability: 0.001 % | Output: Analog or digital output (selectable); GYcAT type has built-in amplifier in the sensor head (DC24V supply gives high-precision analog output) | Position Sensor: Magnetostrictive displacement sensor (Wiedemann effect), absolute high-precision position detection | Support (selectable): SD, LA, LB (7MPa only), FA (7MPa only), FY, FC, TA, TC (SD/LA/LB not interchangeable with standard CJT series) | Standard: former JIS B8354 | Ordering: Made-to-order (separate model-specific catalog) - consult Yuken | Full Code: CJT-[70/140]PS-[size]N-CN[port]-[option]-10
