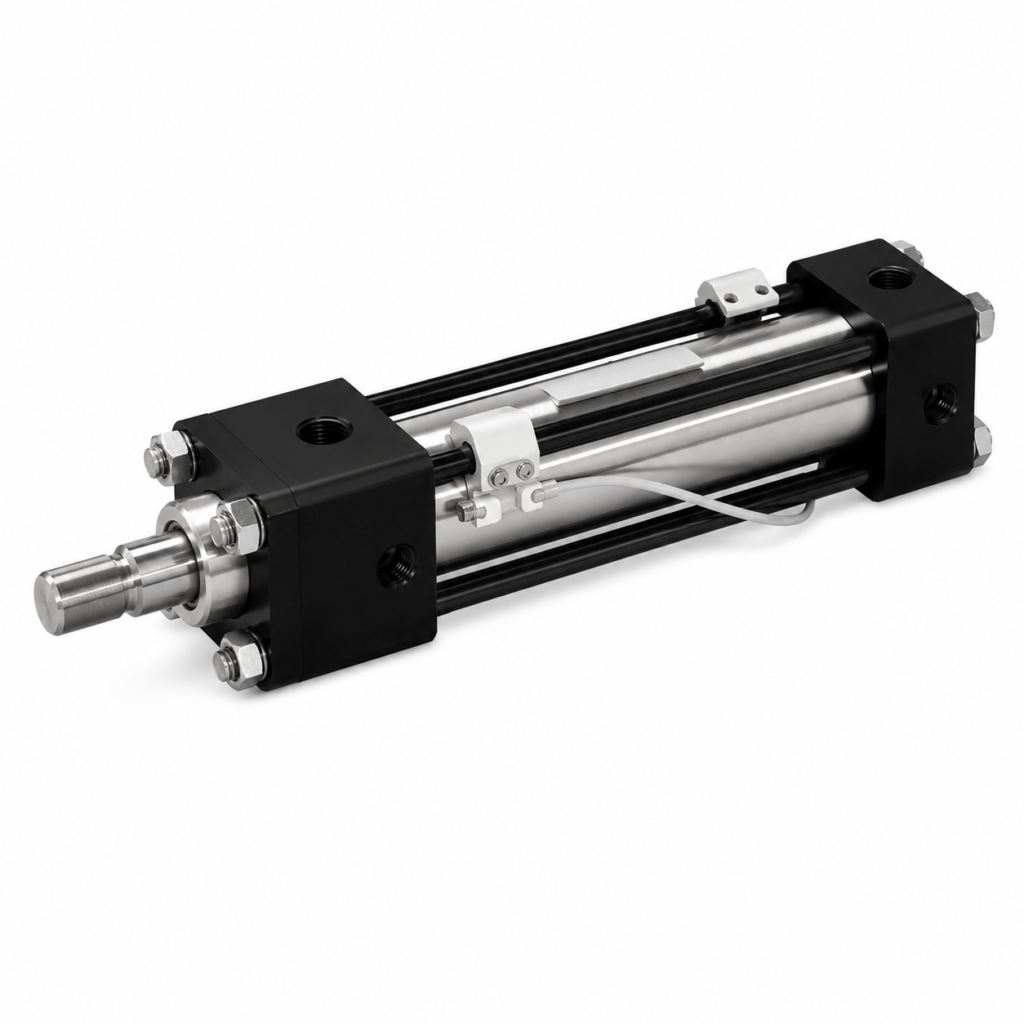

[YUKEN] - CJT140L 14MPa Hydraulic Cylinder with Proximity Switch
Cylinders Yuken

[YUKEN] - CJT140L 14MPa Hydraulic Cylinder with Proximity Switch

Family ID: YK-CJT140L

YUKEN CJT-series hydraulic cylinder with CE-compliant slide-type proximity switch. The detection position is set freely and easily by adjusting the position of the slide-type proximity switch mounted on the cylinder body, eliminating the separate position-detection device on the machine and making the unit more compact. The proximity switch is available in lead-wire type (1.5 m standard / 5 m) and connector type. Basic specifications are the same as the CJT140 (14 MPa standard) hydraulic cylinder. Conforms to former JIS B8354. Stroke is made-to-order - observe the minimum switch-mounting stroke.

20 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
CJT140L-32-B-20 CJT140L 14MPa Hydraulic Cylinder w/ proximity switch, 32mm bore, B-rod d18mm, design 20 YUKEN Series: CJT140L (CE-compliant proximity-switch type) | Base Series: CJT140 (14 MPa standard) | Nominal Pressure: 14 MPa | Max Allowable Pressure: Cap side 18 MPa / Rod side (B-rod) 18 MPa | Bore: 32 mm | Rod: B-series d18 mm | Design No.: 20 | Max Stroke: 1000 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 50 mm / 2 switches 110 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FC, FD, FE, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT140L-[support]-32B-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT140L-32-C-20 CJT140L 14MPa Hydraulic Cylinder w/ proximity switch, 32mm bore, C-rod d14mm, design 20 YUKEN Series: CJT140L (CE-compliant proximity-switch type) | Base Series: CJT140 (14 MPa standard) | Nominal Pressure: 14 MPa | Max Allowable Pressure: Cap side 18 MPa / Rod side (C-rod) 14 MPa | Bore: 32 mm | Rod: C-series d14 mm | Design No.: 20 | Max Stroke: 1000 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 50 mm / 2 switches 110 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FC, FD, FE, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT140L-[support]-32C-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT140L-40-A-20 CJT140L 14MPa Hydraulic Cylinder w/ proximity switch, 40mm bore, A-rod d28mm, design 20 YUKEN Series: CJT140L (CE-compliant proximity-switch type) | Base Series: CJT140 (14 MPa standard) | Nominal Pressure: 14 MPa | Max Allowable Pressure: Cap side 18 MPa / Rod side (A-rod) 18 MPa | Bore: 40 mm | Rod: A-series d28 mm | Design No.: 20 | Max Stroke: 1200 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 50 mm / 2 switches 115 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FC, FD, FE, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT140L-[support]-40A-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT140L-40-B-20 CJT140L 14MPa Hydraulic Cylinder w/ proximity switch, 40mm bore, B-rod d22mm, design 20 YUKEN Series: CJT140L (CE-compliant proximity-switch type) | Base Series: CJT140 (14 MPa standard) | Nominal Pressure: 14 MPa | Max Allowable Pressure: Cap side 18 MPa / Rod side (B-rod) 18 MPa | Bore: 40 mm | Rod: B-series d22 mm | Design No.: 20 | Max Stroke: 1200 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 50 mm / 2 switches 115 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FC, FD, FE, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT140L-[support]-40B-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT140L-40-C-20 CJT140L 14MPa Hydraulic Cylinder w/ proximity switch, 40mm bore, C-rod d18mm, design 20 YUKEN Series: CJT140L (CE-compliant proximity-switch type) | Base Series: CJT140 (14 MPa standard) | Nominal Pressure: 14 MPa | Max Allowable Pressure: Cap side 18 MPa / Rod side (C-rod) 14 MPa | Bore: 40 mm | Rod: C-series d18 mm | Design No.: 20 | Max Stroke: 1200 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 50 mm / 2 switches 115 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FC, FD, FE, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT140L-[support]-40C-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT140L-50-A-20 CJT140L 14MPa Hydraulic Cylinder w/ proximity switch, 50mm bore, A-rod d36mm, design 20 YUKEN Series: CJT140L (CE-compliant proximity-switch type) | Base Series: CJT140 (14 MPa standard) | Nominal Pressure: 14 MPa | Max Allowable Pressure: Cap side 18 MPa / Rod side (A-rod) 18 MPa | Bore: 50 mm | Rod: A-series d36 mm | Design No.: 20 | Max Stroke: 1200 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 50 mm / 2 switches 115 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FC, FD, FE, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT140L-[support]-50A-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT140L-50-B-20 CJT140L 14MPa Hydraulic Cylinder w/ proximity switch, 50mm bore, B-rod d28mm, design 20 YUKEN Series: CJT140L (CE-compliant proximity-switch type) | Base Series: CJT140 (14 MPa standard) | Nominal Pressure: 14 MPa | Max Allowable Pressure: Cap side 18 MPa / Rod side (B-rod) 18 MPa | Bore: 50 mm | Rod: B-series d28 mm | Design No.: 20 | Max Stroke: 1200 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 50 mm / 2 switches 115 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FC, FD, FE, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT140L-[support]-50B-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT140L-50-C-20 CJT140L 14MPa Hydraulic Cylinder w/ proximity switch, 50mm bore, C-rod d22mm, design 20 YUKEN Series: CJT140L (CE-compliant proximity-switch type) | Base Series: CJT140 (14 MPa standard) | Nominal Pressure: 14 MPa | Max Allowable Pressure: Cap side 18 MPa / Rod side (C-rod) 14 MPa | Bore: 50 mm | Rod: C-series d22 mm | Design No.: 20 | Max Stroke: 1200 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 50 mm / 2 switches 115 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FC, FD, FE, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT140L-[support]-50C-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT140L-63-A-20 CJT140L 14MPa Hydraulic Cylinder w/ proximity switch, 63mm bore, A-rod d45mm, design 20 YUKEN Series: CJT140L (CE-compliant proximity-switch type) | Base Series: CJT140 (14 MPa standard) | Nominal Pressure: 14 MPa | Max Allowable Pressure: Cap side 18 MPa / Rod side (A-rod) 18 MPa | Bore: 63 mm | Rod: A-series d45 mm | Design No.: 20 | Max Stroke: 1600 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 60 mm / 2 switches 125 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FC, FD, FE, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT140L-[support]-63A-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT140L-63-B-20 CJT140L 14MPa Hydraulic Cylinder w/ proximity switch, 63mm bore, B-rod d36mm, design 20 YUKEN Series: CJT140L (CE-compliant proximity-switch type) | Base Series: CJT140 (14 MPa standard) | Nominal Pressure: 14 MPa | Max Allowable Pressure: Cap side 18 MPa / Rod side (B-rod) 18 MPa | Bore: 63 mm | Rod: B-series d36 mm | Design No.: 20 | Max Stroke: 1600 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 60 mm / 2 switches 125 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FC, FD, FE, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT140L-[support]-63B-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT140L-63-C-20 CJT140L 14MPa Hydraulic Cylinder w/ proximity switch, 63mm bore, C-rod d28mm, design 20 YUKEN Series: CJT140L (CE-compliant proximity-switch type) | Base Series: CJT140 (14 MPa standard) | Nominal Pressure: 14 MPa | Max Allowable Pressure: Cap side 18 MPa / Rod side (C-rod) 14 MPa | Bore: 63 mm | Rod: C-series d28 mm | Design No.: 20 | Max Stroke: 1600 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 60 mm / 2 switches 125 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FC, FD, FE, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT140L-[support]-63C-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT140L-80-A-20 CJT140L 14MPa Hydraulic Cylinder w/ proximity switch, 80mm bore, A-rod d56mm, design 20 YUKEN Series: CJT140L (CE-compliant proximity-switch type) | Base Series: CJT140 (14 MPa standard) | Nominal Pressure: 14 MPa | Max Allowable Pressure: Cap side 18 MPa / Rod side (A-rod) 18 MPa | Bore: 80 mm | Rod: A-series d56 mm | Design No.: 20 | Max Stroke: 1600 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 60 mm / 2 switches 130 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FC, FD, FE, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT140L-[support]-80A-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT140L-80-B-20 CJT140L 14MPa Hydraulic Cylinder w/ proximity switch, 80mm bore, B-rod d45mm, design 20 YUKEN Series: CJT140L (CE-compliant proximity-switch type) | Base Series: CJT140 (14 MPa standard) | Nominal Pressure: 14 MPa | Max Allowable Pressure: Cap side 18 MPa / Rod side (B-rod) 18 MPa | Bore: 80 mm | Rod: B-series d45 mm | Design No.: 20 | Max Stroke: 1600 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 60 mm / 2 switches 130 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FC, FD, FE, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT140L-[support]-80B-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT140L-80-C-20 CJT140L 14MPa Hydraulic Cylinder w/ proximity switch, 80mm bore, C-rod d36mm, design 20 YUKEN Series: CJT140L (CE-compliant proximity-switch type) | Base Series: CJT140 (14 MPa standard) | Nominal Pressure: 14 MPa | Max Allowable Pressure: Cap side 18 MPa / Rod side (C-rod) 14 MPa | Bore: 80 mm | Rod: C-series d36 mm | Design No.: 20 | Max Stroke: 1600 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 60 mm / 2 switches 130 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FC, FD, FE, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT140L-[support]-80C-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT140L-100-A-20 CJT140L 14MPa Hydraulic Cylinder w/ proximity switch, 100mm bore, A-rod d70mm, design 20 YUKEN Series: CJT140L (CE-compliant proximity-switch type) | Base Series: CJT140 (14 MPa standard) | Nominal Pressure: 14 MPa | Max Allowable Pressure: Cap side 18 MPa / Rod side (A-rod) 18 MPa | Bore: 100 mm | Rod: A-series d70 mm | Design No.: 20 | Max Stroke: 2000 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 65 mm / 2 switches 135 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FC, FD, FE, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT140L-[support]-100A-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT140L-100-B-20 CJT140L 14MPa Hydraulic Cylinder w/ proximity switch, 100mm bore, B-rod d56mm, design 20 YUKEN Series: CJT140L (CE-compliant proximity-switch type) | Base Series: CJT140 (14 MPa standard) | Nominal Pressure: 14 MPa | Max Allowable Pressure: Cap side 18 MPa / Rod side (B-rod) 18 MPa | Bore: 100 mm | Rod: B-series d56 mm | Design No.: 20 | Max Stroke: 2000 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 65 mm / 2 switches 135 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FC, FD, FE, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT140L-[support]-100B-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT140L-100-C-20 CJT140L 14MPa Hydraulic Cylinder w/ proximity switch, 100mm bore, C-rod d45mm, design 20 YUKEN Series: CJT140L (CE-compliant proximity-switch type) | Base Series: CJT140 (14 MPa standard) | Nominal Pressure: 14 MPa | Max Allowable Pressure: Cap side 18 MPa / Rod side (C-rod) 14 MPa | Bore: 100 mm | Rod: C-series d45 mm | Design No.: 20 | Max Stroke: 2000 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 65 mm / 2 switches 135 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FC, FD, FE, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT140L-[support]-100C-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT140L-125-A-20 CJT140L 14MPa Hydraulic Cylinder w/ proximity switch, 125mm bore, A-rod d90mm, design 20 YUKEN Series: CJT140L (CE-compliant proximity-switch type) | Base Series: CJT140 (14 MPa standard) | Nominal Pressure: 14 MPa | Max Allowable Pressure: Cap side 18 MPa / Rod side (A-rod) 18 MPa | Bore: 125 mm | Rod: A-series d90 mm | Design No.: 20 | Max Stroke: 2000 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 70 mm / 2 switches 150 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FC, FD, FE, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT140L-[support]-125A-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT140L-125-B-20 CJT140L 14MPa Hydraulic Cylinder w/ proximity switch, 125mm bore, B-rod d70mm, design 20 YUKEN Series: CJT140L (CE-compliant proximity-switch type) | Base Series: CJT140 (14 MPa standard) | Nominal Pressure: 14 MPa | Max Allowable Pressure: Cap side 18 MPa / Rod side (B-rod) 18 MPa | Bore: 125 mm | Rod: B-series d70 mm | Design No.: 20 | Max Stroke: 2000 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 70 mm / 2 switches 150 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FC, FD, FE, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT140L-[support]-125B-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT140L-125-C-20 CJT140L 14MPa Hydraulic Cylinder w/ proximity switch, 125mm bore, C-rod d56mm, design 20 YUKEN Series: CJT140L (CE-compliant proximity-switch type) | Base Series: CJT140 (14 MPa standard) | Nominal Pressure: 14 MPa | Max Allowable Pressure: Cap side 18 MPa / Rod side (C-rod) 14 MPa | Bore: 125 mm | Rod: C-series d56 mm | Design No.: 20 | Max Stroke: 2000 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 70 mm / 2 switches 150 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FC, FD, FE, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT140L-[support]-125C-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
