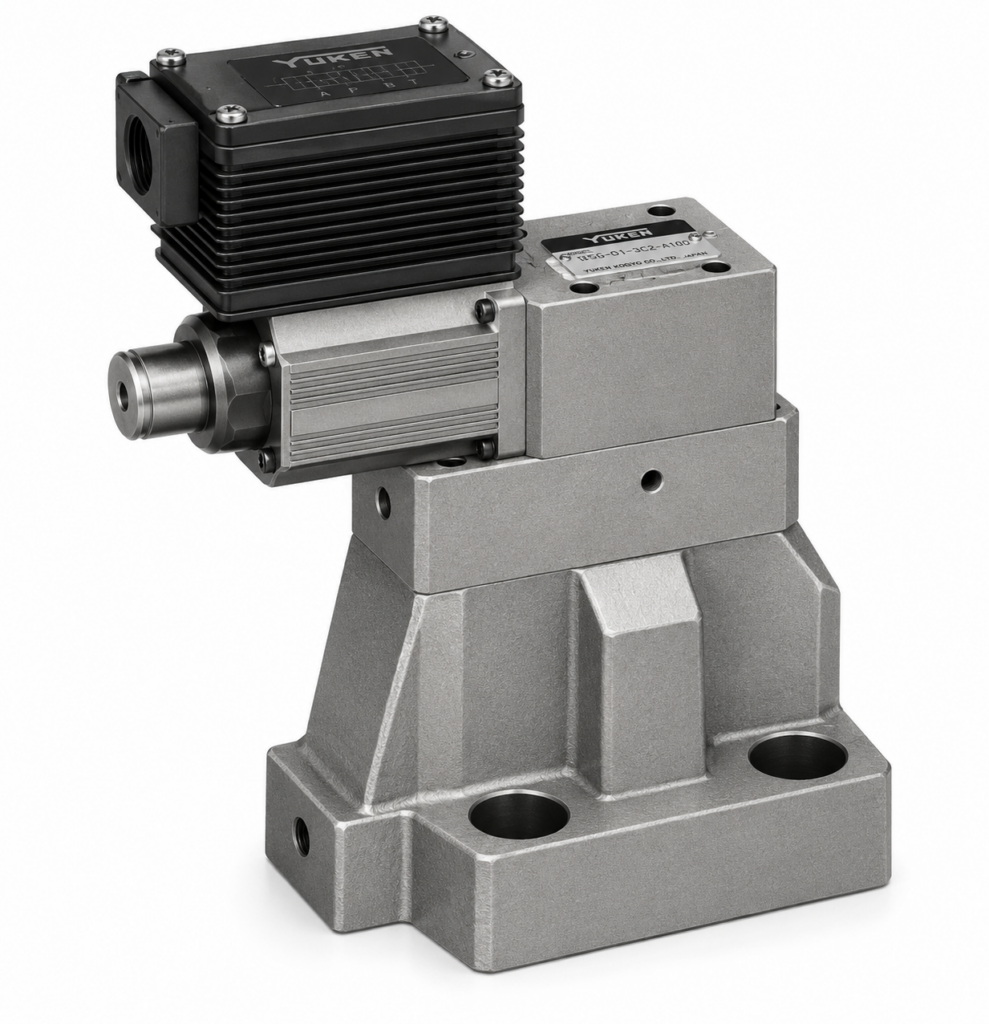

[Yuken] — EHBG-10 Proportional Relief Valve (24.5 MPa, max 400 L/min, size 10)
Family ID: YK-EHBG-10
Proportional Electro-Hydraulic Relief Valves. Integrates the compact high-performance EH-series 1/8 proportional pilot relief valve with a low-noise relief valve; controls system pressure proportionally to input voltage. Sub-plate mounting, valve size 10. Max operating pressure 24.5 MPa, max flow 400 L/min. Pressure adjustment range C: 1.1–15.7 MPa / H: 1.1–24.5 MPa. Coil resistance 10Ω, supply DC24V (28W max). Open-loop, sensor-equipped (S) and closed-loop (L) versions.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| EHBG-10-C-50 | EHBG-10 Relief, C 1.1–15.7 MPa, Open loop, max 400 L/min | Yuken | Type: Proportional Relief Valve | Series: EHBG | Mounting: Sub-plate (G) | Valve Size: 10 | Max Flow: 400 L/min | Pressure Adj. Range: C (1.1–15.7 MPa) | Max Pressure: 15.7 MPa | Control: Open loop | Coil: 10Ω, DC24V | Design No.: 50 | ||
| EHBG-10-C-S-50 | EHBG-10 Relief, C 1.1–15.7 MPa, Open loop + built-in sensor, max 400 L/min | Yuken | Type: Proportional Relief Valve | Series: EHBG | Mounting: Sub-plate (G) | Valve Size: 10 | Max Flow: 400 L/min | Pressure Adj. Range: C (1.1–15.7 MPa) | Max Pressure: 15.7 MPa | Control: Open loop + built-in sensor | Coil: 10Ω, DC24V | Design No.: 50 | ||
| EHBG-10-C-L-50 | EHBG-10 Relief, C 1.1–15.7 MPa, Closed loop, max 400 L/min | Yuken | Type: Proportional Relief Valve | Series: EHBG | Mounting: Sub-plate (G) | Valve Size: 10 | Max Flow: 400 L/min | Pressure Adj. Range: C (1.1–15.7 MPa) | Max Pressure: 15.7 MPa | Control: Closed loop | Coil: 10Ω, DC24V | Design No.: 50 | ||
| EHBG-10-H-50 | EHBG-10 Relief, H 1.1–24.5 MPa, Open loop, max 400 L/min | Yuken | Type: Proportional Relief Valve | Series: EHBG | Mounting: Sub-plate (G) | Valve Size: 10 | Max Flow: 400 L/min | Pressure Adj. Range: H (1.1–24.5 MPa) | Max Pressure: 24.5 MPa | Control: Open loop | Coil: 10Ω, DC24V | Design No.: 50 | ||
| EHBG-10-H-S-50 | EHBG-10 Relief, H 1.1–24.5 MPa, Open loop + built-in sensor, max 400 L/min | Yuken | Type: Proportional Relief Valve | Series: EHBG | Mounting: Sub-plate (G) | Valve Size: 10 | Max Flow: 400 L/min | Pressure Adj. Range: H (1.1–24.5 MPa) | Max Pressure: 24.5 MPa | Control: Open loop + built-in sensor | Coil: 10Ω, DC24V | Design No.: 50 | ||
| EHBG-10-H-L-50 | EHBG-10 Relief, H 1.1–24.5 MPa, Closed loop, max 400 L/min | Yuken | Type: Proportional Relief Valve | Series: EHBG | Mounting: Sub-plate (G) | Valve Size: 10 | Max Flow: 400 L/min | Pressure Adj. Range: H (1.1–24.5 MPa) | Max Pressure: 24.5 MPa | Control: Closed loop | Coil: 10Ω, DC24V | Design No.: 50 |
