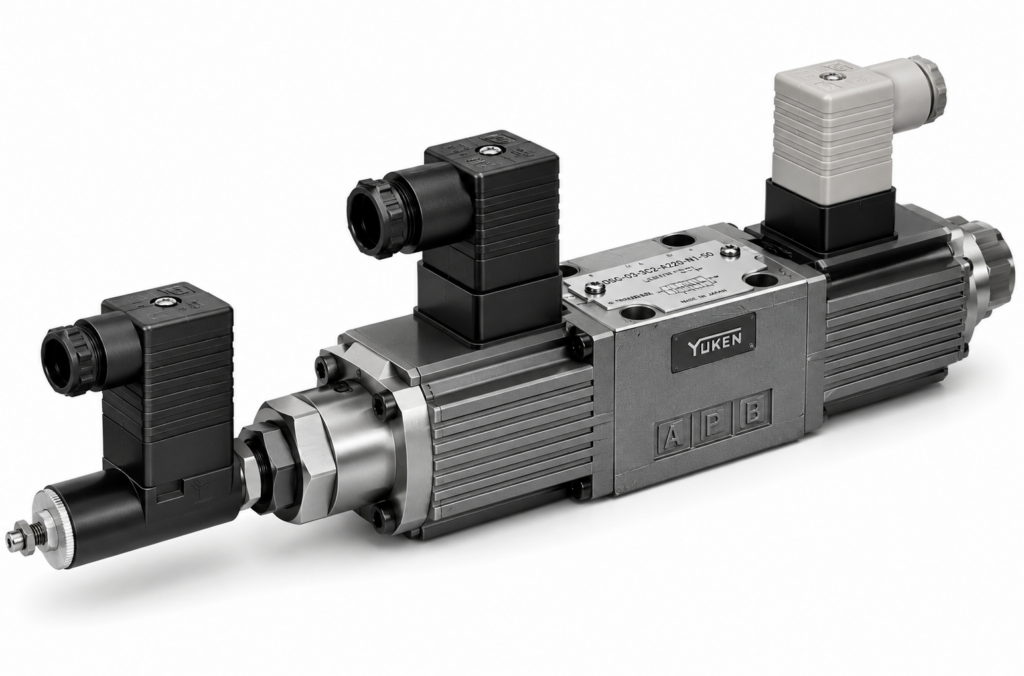

[Yuken] — ELDFG-03 High-Response Direct-Operated Proportional Directional & Flow Control Valve (E series, 31.5 MPa, rated 40/80 L/min, size 03)
Family ID: YK-ELDFG-03
High Response Type Proportional Electro-Hydraulic Directional and Flow Control Valves. A direct-operated, feedback (closed-loop) high-response valve combining a newly developed compact high-power solenoid with a spool-position differential transformer, giving high accuracy and reliability with simple-servo-class response; the zero-lap 3C2P spool is well suited to position and pressure control. Use with a dedicated Yuken external power amplifier. Sub-plate mounting, valve size 03, rated flow 40/80 L/min at 1.5 MPa valve pressure drop. Max operating pressure 31.5 MPa, tank pressure 21 MPa. Spool forms 3C2/3C40/3C2P; meter-in/meter-out (XY). Hysteresis 0.5%. Coil 3Ω, rated current max 3 A (27 W max).
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| ELDFG-03-40-3C2-XY-10 | ELDFG-03 High-Response Dir&Flow (E), 40L/min, 3C2 | Yuken | Type: High-Response Direct-Operated Proportional Directional & Flow Control Valve (E series) | Series: ELDFG | Mounting: Sub-plate | Valve Size: 03 | Rated Flow: 40 L/min (@ΔP=1.5 MPa) | Max Pressure: 31.5 MPa | Tank Pressure: 21 MPa | Spool Form: 3C2 | Control Direction: XY (meter-in/meter-out) | Hysteresis: 0.5% | Coil: 3Ω, rated current max 3 A | Feedback: Spool-position differential transformer (closed loop) | Drive: Use with dedicated external power amplifier | Design No.: 10 | ||
| ELDFG-03-40-3C40-XY-10 | ELDFG-03 High-Response Dir&Flow (E), 40L/min, 3C40 | Yuken | Type: High-Response Direct-Operated Proportional Directional & Flow Control Valve (E series) | Series: ELDFG | Mounting: Sub-plate | Valve Size: 03 | Rated Flow: 40 L/min (@ΔP=1.5 MPa) | Max Pressure: 31.5 MPa | Tank Pressure: 21 MPa | Spool Form: 3C40 | Control Direction: XY (meter-in/meter-out) | Hysteresis: 0.5% | Coil: 3Ω, rated current max 3 A | Feedback: Spool-position differential transformer (closed loop) | Drive: Use with dedicated external power amplifier | Design No.: 10 | ||
| ELDFG-03-40-3C2P-XY-10 | ELDFG-03 High-Response Dir&Flow (E), 40L/min, 3C2P | Yuken | Type: High-Response Direct-Operated Proportional Directional & Flow Control Valve (E series) | Series: ELDFG | Mounting: Sub-plate | Valve Size: 03 | Rated Flow: 40 L/min (@ΔP=1.5 MPa) | Max Pressure: 31.5 MPa | Tank Pressure: 21 MPa | Spool Form: 3C2P (zero-lap) | Control Direction: XY (meter-in/meter-out) | Hysteresis: 0.5% | Coil: 3Ω, rated current max 3 A | Feedback: Spool-position differential transformer (closed loop) | Drive: Use with dedicated external power amplifier | Design No.: 10 | ||
| ELDFG-03-80-3C2-XY-10 | ELDFG-03 High-Response Dir&Flow (E), 80L/min, 3C2 | Yuken | Type: High-Response Direct-Operated Proportional Directional & Flow Control Valve (E series) | Series: ELDFG | Mounting: Sub-plate | Valve Size: 03 | Rated Flow: 80 L/min (@ΔP=1.5 MPa) | Max Pressure: 31.5 MPa | Tank Pressure: 21 MPa | Spool Form: 3C2 | Control Direction: XY (meter-in/meter-out) | Hysteresis: 0.5% | Coil: 3Ω, rated current max 3 A | Feedback: Spool-position differential transformer (closed loop) | Drive: Use with dedicated external power amplifier | Design No.: 10 | ||
| ELDFG-03-80-3C40-XY-10 | ELDFG-03 High-Response Dir&Flow (E), 80L/min, 3C40 | Yuken | Type: High-Response Direct-Operated Proportional Directional & Flow Control Valve (E series) | Series: ELDFG | Mounting: Sub-plate | Valve Size: 03 | Rated Flow: 80 L/min (@ΔP=1.5 MPa) | Max Pressure: 31.5 MPa | Tank Pressure: 21 MPa | Spool Form: 3C40 | Control Direction: XY (meter-in/meter-out) | Hysteresis: 0.5% | Coil: 3Ω, rated current max 3 A | Feedback: Spool-position differential transformer (closed loop) | Drive: Use with dedicated external power amplifier | Design No.: 10 | ||
| ELDFG-03-80-3C2P-XY-10 | ELDFG-03 High-Response Dir&Flow (E), 80L/min, 3C2P | Yuken | Type: High-Response Direct-Operated Proportional Directional & Flow Control Valve (E series) | Series: ELDFG | Mounting: Sub-plate | Valve Size: 03 | Rated Flow: 80 L/min (@ΔP=1.5 MPa) | Max Pressure: 31.5 MPa | Tank Pressure: 21 MPa | Spool Form: 3C2P (zero-lap) | Control Direction: XY (meter-in/meter-out) | Hysteresis: 0.5% | Coil: 3Ω, rated current max 3 A | Feedback: Spool-position differential transformer (closed loop) | Drive: Use with dedicated external power amplifier | Design No.: 10 |
