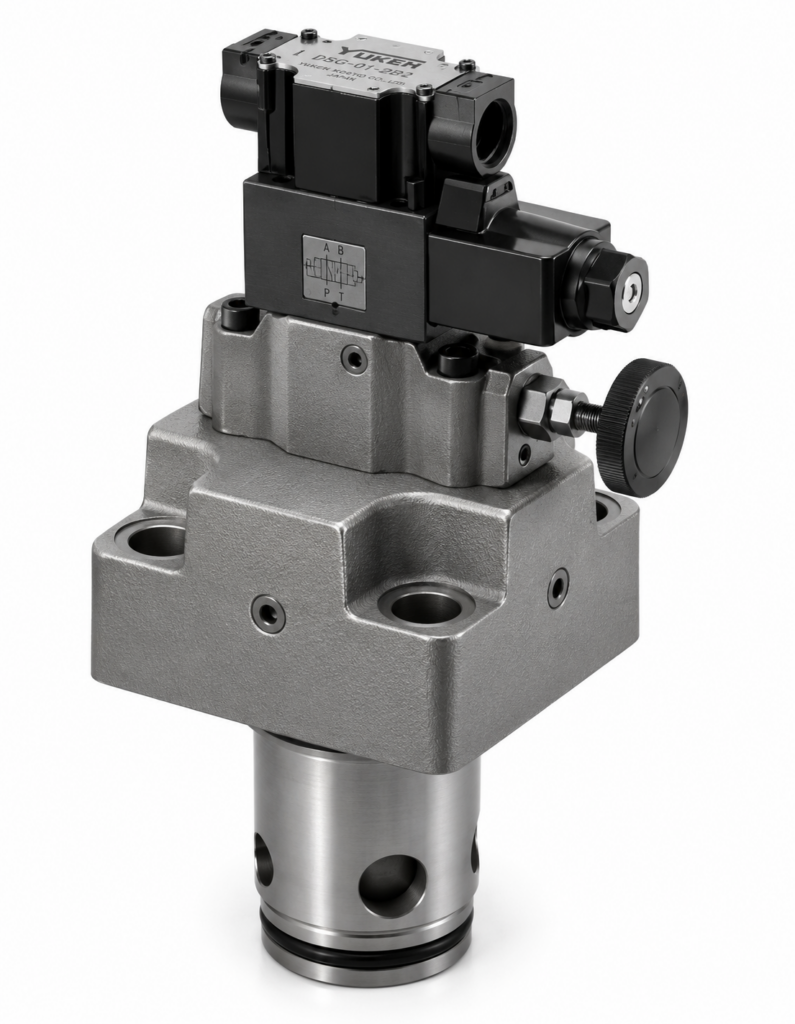

Yuken — LBS Series Solenoid Controlled Relief Logic Valve (ISO 7368 Cartridge)
Family ID: YUK-GLOG-LBS
Solenoid Controlled Relief Logic Valves (LBS). ISO 7368 cartridge with integral solenoid, shock-prevention and pilot relief. Sizes 16/25/32/50, max 31.5 MPa, adj 0.5–31.5 MPa, rated 125–1200 L/min. Cover forms 0–7 (unload, shock-prevention, 2/3-pressure). Abbreviated catalog — details by inquiry.
32 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| LBS-16-0 | Solenoid relief logic, cover 0 (No solenoid valve), size 16 | Yuken | Type: Solenoid relief logic (cover 0: No solenoid valve) | Size: 16 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 125 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-25-0 | Solenoid relief logic, cover 0 (No solenoid valve), size 25 | Yuken | Type: Solenoid relief logic (cover 0: No solenoid valve) | Size: 25 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 250 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-32-0 | Solenoid relief logic, cover 0 (No solenoid valve), size 32 | Yuken | Type: Solenoid relief logic (cover 0: No solenoid valve) | Size: 32 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 500 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-50-0 | Solenoid relief logic, cover 0 (No solenoid valve), size 50 | Yuken | Type: Solenoid relief logic (cover 0: No solenoid valve) | Size: 50 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 1200 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-16-1 | Solenoid relief logic, cover 1 (Unload, normal closed), size 16 | Yuken | Type: Solenoid relief logic (cover 1: Unload, normal closed) | Size: 16 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 125 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-25-1 | Solenoid relief logic, cover 1 (Unload, normal closed), size 25 | Yuken | Type: Solenoid relief logic (cover 1: Unload, normal closed) | Size: 25 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 250 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-32-1 | Solenoid relief logic, cover 1 (Unload, normal closed), size 32 | Yuken | Type: Solenoid relief logic (cover 1: Unload, normal closed) | Size: 32 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 500 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-50-1 | Solenoid relief logic, cover 1 (Unload, normal closed), size 50 | Yuken | Type: Solenoid relief logic (cover 1: Unload, normal closed) | Size: 50 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 1200 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-16-2 | Solenoid relief logic, cover 2 (Unload, normal open), size 16 | Yuken | Type: Solenoid relief logic (cover 2: Unload, normal open) | Size: 16 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 125 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-25-2 | Solenoid relief logic, cover 2 (Unload, normal open), size 25 | Yuken | Type: Solenoid relief logic (cover 2: Unload, normal open) | Size: 25 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 250 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-32-2 | Solenoid relief logic, cover 2 (Unload, normal open), size 32 | Yuken | Type: Solenoid relief logic (cover 2: Unload, normal open) | Size: 32 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 500 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-50-2 | Solenoid relief logic, cover 2 (Unload, normal open), size 50 | Yuken | Type: Solenoid relief logic (cover 2: Unload, normal open) | Size: 50 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 1200 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-16-3 | Solenoid relief logic, cover 3 (Shock-prevention + normal closed), size 16 | Yuken | Type: Solenoid relief logic (cover 3: Shock-prevention + normal closed) | Size: 16 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 125 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-25-3 | Solenoid relief logic, cover 3 (Shock-prevention + normal closed), size 25 | Yuken | Type: Solenoid relief logic (cover 3: Shock-prevention + normal closed) | Size: 25 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 250 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-32-3 | Solenoid relief logic, cover 3 (Shock-prevention + normal closed), size 32 | Yuken | Type: Solenoid relief logic (cover 3: Shock-prevention + normal closed) | Size: 32 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 500 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-50-3 | Solenoid relief logic, cover 3 (Shock-prevention + normal closed), size 50 | Yuken | Type: Solenoid relief logic (cover 3: Shock-prevention + normal closed) | Size: 50 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 1200 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-16-4 | Solenoid relief logic, cover 4 (Shock-prevention + normal open), size 16 | Yuken | Type: Solenoid relief logic (cover 4: Shock-prevention + normal open) | Size: 16 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 125 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-25-4 | Solenoid relief logic, cover 4 (Shock-prevention + normal open), size 25 | Yuken | Type: Solenoid relief logic (cover 4: Shock-prevention + normal open) | Size: 25 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 250 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-32-4 | Solenoid relief logic, cover 4 (Shock-prevention + normal open), size 32 | Yuken | Type: Solenoid relief logic (cover 4: Shock-prevention + normal open) | Size: 32 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 500 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-50-4 | Solenoid relief logic, cover 4 (Shock-prevention + normal open), size 50 | Yuken | Type: Solenoid relief logic (cover 4: Shock-prevention + normal open) | Size: 50 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 1200 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-16-5 | Solenoid relief logic, cover 5 (2-pressure control), size 16 | Yuken | Type: Solenoid relief logic (cover 5: 2-pressure control) | Size: 16 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 125 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-25-5 | Solenoid relief logic, cover 5 (2-pressure control), size 25 | Yuken | Type: Solenoid relief logic (cover 5: 2-pressure control) | Size: 25 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 250 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-32-5 | Solenoid relief logic, cover 5 (2-pressure control), size 32 | Yuken | Type: Solenoid relief logic (cover 5: 2-pressure control) | Size: 32 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 500 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-50-5 | Solenoid relief logic, cover 5 (2-pressure control), size 50 | Yuken | Type: Solenoid relief logic (cover 5: 2-pressure control) | Size: 50 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 1200 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-16-6 | Solenoid relief logic, cover 6 (3-pressure control), size 16 | Yuken | Type: Solenoid relief logic (cover 6: 3-pressure control) | Size: 16 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 125 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-25-6 | Solenoid relief logic, cover 6 (3-pressure control), size 25 | Yuken | Type: Solenoid relief logic (cover 6: 3-pressure control) | Size: 25 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 250 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-32-6 | Solenoid relief logic, cover 6 (3-pressure control), size 32 | Yuken | Type: Solenoid relief logic (cover 6: 3-pressure control) | Size: 32 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 500 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-50-6 | Solenoid relief logic, cover 6 (3-pressure control), size 50 | Yuken | Type: Solenoid relief logic (cover 6: 3-pressure control) | Size: 50 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 1200 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-16-7 | Solenoid relief logic, cover 7 (Unload + 2-pressure control), size 16 | Yuken | Type: Solenoid relief logic (cover 7: Unload + 2-pressure control) | Size: 16 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 125 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-25-7 | Solenoid relief logic, cover 7 (Unload + 2-pressure control), size 25 | Yuken | Type: Solenoid relief logic (cover 7: Unload + 2-pressure control) | Size: 25 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 250 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-32-7 | Solenoid relief logic, cover 7 (Unload + 2-pressure control), size 32 | Yuken | Type: Solenoid relief logic (cover 7: Unload + 2-pressure control) | Size: 32 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 500 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LBS-50-7 | Solenoid relief logic, cover 7 (Unload + 2-pressure control), size 50 | Yuken | Type: Solenoid relief logic (cover 7: Unload + 2-pressure control) | Size: 50 | Pressure Adjustment: 0.5–31.5 MPa | Rated Flow: 1200 L/min | Max Pressure: 31.5 MPa | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | High-vent (RFQ): V option | Note: Abbreviated catalog — detailed specs by inquiry |
